RMS KIT TRI BONNEVILLE T100|THRUXTON 900 06-20 RMS900-107269

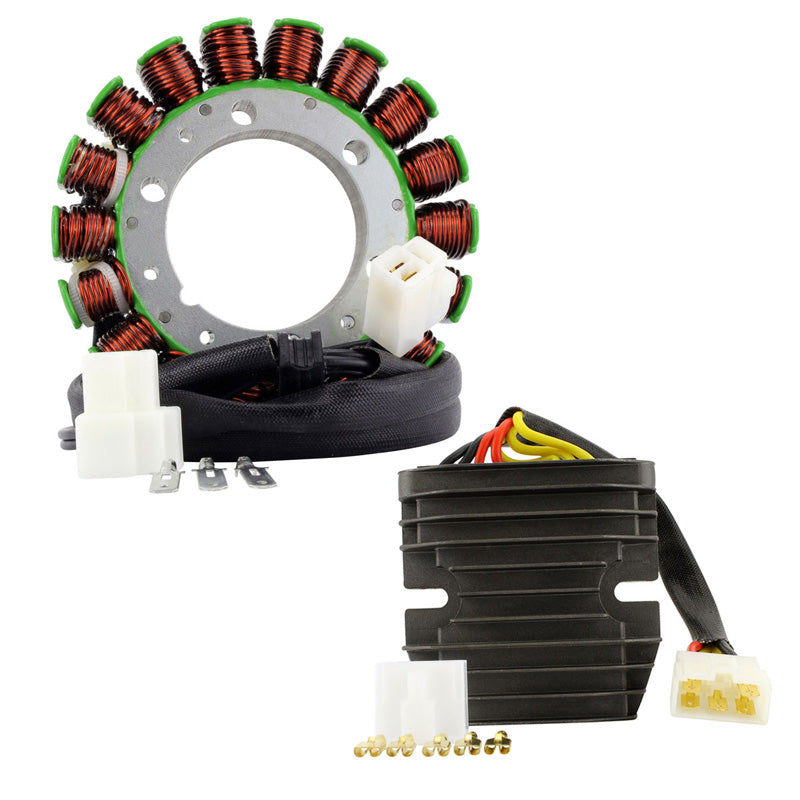

Brand new aftermarket Stator + Mosfet Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All products shipped are tested

    • All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

    We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

stator

  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
Mosfet Regulator

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

Specifications:

Dimensions Stator :

Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 16 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 1140 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Black to Black = 0.4 ohms +-20%

Dimensions Mosfet Regulator :

Width : 90 mm
Length : 90 mm
Height : 30 mm
Wires length : 240 mm
Fixation holes center to center : 80 mm

Other specifications :
Number of plugs : 1
Number of pins : 5
Number of wires : 5
Minimum Charging Voltage : 14.5V +- 0.5V
Maximum Charging Current : 50A/500W
Open Circuit Voltage : 15V
Operation Temperature : -20? C to 85? C

Warning:

Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note: that there are two possible regulators and stators for the following models. Bonneville from 2017 to 2020 This kit will only fit on Bonneville with a VIN HIGHER than 513325. Thruxton fr
