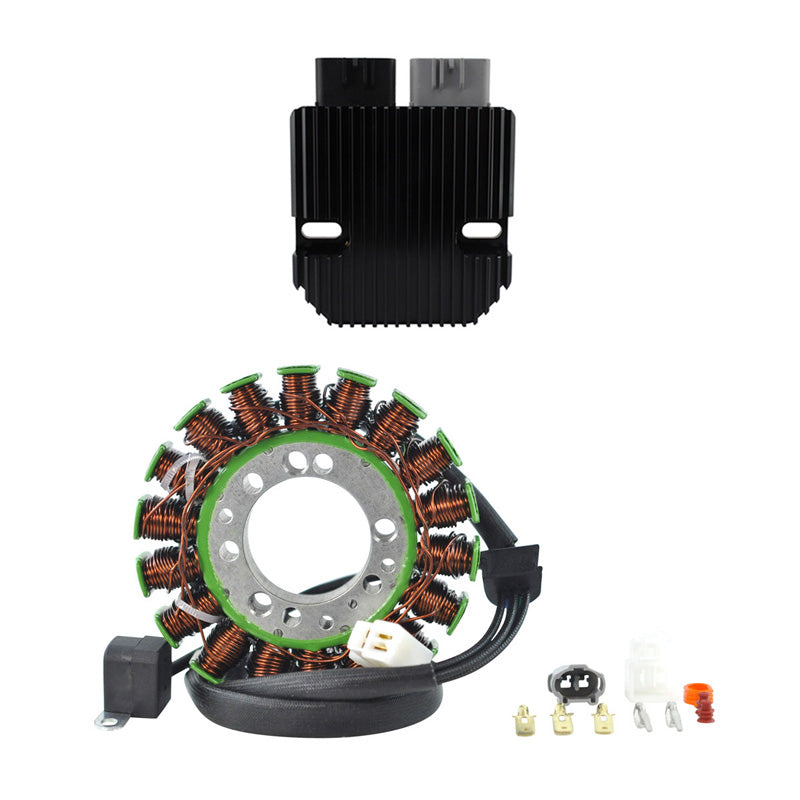

RMS KIT TRIUMPH STREET TRIPLE 675|765 06-20 RMS020-108026

Brand new RMSTATOR REVOLT Voltage Regulator

Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors ’ products on the market

SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market to considerably improve the rectifier reliability.

DISSIPATE HEAT 45% FASTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

PROUDLY MADE IN USA
REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards. Say farewell to failures due to uneven quality control processes.

LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.

Join REVOLT, the new era of voltage regulation!

Specifications:

Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20 ° C to 85 °C

Dimensions :
Interior diameter : 115 mm
Exterior diameter : 42 mm
Thickness : 21 mm
Length of wires stator to grommet : 180 mm
Length of wires grommet to plug : 140 mm
Length of pickup coil's wire to grommet : 105 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Between each Black = 0.5 ohms +/-20%
Pickup : Green to Blue = 230 ohms +/-20%
