RMS KIT YAM BIG BEAR|MOTO-4 |WARRIOR 350 88-95 RM01019G

RMS KIT YAM BIG BEAR|MOTO-4 |WARRIOR 350 88-95 RM01019G

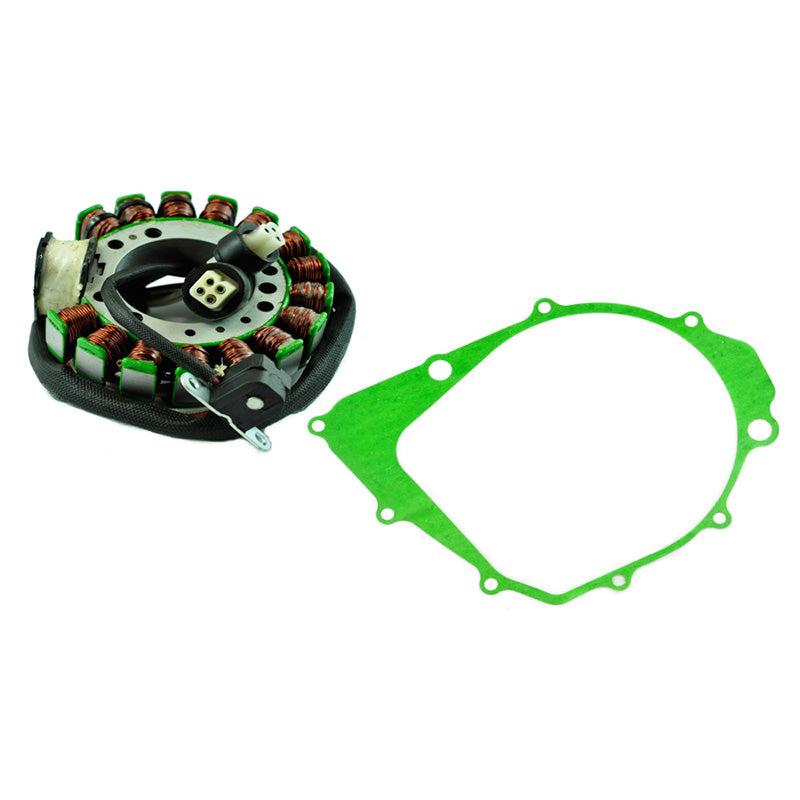

Brand new aftermarket stator + crankcase cover gasket.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest-grade lamination materials.
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick-up pulsar coil included.
• Connector included.
• Rubber grommet included.
• Stator crankcase cover gasket included.
• All products shipped are tested.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Stator dimensions:

• Interior diameter: 53 mm
• Exterior diameter: 115 mm
• Thickness: 13 mm
• Length of wires stator to grommet: 110 mm
• Length of wires grommet to plug: 500 mm
• Length of pick-up coil wire to grommet: 130 mm

Other specifications:

• Number of wires: 7
• Number of plugs: 2
• Number of pins: 7

Wire to wire resistance:

• Alternator: White between each white = 0.4 ohms +/-20%
• Pick-up: White to red = 570 ohms +/-20%
• Source: Brown to green = 315 ohms +/-20%
