RMS KIT YAM GRIZZLY 550/700 07-15 RMS900-106275

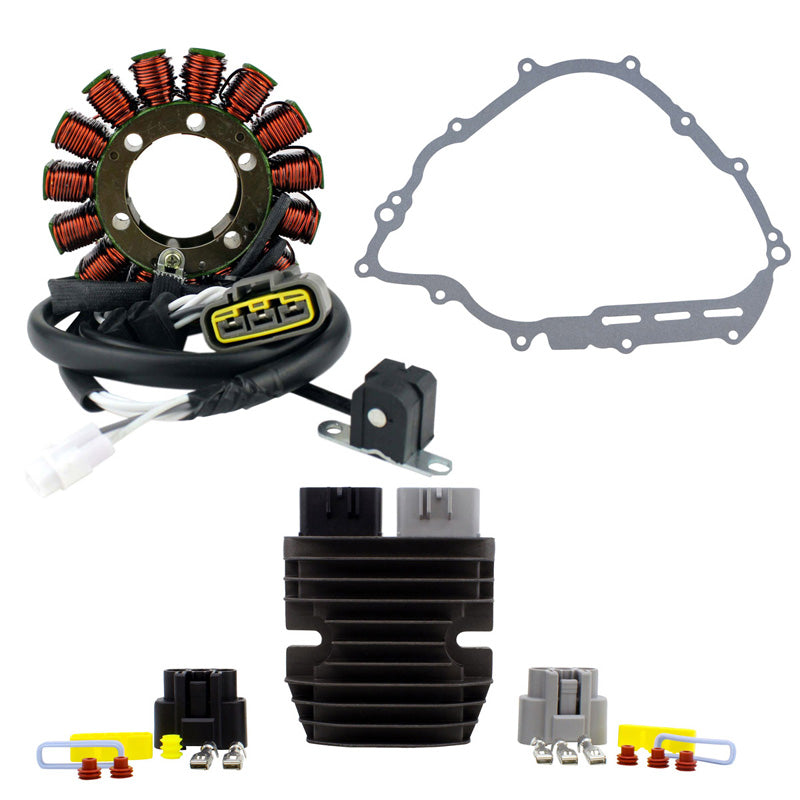

Brand new aftermarket Stator + Crankcase Cover Gasket + Mosfet Voltage Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Stator crankcase cover gasket included
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included

Mosfet Voltage Regulator

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts.If there is any doubt, have the battery load tested or replaced.

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.


Extended battery life

Extends the battery ’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Specifications:

Dimensions Stator
Interior diameter : 45 mm
Exterior diameter : 106 mm
Thickness : 27 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 550 mm & 1100 mm
Length of pickup coil's wire to grommet : 80 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +/-20%
Alternator : White to Ground = 0.L on Display
Pickup : White to Grey = 500 ohms +/-20%

Dimensions Mosfet Voltage Regulator
Width : 95 mm
Length : 30 mm
Height: 110 mm
Fixation holes center to center :78 mm

Other specifications :
Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20 ° to 85 °
