RMS KIT YAM KODIAK|BIG BEAR 350/400 93-01 RM22862

RMS KIT YAM KODIAK|BIG BEAR 350/400 93-01 RM22862

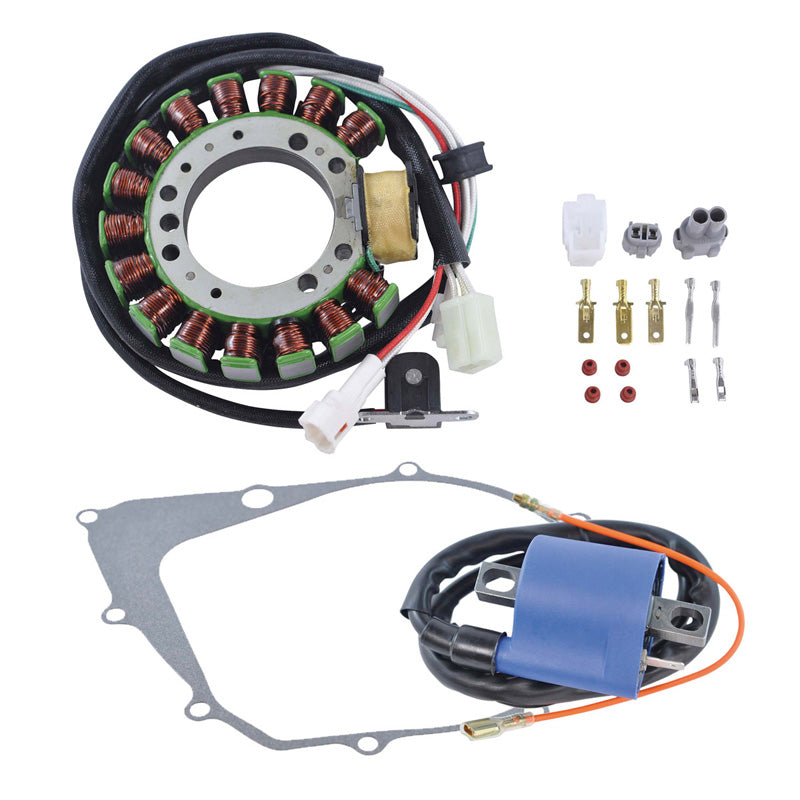

Brand new kit stator + external ignition coil + crankcase cover gasket.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• All shipped products are tested.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Stator

• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.
• Connector included.
• Rubber grommet included.
• Crankcase cover gasket included.

External Ignition Coil

• You must re-install your OEM spark plug cap(s).
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install.
• Highest grade of lamination materials.

Specifications:

Stator dimensions

• Interior diameter: 53 mm
• Exterior diameter: 115 mm
• Thickness: 14 mm
• Length of wires stator to grommet: 150 mm
• Length of wires grommet to plug: 420 mm
• Length of pick-up coil wire to grommet: 300 mm

Other specifications:

• Number of wires: 7
• Number of plugs: 3
• Number of pins: 7

Wire to wire resistance:

• Alternator: White between each white = 0.4 ohms +/-20%
• Pick-up: White to red = 450 ohms +/-20%
• Source: Green to brown = 320 ohms +/-20%

External ignition coil

• Fixation holes centre to centre: 55 mm
