RMS KIT YAM MOTO 4|TERRAPRO 350 87-89 RM01035G

RMS KIT YAM MOTO 4|TERRAPRO 350 87-89 RM01035G

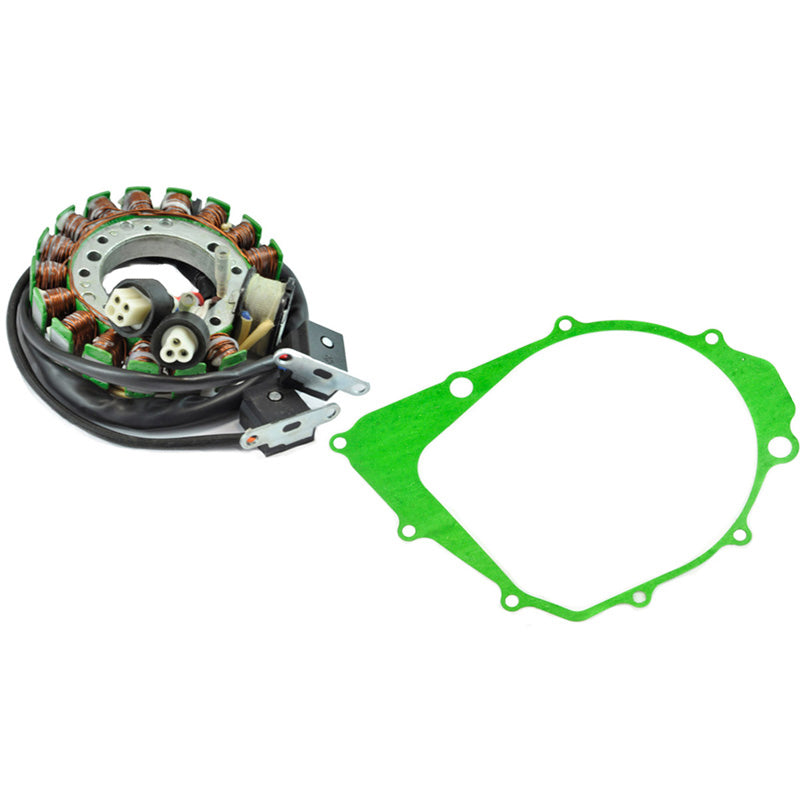

Brand new kit stator + stator crankcase cover gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Gasket included
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions Stator :
Interior diameter : 52mm
Exterior diameter : 115mm
Thickness : 40mm
Length of wires stator to grommet : 300mm
Length of wires grommet to plug : 490mm
Length of pickup coil's wire to grommet : 295mm

Other specifications :
Number of wires : 9
Number of plugs : 4
Number of pins : 8

Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : Blue to Red = 215ohms +/-20%
Pickup : Yellow to White = 215ohms +/-20%
Source : Green to Brown = 300ohms +/-20%
