RMS KIT YAM RAPTOR 350|BIG BEAR 400 00-13 RM01017G

RMS KIT YAM RAPTOR 350|BIG BEAR 400 00-13 RM01017G

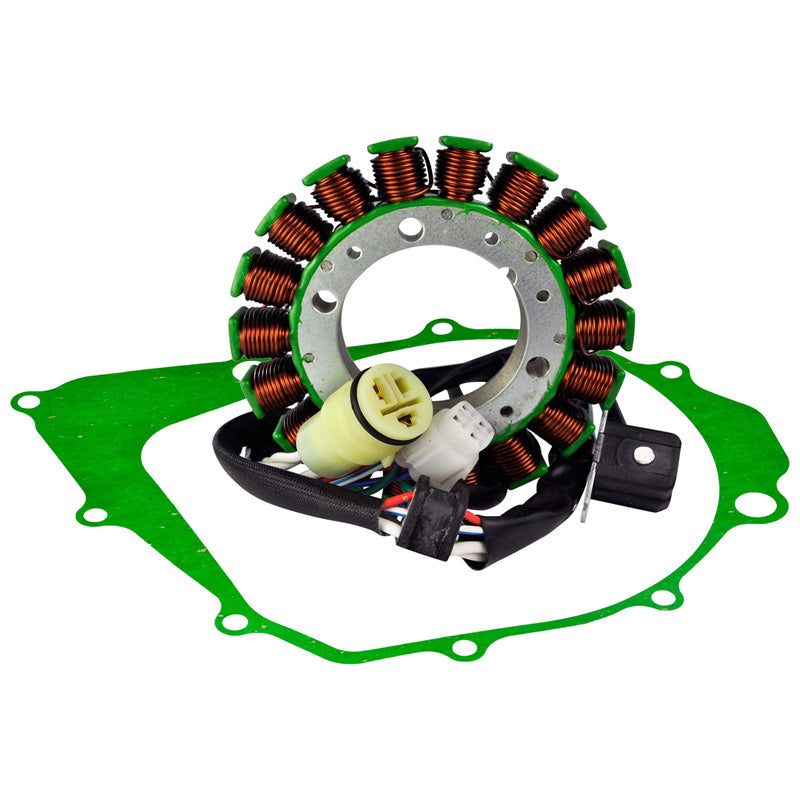

Brand new high ourput stator 300 watts and gasket kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Gasket included
• All product shipped are tested

At RMSTATOR, we believe that proper installation guarantees a longer lifetime. This is why we include, at no extra charge, a stator cover gasket and a dielectric grease tube.
Consult the connector circle of death for more information on dielectric grease.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Number of wires : 7
Number of terminals : 7
Alternator : White between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up : Green to Blue = 450 ohms+/-20%
Position Sensor : Orange to White/Blue = 0.2 ohms+/-20%
Interior Diameter : 53mm
Exterior Diameter : 115mm
Thickness: 24mm
