RMS KIT YAM RAPTOR|BIG BEAR 350/400 00-13 RM22809

RMS KIT YAM RAPTOR|BIG BEAR 350/400 00-13 RM22809

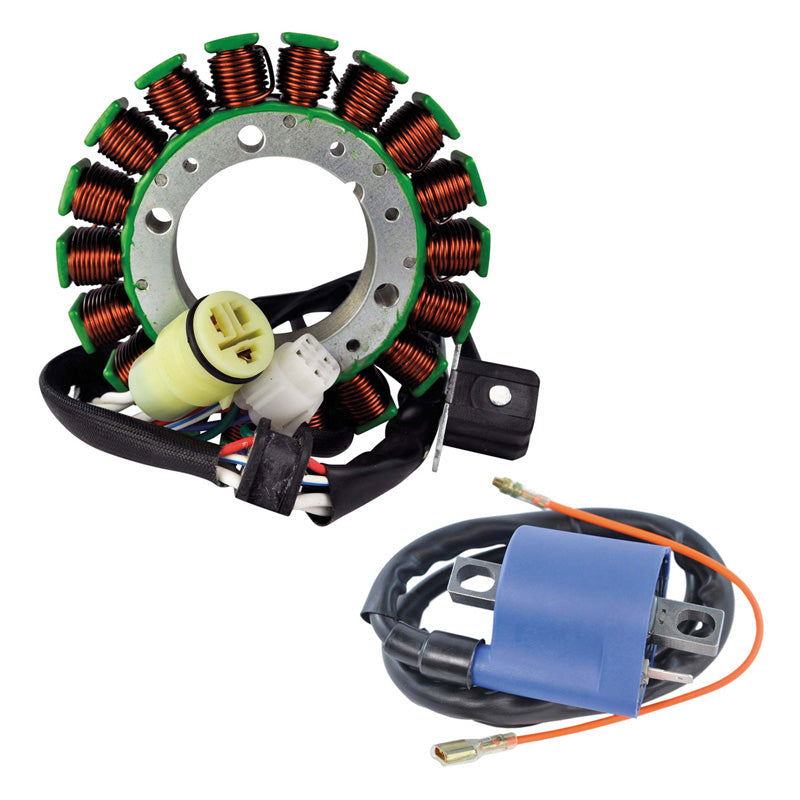

Brand New Kit High Output Stator + External Ignition Coil

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested
• All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

High Output Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

External Ignition Coil

• You must re-install your OEM spark plug cap(s)
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
• Highest grade of lamination materials

Specifications:

Dimensions Stator :
Interior diameter: 53 mm
Exterior diameter: 114 mm
Thickness: 13 mm

Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7

Wire to wire resistance:
Alternator : White between each White = 0.4 ohms+/-20%
Pickup: Green to Blue = 518 ohms =+/-20%
Position Sensor: Red to White/Blue = 0.1 ohms+/-20%

Dimensions External Ignition Coil :
Distance between fixation holes: 60 mm
