RMS KIT YAM V STAR 1100 XVS1100 99-02 RM23021

RMS KIT YAM V STAR 1100 XVS1100 99-02 RM23021

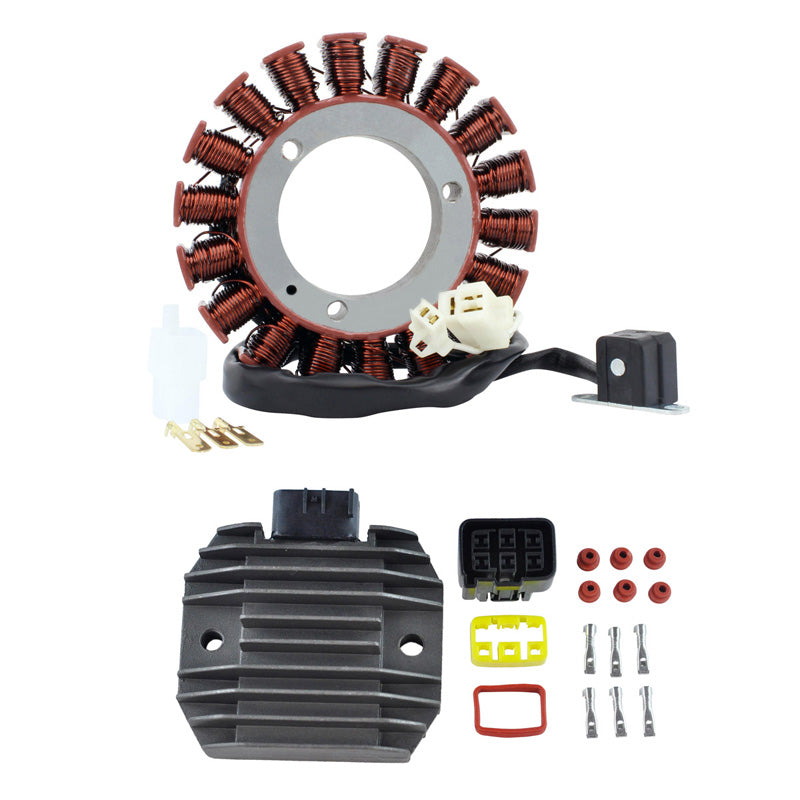

Brand New Kit Stator + Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Brand new aftermarket stator

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Brand new aftermarket voltage regulator rectifier

• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Stator
Dimensions :
Interior diameter : 58 mm
Exterior diameter : 130 mm
Thickness : 18 mm

Other specifications :
Number of wires: 3
Number of plugs: 2
Number of pins: 3

Wire to wire resistance :
Alternator: White between each White = 0.4 ohms +/-20%
Alternator: White to Ground = 0.L
Pickup: White to Black = 190 ohms +/-20%

Brand new aftermarket voltage regulator rectifier
Dimensions:
Width: 89 mm
Length: 91 mm
Height: 27 mm
Fixation holes center to center: 65 mm

Other specifications:
Number of plugs: 1
Number of pins: 6
