RMS KIT YAM WARRIOR|MOTO 4|BIG BEAR 350 90-95 RM22863

RMS KIT YAM WARRIOR|MOTO 4|BIG BEAR 350 90-95 RM22863

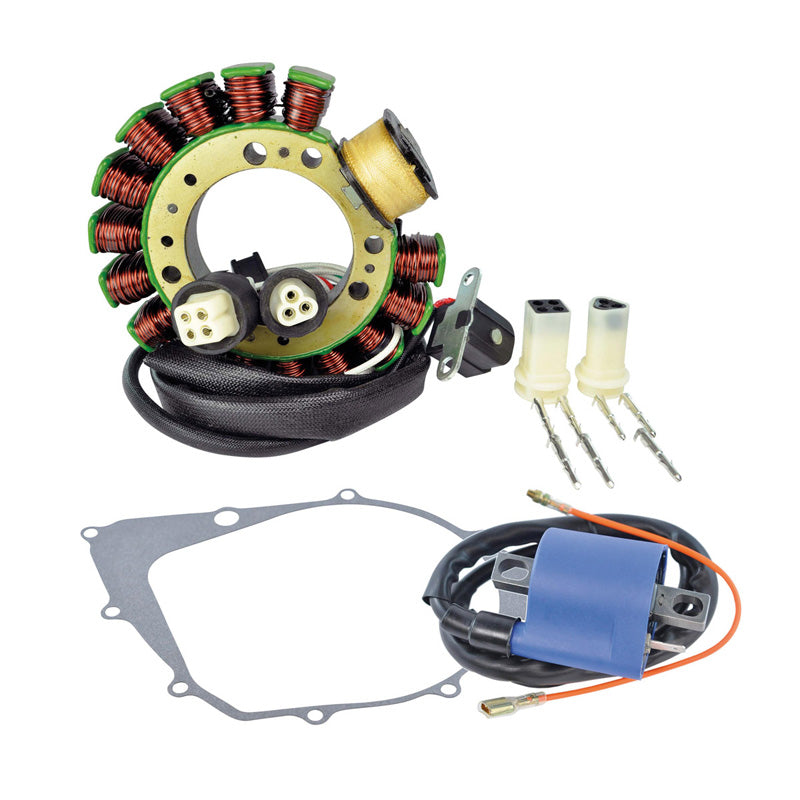

Brand New Kit Stator + External Ignition Coil + Crankcase Cover Gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator:

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

External Ignition Coil

• You must re-install your OEM spark plug cap(s)
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
• Highest grade of lamination materials

Specifications:

Stator
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 13mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 500mm
Length of pickup coil's wire to grommet : 130mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : White to Red = 570ohms +/-20%
Source : Brown to Green = 315ohms +/-20%

External ignition coil
Bracket to bracket center 55 mm
