RMS KIT YAM YFM 200 225 250 MOTO 4 86-91 RM22903

RMS KIT YAM YFM 200 225 250 MOTO 4 86-91 RM22903

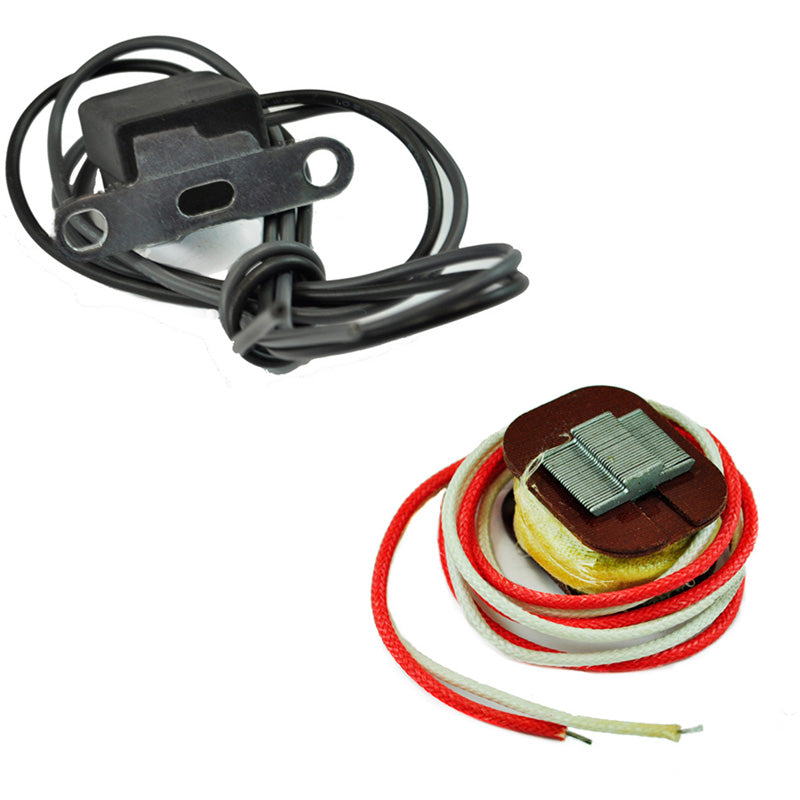

Kit Brand New Pick Up Pulsar Coil + Ignition Source Coil

• Often unavailable from the OEM manufacturer
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

We offer a brand new ignition source coil for you to repair your stator.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees celcius
• Works with all other OEM parts

Brand new pick up coil 200 ohms

• We offer a brand new pickup/pulsar coil for you to repair your stator

Specifications:

Ignition Source Coil Dimensions:
Height: 27 mm
Length: 35 mm
Width: 30 mm

Other Specifications:
Number of wires: 2
Number of terminals: 2
Wires length: 500 mm

Wire to Wire Resistance:
Red to White : 315 ohms +/-20%

Pickup Pulsar Coil Dimensions:
Height: 19 mm
Length: 23 mm
Width: 20 mm
Bracket center to center: 35 mm
Wires length : 915 mm

Other specifications:
Number of wires : 2
Number of pins: 2

Wire to wire resistance:
Black to Grey = 200 ohms+/-20%
