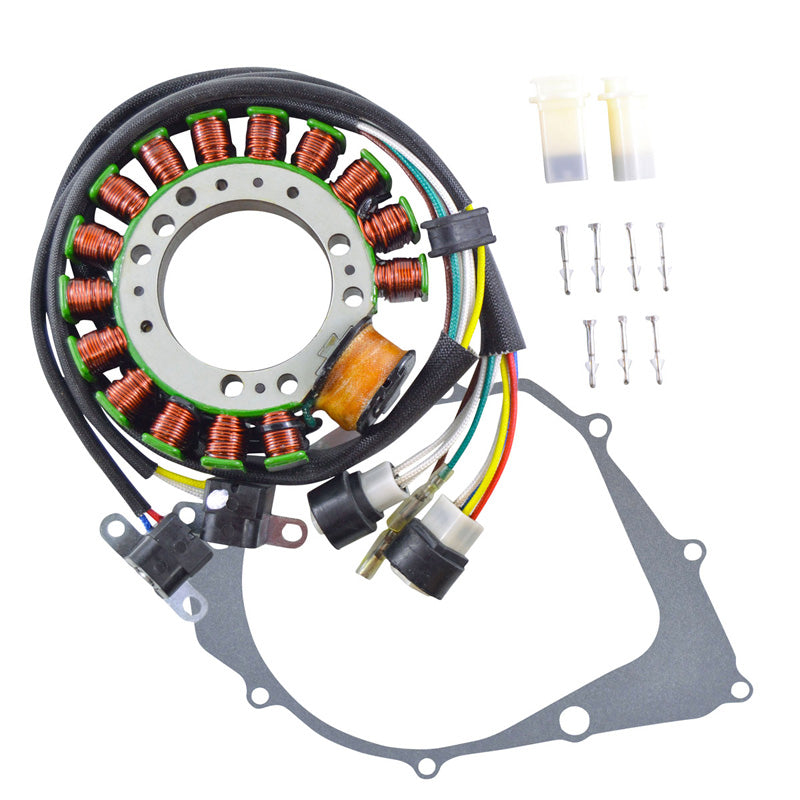

RMS KIT YAM YFM 350 BIG BEAR|WARRIOR 87-89 RM01020G

Brand new kit stator + crankcase cover gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All product shipped are tested

(Note: for some models you will need to reinstall one oem connector)

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions Stator :
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 15 mm
Length of wires stator to grommet: 200mm
Length of wires grommet to plug: 475mm
Length of wires pickup coil's wire to grommet: 220mm

Other specifications:
Number of wires : 9
Number of plugs: 4
Number of terminals : 9

Wire to wire resistance:
Alternator : White between each White = 0.4 ohms+/-20%
Pick up 1 : Red to Blue = 221 ohms+/-20%
Pick up 2 :Yellow to White = 217 ohms+/-20%
Source : Brown to Green = 315 ohms+/-20%
