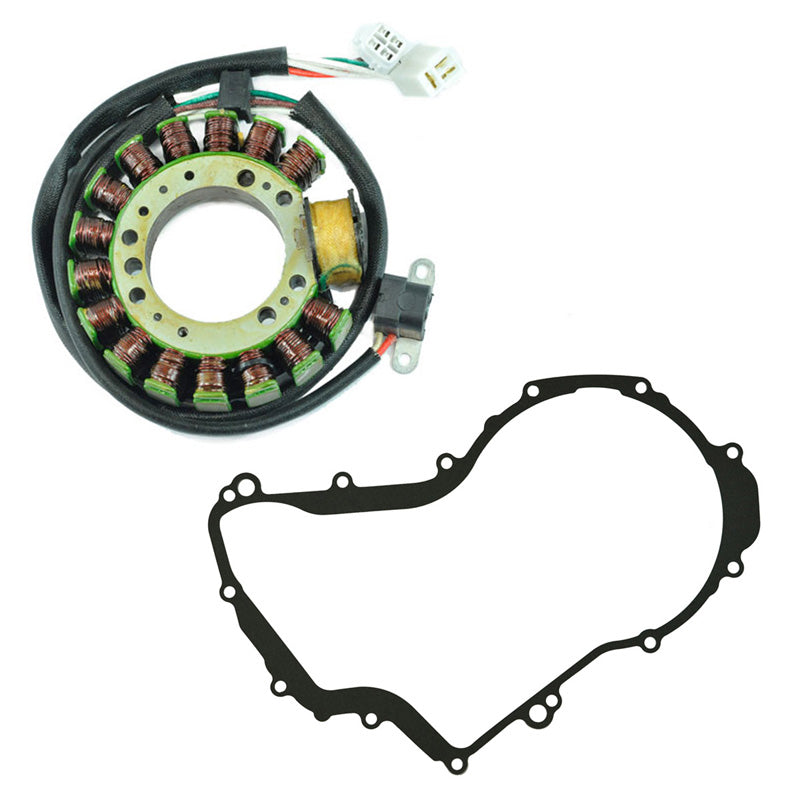

RMS KIT YAM YFM 350 BIG BEAR|WOLVERINE 97-01 RM22605

Brand new kit aftermarket stator + crankcase cover gasket.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials.
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Stator crankcase cover gasket included.
• Pick up pulsar coil included.
• Connector included.
• Rubber grommet included.
• All products shipped are tested.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Stator dimensions:

• Interior diameter: 54 mm
• Exterior diameter: 115 mm
• Thickness: 14 mm
• Length of wires stator to grommet: 135 mm
• Length of wires grommet to plug: 480 mm
• Length of pick-up coil wire to grommet: 210 mm

Other specifications:

• Number of wires: 7
• Number of plugs: 1
• Number of pins: 7

Wire to wire resistance:

• Alternator: White between each white = 0.4 ohms +/-20%
• Pick-up: White to red = 570 ohms +/-20%
• Source: Green to brown = 318 ohms +/-20%
