RMS KIT YAM YFM 350 WARRIOR 90-95 RM22813

RMS KIT YAM YFM 350 WARRIOR 90-95 RM22813

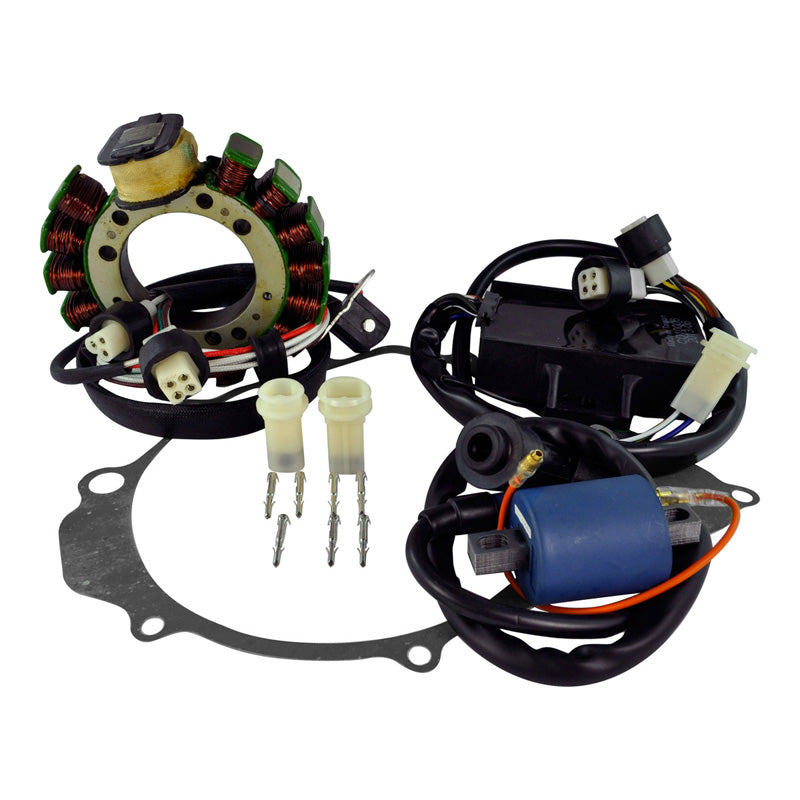

Brand New Kit Stator + PeakRPM CDI Box + External Ignition Coil + Crankcase Cover Gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator:

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

PeakRPM CDI Box:

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

External Ignition Coil:

• Highest grade of lamination materials
• Spark plug cap(s) included

Specifications:

Stator
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 13mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 500mm
Length of pickup coil's wire to grommet : 130mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : White to Red = 570ohms +/-20%
Source : Brown to Green = 315ohms +/-20%

CDI Box HP
Number of wires : 13
Number of terminals : 13
Bracket center to center: 85mm
Width: 25 mm
Length: 90 mm
The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

External ignition coil
Bracket to bracket center 55 mm
