RMS KIT YAM YFM 350 WARRIOR 97-01 RM22420

RMS KIT YAM YFM 350 WARRIOR 97-01 RM22420

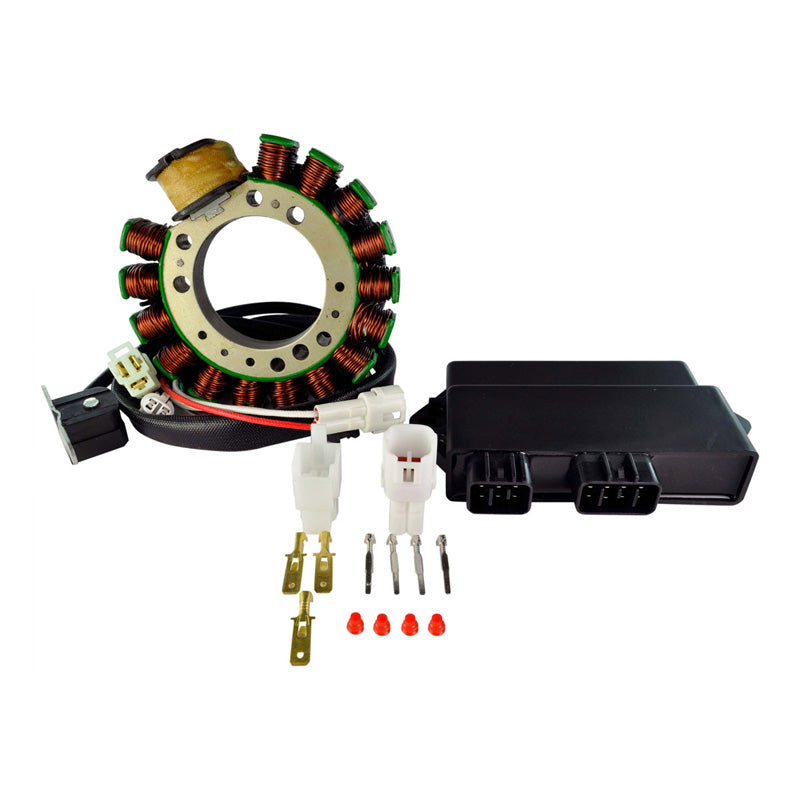

Brand New Kit Stator + PeakRPM CDI Box

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Stator

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

PeakRPM CDI Box

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components.
• The Quality exceeds the OEM equipment

Specifications:

Stator
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 14mm
Length of wires stator to grommet : 150mm
Length of wires grommet to plug : 420mm
Length of pickup coil's wire to grommet : 300mm

Other specifications :
Number of wires : 7
Number of plugs : 3
Number of pins : 7

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : White to Red = 450 ohms +/-20%
Source : Green to Brown = 320 ohms +/-20%

HP CDI Box
Height: 27mm
Length: 142mm
Width: 95mm

Other specifications:
Number of plugs: 2
Number of pins: 14

The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.
