RMS KIT YAM YFM 350 WARRIOR 97-01 RM22811

RMS KIT YAM YFM 350 WARRIOR 97-01 RM22811

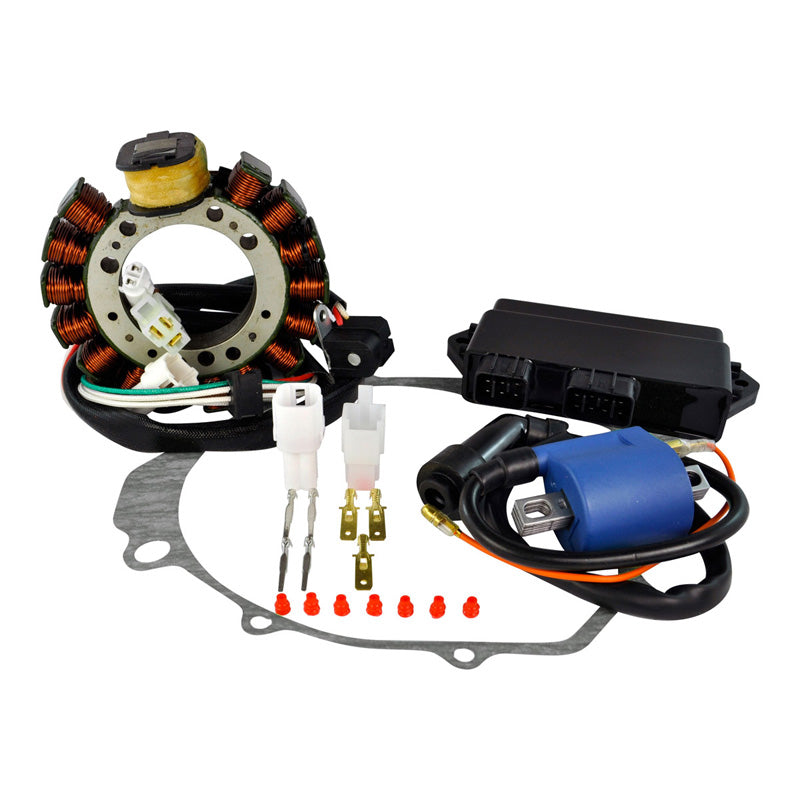

Brand New Kit Stator + PeakRPM CDI Box + External Ignition Coil + Crankcase Cover Gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Crankcase cover gasket included

PeakRPM CDI Box

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

External Ignition Coil

• Highest grade of lamination materials
• The Quality exceeds the OEM equipment
• Spark plug cap(s) included

Specifications:

Dimensions Stator
Dimensions :
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 14mm
Length of wires stator to grommet : 150mm
Length of wires grommet to plug : 420mm
Length of pickup coil's wire to grommet : 300mm

Other specifications :
Number of wires : 7
Number of plugs : 3
Number of pins : 7

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : White to Red = 450 ohms +/-20%
Source : Green to Brown = 320 ohms +/-20%

CDI Box
Height: 27mm
Length: 142mm
Width: 95mm

Other specifications:
Number of plugs: 2
Number of pins: 14

External ignition coil
Fixation holes center to center: 55 mm
