RMS KIT YAM YFM 350 WARRIOR|BIG BEAR 87-89 RM22864

RMS KIT YAM YFM 350 WARRIOR|BIG BEAR 87-89 RM22864

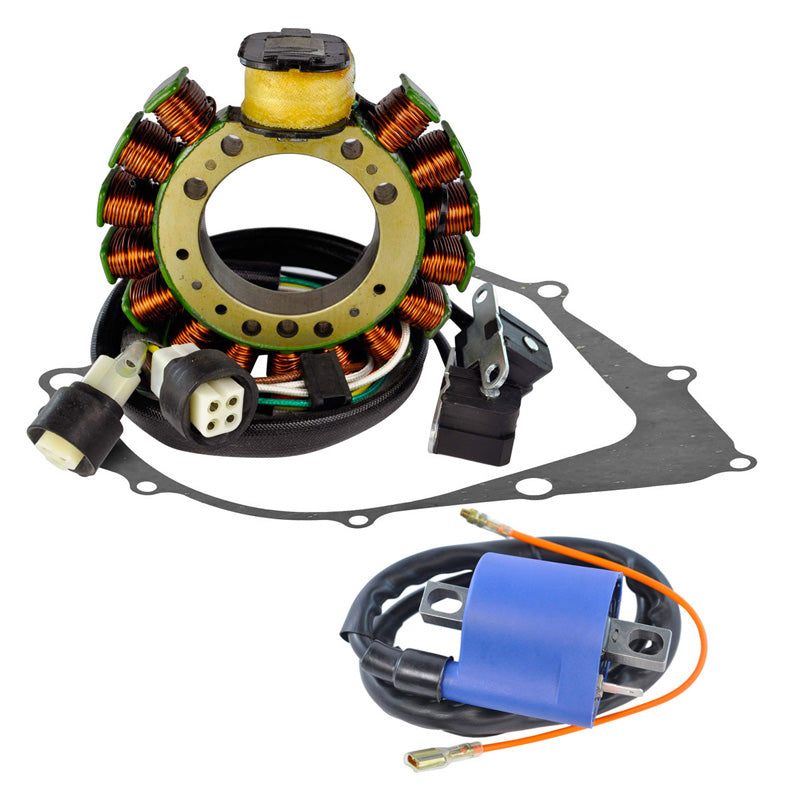

Brand new Stator + External ignition coil + Crankcase Cover Gasket Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

If your old parts are defective, RM Stator offer replacements parts of high qualities at a fraction of the cost of genuine parts.

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Crankcase cover gasket included

External Ignition Coil

• You must re-install your OEM spark plug cap(s)
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
• Highest grade of lamination materials

Specifications:

Stator
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires stator to grommet: 200mm
Length of wires grommet to plug: 475mm
Length of wires pickup coil's wire to grommet: 220mm

Other specifications:
Number of wires : 9
Number of plugs: 4
Number of terminals : 9

Wire to wire resistance:
Alternator : White between each White = 0.4 ohms+/-20%
Pick up : Red to Blue = 221 ohms+/-20%
Pick up :Yellow to White = 217 ohms+/-20%
Source : Brown to Green = 315 ohms+/-20%
