RMS KIT YAM YFM 350 WARRIOR|RAPTOR 02-13 RM22861

RMS KIT YAM YFM 350 WARRIOR|RAPTOR 02-13 RM22861

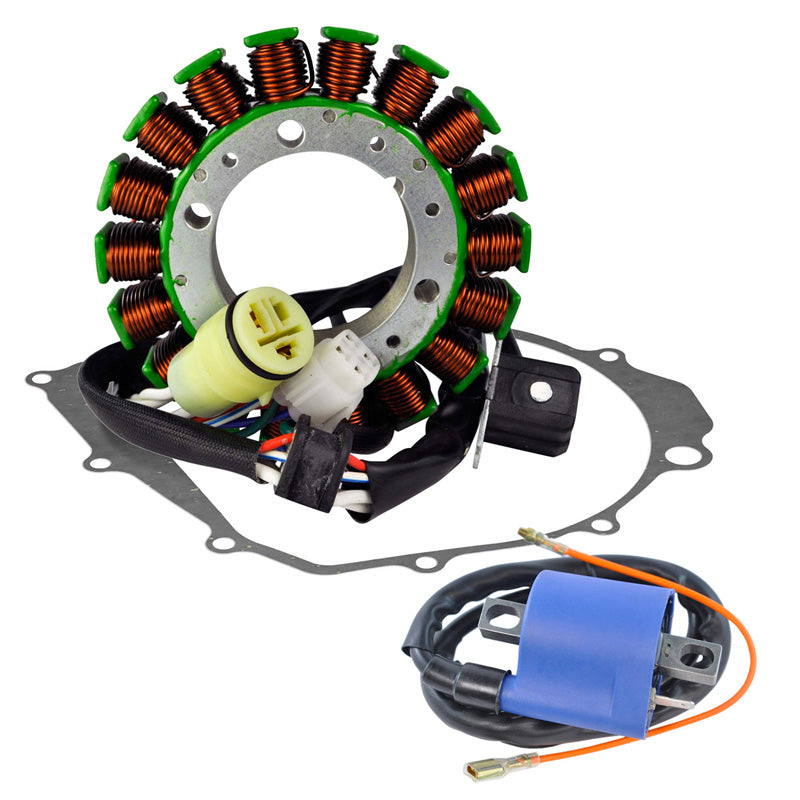

Brand new kit stator + external ignition coil + crankcase cover gasket.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• All shipped products are tested.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Stator

• Highest-grade of lamination materials.
• Highest-grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.
• Connector included.
• Rubber grommet included.
• Crankcase cover gasket included.

External ignition coil

• Highest-grade of lamination materials.
• The quality exceeds the OEM equipment.
• Spark plug cap(s) included.

Specifications:

Stator

• Interior diameter: 53 mm
• Exterior diameter: 114 mm
• Thickness: 13 mm

Other specifications:

• Number of wires: 7
• Number of plugs: 2
• Number of pins: 7

Wire to wire resistance:

• Alternator: White between each white = 0.4 ohms+/-20%
• Pickup: Green to blue = 518 ohms =+/-20%
• Position sensor: Red to white/blue = 0.1 ohms+/-20%



External ignition coil
Bracket to bracket centre: 55 mm
