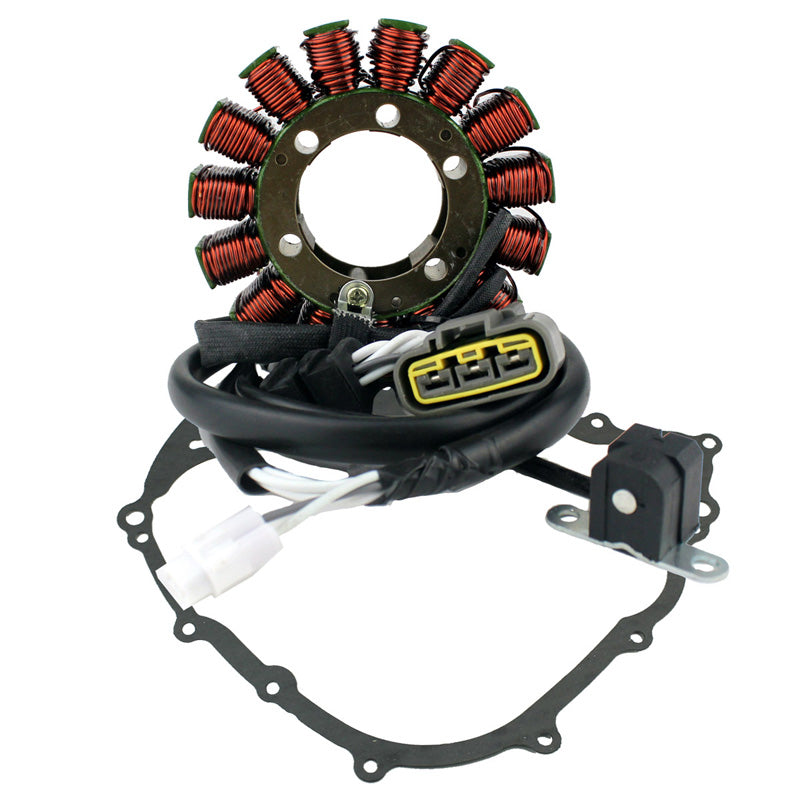

RMS KIT YAM YFM 550 09-14|YFM 700 GRIZZLY 07-15 RM01004G

Brand new aftermarket generator stator + crankcase cover gasket.

• Stator crankcase cover gasket included.
• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick-up pulsar coil included.
• Connector included.
• Rubber grommet included.
• All products shipped are tested.

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator dimensions:

• Interior diameter: 45 mm
• Exterior diameter: 106 mm
• Thickness: 27 mm
• Length of wires, stator to grommet: 100 mm
• Length of wires, grommet to plug: 550 mm and 1100 mm
• Length of pick-up coil wire to grommet: 80 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5

Wire to wire resistance:

• Alternator: White between each white = 0.4 ohms +/-20%
• Pick-up: White to grey = 500 ohms +/-20%
