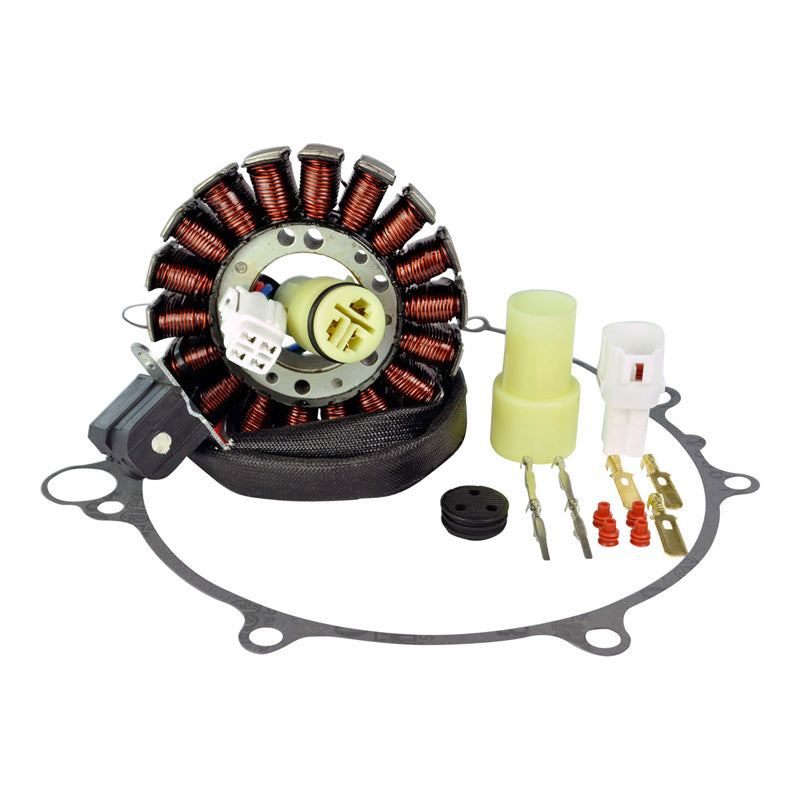

RMS KIT YAM YFM 660 R RAPTOR 01-05 RM01013G

Brand New Kit High Output Stator 300 W + Crankcase Cover Gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Dimensions Stator:
Interior diameter : 34 mm
Exterior diameter : 94 mm
Thickness : 13 mm
Length of wires stator to grommet : 180 mm
Length of wires grommet to plug : 220 mm
Length of pickup coil's wire to grommet : 100 mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : Blue to Green = 450 ohms +/-20%
Source : Black to Red = 0.1 ohms +/-20%
