RMS KIT YAM YFM 660 RAPTOR 02-03 RM22832

RMS KIT YAM YFM 660 RAPTOR 02-03 RM22832

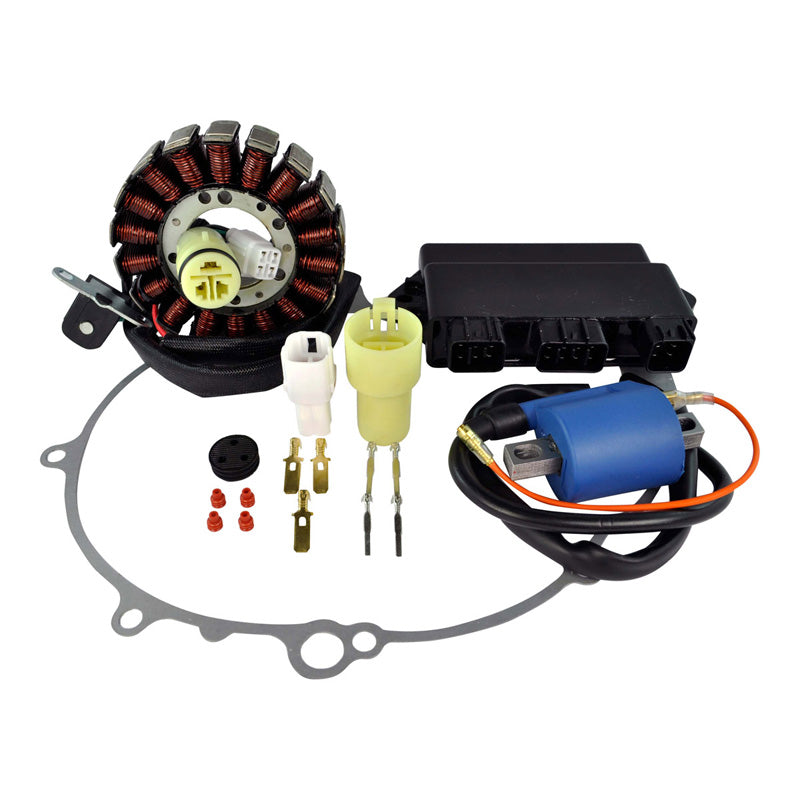

Brand New Kit High Output Stator + PeakRPM CDI Box + External Ignition Coil + Crankcase Cover Gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested
• All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

High Output Stator 300W:

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

PeakRPM CDI Box

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

External Ignition Coil

• You must re-install your OEM spark plug cap(s)
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
• Highest grade of lamination materials

Specifications:

Dimensions Stator :
Interior diameter: 34 mm
Exterior diameter: 94 mm
Thickness: 13 mm

Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7

Wire to wire resistance:
Alternator: White between each White = 0.4 ohms +/-20%
Pickup: Blue to Green = 450 ohms =+/-20%
Position Sensor: Black to Red = 0.1 ohms+/-20%

Dimensions CDI Box :
Height: 26mm
Length: 109mm
Width: 78mm
Distance between fixation holes: 125mm

Other specifications:
Number of plugs: 3
Number of pins: 18

Dimensions External Ignition Coil :
Distance between fixation holes: 60 mm
