RMS KIT YAM YFS 200 BLASTER 88-06 RMS900-107872

Brand new Kit Magneto Flywheel + Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

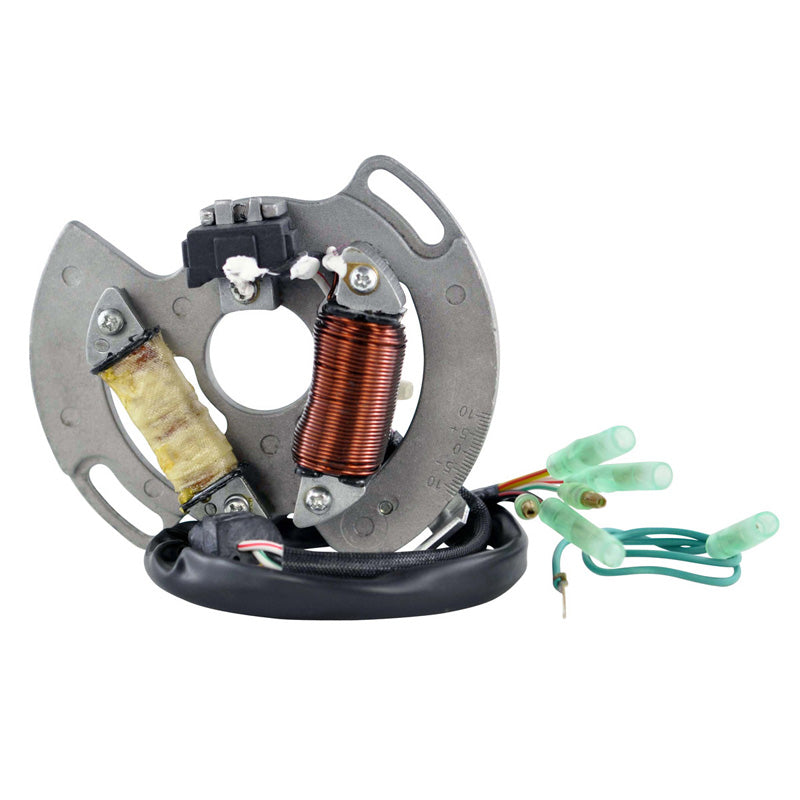

Brand new stator
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector, pick up pulsar coil, rubber grommet included

Magneto Flywheel Rotor

Brand new Magneto Flywheel Rotor

• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

Specifications:

Stator

Dimensions:
Interior diameter: 27 mm
Exterior diameter: 79 mm
Thickness: 13 mm
Length of wires stator to grommet: 80 mm
Length of wires grommet to plug: 450 mm

Other specifications:
Number of wires: 5
Number of plugs: 5
Number of pins: 5
Number of poles: 2
Wire to wire resistance:
Alternator: Yellow/Red to Black = 0.6 ohms +-20%
Black Wire is Grounded
Pickup: White/Red to Black = 24 ohms +-20%
Source: Black/Red to Green/White = 230 ohms +-20%

Magneto Flywheel Rotor

Dimensions:
Exterior Diameter: 118 mm
Interior Diameter: 84.5 mm
Interior Diameter Center Housing: 19 mm
Exterior Diameter Center Housing: 26 mm
Thickness (exterior): 45 mm
Thickness (interior): 40 mm
