RMS KIT YAM YFS 200 BLASTER 88 90-02 RM22410

RMS KIT YAM YFS 200 BLASTER 88 90-02 RM22410

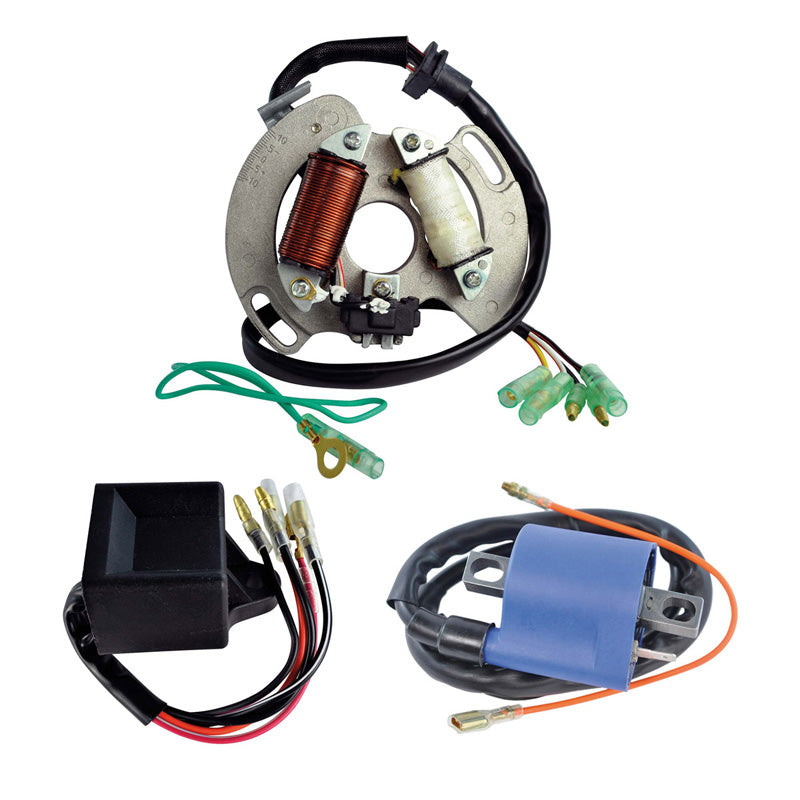

Brand New Kit High Output Stator + PeakRPM CDI Box + External Ignition Coil

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested
• All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

High Output Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Adjustable timing plate +/- 10 degrees included
• 75 watts output so you can run brighter lights

CDI Box PeakRPM

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

External Ignition Coil

• You must re-install your OEM spark plug cap(s)
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
• Highest grade of lamination materials

Specifications:

Dimensions Stator :
Interior diameter : 25mm
Exterior diameter : 120mm
Thickness : 8mm
Length of wires stator to grommet : 75mm
Length of wires grommet to plug : 400mm
Length of pickup coil's wire to grommet : 135mm

Other specifications :
Number of wires : 5
Number of plugs : 5
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow/Red to Black = 0.4ohms +/-20%
Pickup : White/Red to Black = 20ohms +/-20%
Source : Black/Red to Green/White = 280ohms +/-20%

Dimensions CDI Box :
Height: 40mm
Length: 52mm
Width: 30mm

Other specifications:
Number of plugs: 5
Number of pins: 5

Dimensions External Ignition Coil :
Distance between fixation holes: 60 mm
