RMS KIT YAM YFZ 350 BANSHEE 87-94 RM22847

RMS KIT YAM YFZ 350 BANSHEE 87-94 RM22847

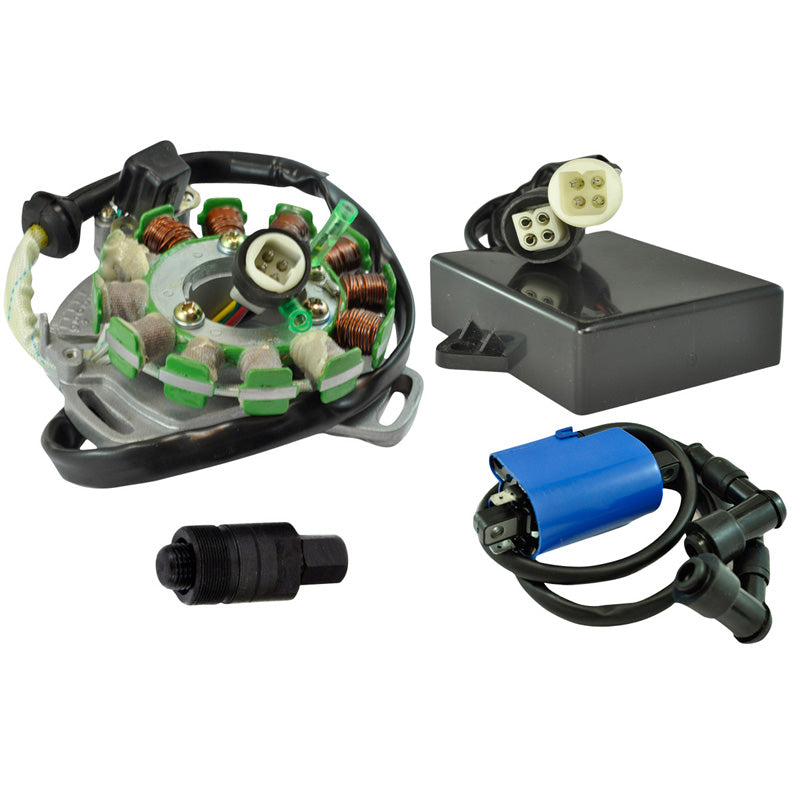

Brand new kit High Output Stator + External ignition Coil + Flywheel Puller

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

High Output stator assembly 100 watts

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included

External Ignition Coil

• Highest grade of lamination materials
• Spark plug cap(s) included

Brand new aftermarket PeakRPM CDI box

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

Flywheel Puller

• 27 MM x 1.0 Left hand male

PLEASE CHECK IF YOUR MAKE/MODEL IS COMPATIBLE IN THE "ALSO FITS" TAB BEFORE BUYING

Specifications:

Stator
Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 5mm
Length of wires stator to grommet : 125mm
Length of wires grommet to plug : 310mm
Length of pickup coil's wire to grommet : 90mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins :6

Wire to wire resistance :
Alternator : Black to yellow = 0.2 ohms +/-20%
Pickup : White/Red to White/Green = 125 ohms +/-20%
Source : Green to Red = 22 ohms +/-20%

External Ignition Coil
Bracket center to bracket : 90mm
Primary Resistance: 0.4?
Secondary Resistance: 6.0K?
Damped Resistance: 5K
Voltage Transfer Ratio: 150:1
Insulation Resistance: >1000M

CDI
Dimensions:
Height: 25mm
Length: 85mm
Width: 71mm
Fixation holes center to center : 85mm

Other specifications:
Number of plugs: 2
Number of pins: 8

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box..
