RMS KIT YAM YFZ 350 BANSHEE 87-94 RM22848

RMS KIT YAM YFZ 350 BANSHEE 87-94 RM22848

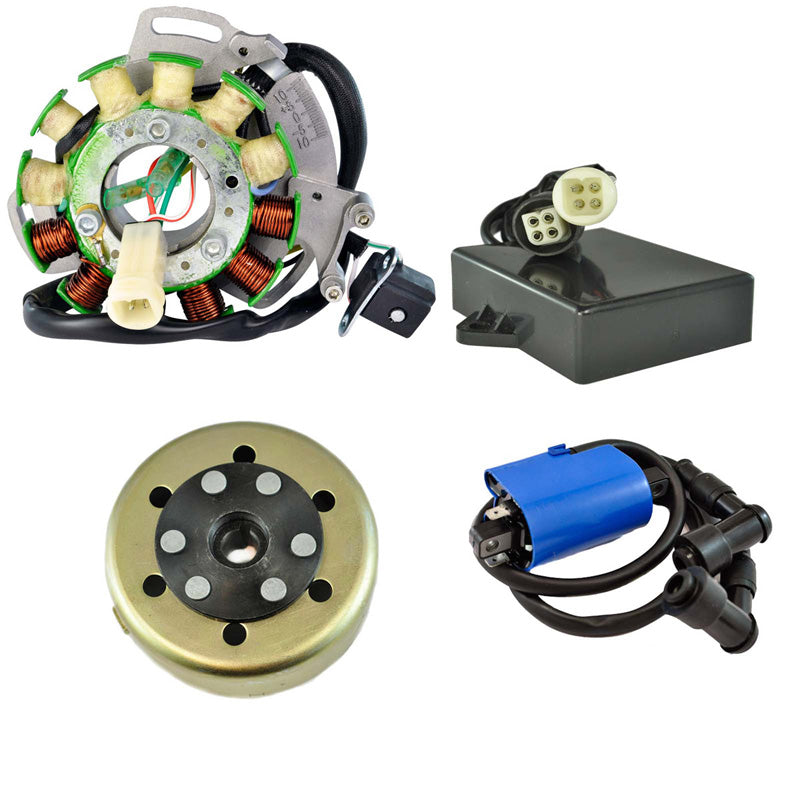

Brand new Stator + PeakRPM CDI Box + External Ignition Coil + Flywheel Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested
• All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included

PeakRPMCDI Box

• Our part is a Plug-and-play unit, direct fit, and easy to install
• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

External Ignition Coil

• Highest grade of lamination materials
• Spark plug cap(s) included

Flywheel

RMSTATOR is offering a new replacement flywheel with stronger magnetsfor your Suzuki and Kawasaki, this flywheel can be used as a direct replacement to the OEM.

We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's.

Specifications:

Stator
Dimensions :
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 5 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 310 mm
Length of pickup coil's wire to grommet : 90 mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : Black to Yellow = 0.2 ohms +/-20%
Pickup : Whit/Red to White/Green = 125 ohms +/-20%
Source : Green to Red = 22 ohms +/-20%

CDI Box
Dimensions:
Height : 25 mm
Length : 85 mm
Width : 71 mm
Fixation holes center to center: 85 mm
Wires length: 120 mm 140 mm

Other specifications:
Number of plugs : 2
Number of pins: 8

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

Flywheel
Dimensions :
Exterior Diameter: 128 mm
Interior diameter : 105 mm
Interior Diameter Center Housing: 21 mm
Exterior Diameter Center Housing: 34 mm
Thickness (exterior) : 12 mm
Thickness (interior): 7 mm

External Ignition Coil
Bracket center to bracket:: 90 mm
Wires length: 590 mm
Primary Resistance: 0.4 ?
Secondary Resistance: 6.0 K ?
Spark plug cap Resistance: 5 K
Voltage Transfer Ratio: 150:1
Insulation Resistance: >1000 M
