RMS KIT YAM YFZ 350 BANSHEE 87-94 RM23008

RMS KIT YAM YFZ 350 BANSHEE 87-94 RM23008

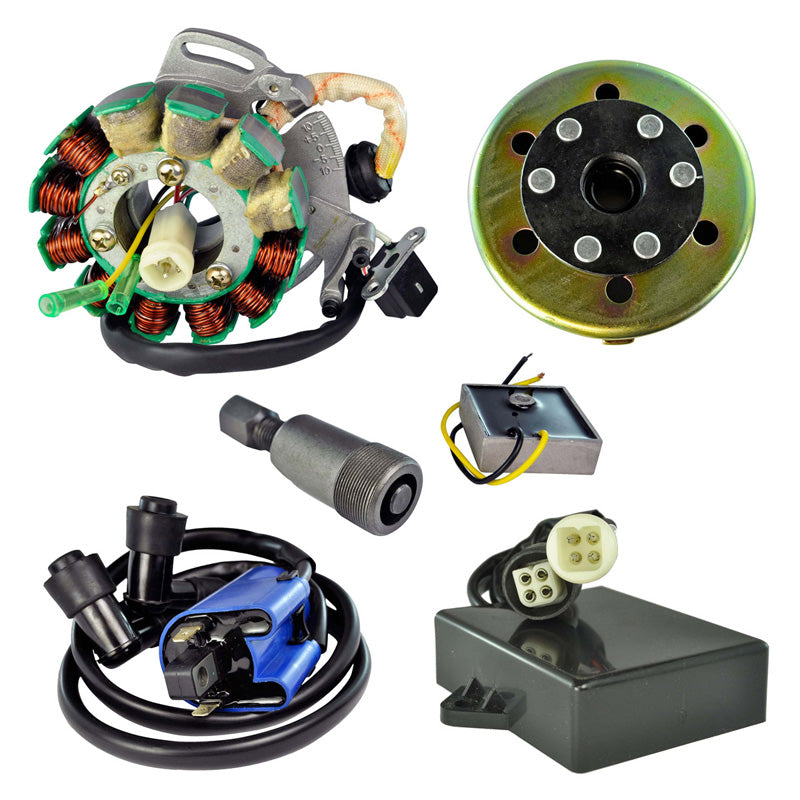

Brand new high output Stator + Voltage Regulator Rectifier + PeakRPM CDI Box + Flywheel puller + Flywheel + External ignition coil Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The Quality exceeds the OEM equipment
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

High output stator 200 watts

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Adjustable timing plate to advance and retard up to 10 degrees included

AC Regulator

• 12 Volts regulator used by Baja winners
• For use with all standard halogen and quartz lights
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Works with all other OEM parts
• Rated at 225 watts

PeakRPM CDI box

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components

Improved stronger magneto flywheel rotor

RMSTATOR is offering a new replacement flywheel with stronger magnets for your YAMAHA YFZ350 BANSHEE, this flywheel can be used as a direct replacement to the OEM.

Flywheel puller

• 27 MM x 1.0 Left hand male

External ignition coil Please note : For solid tip spark plugs, you may re-use your original spark plug caps.

• Highest grade of lamination materials
• Spark plug cap(s) included

Specifications:

High output stator
Number of wires : 6
Number of terminals : 6
Alternator : Yellow to Black = 0.4 ohms+/-20%
Pick up 1 : White/Green to White/Red = 115 ohms+/-20%
Source 1 : Green to Red = 12 ohms+/-20%

High performance CDI box
The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.


External ignition coil
Bracket center to Bracket: 90mm


Improved flywheel
Diameter of fly wheel- 130mm


Flywheel puller
27 MM x 1.0 Left hand male
