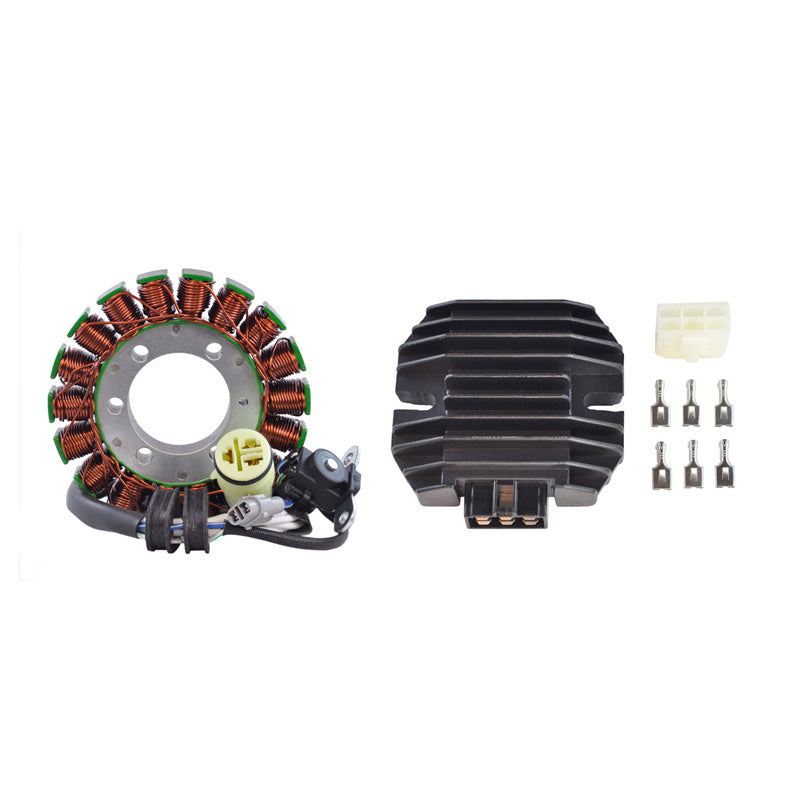

RMS KIT YAM YFZ 350 BANSHEE 87-94 RM23009

Brand new high output stator 200 watts, AC voltage regulator rectifier and PeakRPM CDI box

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• The Quality exceeds the OEM equipment
• All product shipped are tested
• All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

High output stator 200 watts

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Adjustable timing plate to advance and retard up to 10 degrees included

AC Regulator

• 12 Volts regulator used by Baja winners
• For use with all standard halogen and quartz lights
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Rated at 225 watts.

PeakRPM CDI Box

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components.

Specifications:

High output stator 200 watts Dimensions
Interior diameter: 41 mm
Exterior diameter: 103 mm
Thickness: 14 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 380 mm
Length of pickup coil's wire to grommet: 100 mm

Other specifications:
Number of wires: 6
Number of plugs: 3
Number of pins: 6

Wire to wire resistance:
Alternator: Black to Yellow = 0.2 ohms +/-20%
Pickup: White/Red to White/Green = 100 ohms +/-20%
Source: Red to Green = 15 ohms +/-20%

AC Regulator Dimensions
Width: 45 mm
Length: 45 mm
Height: 20 mm
Wires length: 130 mm

Other specifications:
Number of wires: 2
Number of terminals: 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A - 10 A / 50 W - 200 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?

Please note: This regulator has two wires, yellow to power and black to ground.

High performance CDI Box Dimensions
Height: 25 mm
Length: 85 mm
Width: 71 mm
Wires length : 120 mm & 140 mm
Fixation holes center to center: 85 mm

Other specifications:
Number of plugs: 8
Number of pins: 2

Please note: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.
