RMS KIT YAM YFZ 350 BANSHEE 95-06 RM22955

RMS KIT YAM YFZ 350 BANSHEE 95-06 RM22955

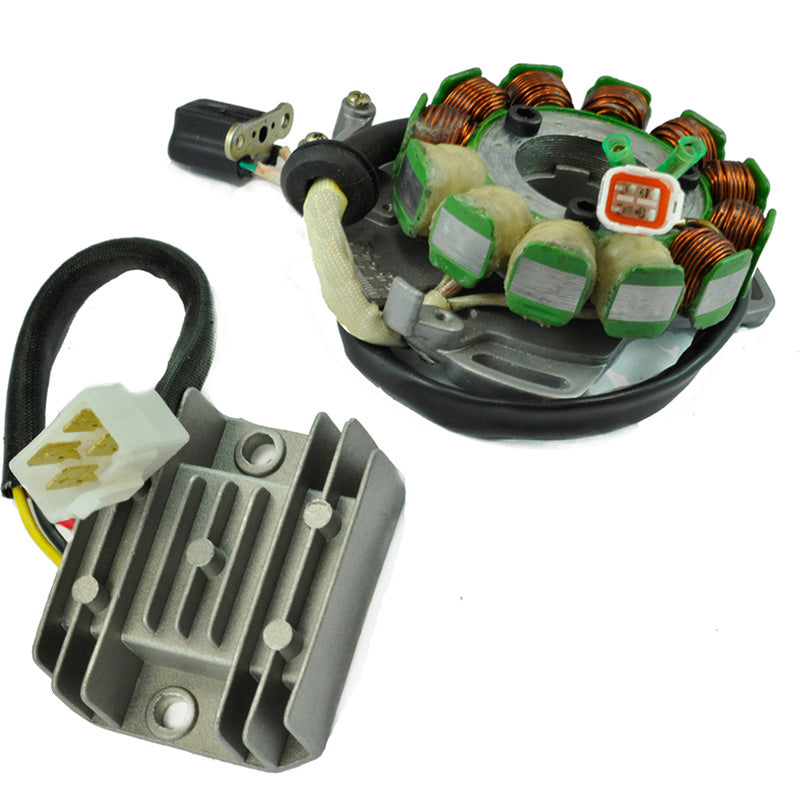

Brand new HO Stator + Voltage Regulator Rectifier Kit 200 watts

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

High output stator 200 watts

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Adjustable timing plate to advance and retard up to 10 degrees included

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Voltage regulator rectifier

• 12 volt regulator used by Baja winners
• Rated at 225 watts
• The Quality exceeds the OEM equipment
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Improved heat sink and charging capabilities
• Higher grade of electric components

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Stator
Number of wires : 6
Number of terminals : 6
Alternator : Yellow to Black = 0.4 ohms+/-20%
Pick up 1 : White/Green to White/Red = 115 ohms+/-20%
Source 1 = Green to Red 12 ohms+/-20%
Interior Diameter: 34mm
Exterior Diamter: 103mm
Thickness: ?27mm

Regulator rectifier
Number of wires : 4
Number of terminals : 4
Bracket center to center: 55 mm
Thickness: 22 mm
Height: 56 mm
