RMS KIT YAM YFZ 350 BANSHEE 95-96 RM22857
RMS KIT YAM YFZ 350 BANSHEE 95-96 RM22857
Regular price
$786.99 CAD
Regular price
Sale price
$786.99 CAD
Quantity
Couldn't load pickup availability
RMS KIT YAM YFZ 350 BANSHEE 95-96 RM22857
RMSTATOR is offering a new replacement flywheel with stronger magnetsfor your Banshee. This flywheel can be used as a direct replacement to the OEM.
We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's.
Interior diameter : 103mm
Exterior diameter : 34mm
Thickness : 27mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 520mm
Length of pickup coil's wire to grommet : 80mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to Black = 0.4ohms +/-20%
Pickup : White/Green to White/Red = 115ohms +/-20%
Source : Green to Red = 12ohms +/-20%
Height: 25mm
Length: 87mm
Width: 71mm
Fixation holes center to center: 85mm
Wires length: 140mm
Other specifications:
Number of plugs: 2
Number of pins: 8
External Ignition coil
Distance between fixation holes: 90mm

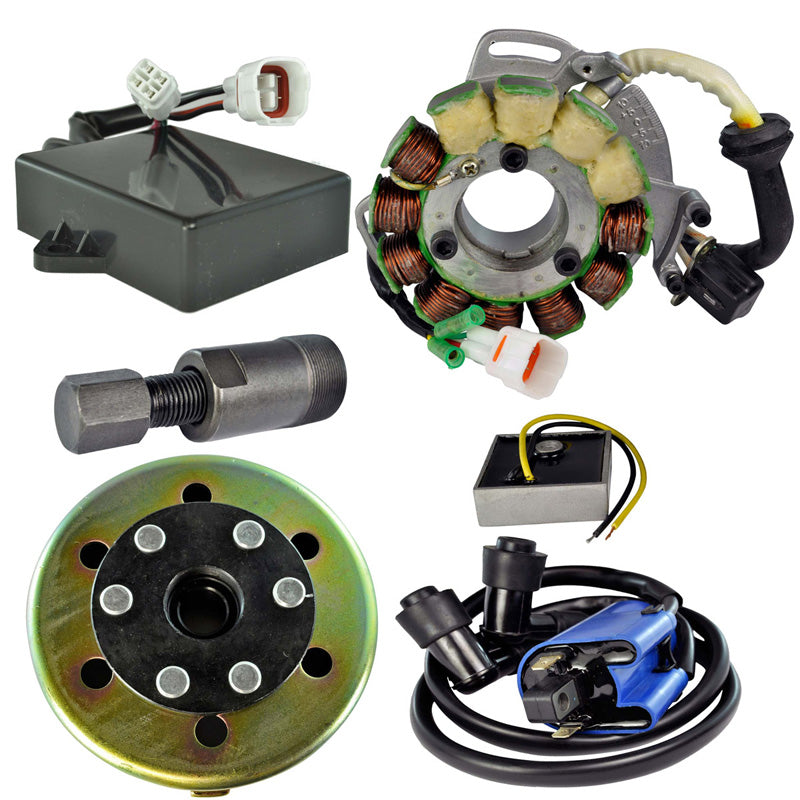

Brand New Kit Stator + PeakRPM CDI Box + External Ignition Coil + Flywheel + Puller
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
High Output Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Adjustable timing plate to advance and retard up to 10 degrees included
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- Highest grade of lamination materials
- Spark plug cap(s) included
RMSTATOR is offering a new replacement flywheel with stronger magnetsfor your Banshee. This flywheel can be used as a direct replacement to the OEM.
We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's.
Specifications:
StatorInterior diameter : 103mm
Exterior diameter : 34mm
Thickness : 27mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 520mm
Length of pickup coil's wire to grommet : 80mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to Black = 0.4ohms +/-20%
Pickup : White/Green to White/Red = 115ohms +/-20%
Source : Green to Red = 12ohms +/-20%
Dimensions AC Regulator:
Height: 20 mm
Length: 45 mm
Width: 45 mm
Other specifications:
Number of terminals: 2
Wires length: 130 mm
Height: 25mm
Length: 87mm
Width: 71mm
Fixation holes center to center: 85mm
Wires length: 140mm
Other specifications:
Number of plugs: 2
Number of pins: 8
External Ignition coil
Distance between fixation holes: 90mm
