RMS KIT YAM YFZ 350 BANSHEE 97-06 RM22860

RMS KIT YAM YFZ 350 BANSHEE 97-06 RM22860

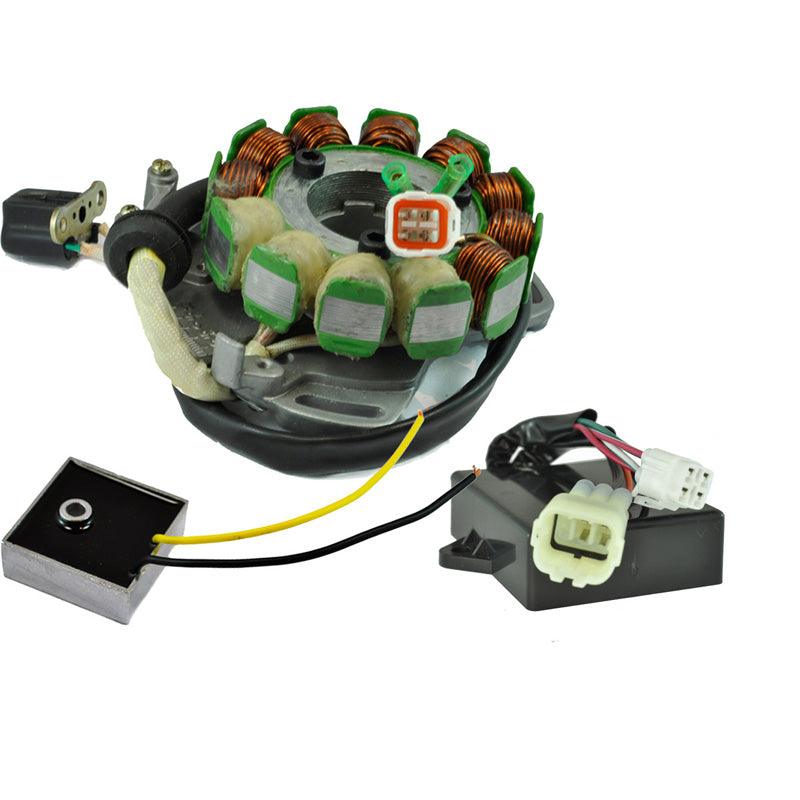

Brand New Kit HO Stator 200W + AC Regulator Rectifier+ PeakRPM CDI Box

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

High output stator 200 watts

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Adjustable timing plate to advance and retard up to 10 degrees included

AC Regulator

• 12 Volts regulator used by Baja winners
• For use with all standard halogen and quartz lights
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Simple installation
• Works with all other OEM parts
• Rated at 225 watts

CDI Box PeakRPM

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

Specifications:

Dimensions :
Interior diameter : 103mm
Exterior diameter : 34mm
Thickness : 27mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 520mm
Length of pickup coil's wire to grommet : 80mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow to Black = 0.4ohms +/-20%
Pickup : White/Green to White/Red = 115ohms +/-20%
Source : Green to Red = 12ohms +/-20%

Dimensions AC Regulator:
Height: 20 mm
Length: 45 mm
Width: 45 mm

Other specifications:
Number of terminals: 2
Wires length: 130 mm

CDI Box
Height: 71mm
Length: 87mm
Width: 26mm
Fixation holes center to center: 85mm

Other specifications:
Number of plugs: 2
Number of pins: 8
