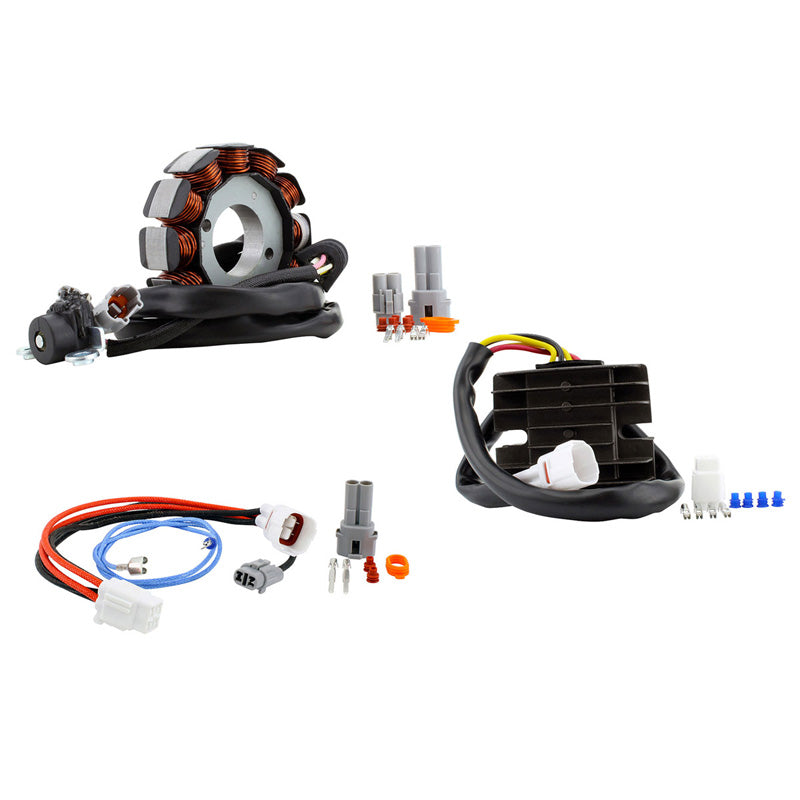

RMS KIT YAM YFZ 450 04-09 RM22430

Brand new HO Stator + Heavy Duty Regulator Rectifier Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

Specifications:

Stator Dimensions
Interior diameter : 30 mm
Exterior diameter : 85 mm
Thickness : 10 mm
Length of wires stator to grommet : 180 mm
Length of wires grommet to plug : 900 mm
Length of pickup coil's wire to grommet : 90 mm

Other specifications :
Number of wires : 4
Number of plugs : 2
Number of pins : 4

Wire to wire resistance :
Pickup : White to Red = 275 ohms +/- 20%
Alternator : White to Yellow = 0.4 ohms +/- 20%

Voltage regulator rectifier Dimensions
Width : 63 mm
Length : 78 mm
Height: 26 mm
Fixation holes center to center : 60 mm
Wires length: 450 mm

Other specifications :
Number of plugs : 1
Number of pins : 4

Warning:

Please note : This product is a DC conversion kit and reconfigures the lights to run off of the battery.

This kit will not fit on "R" models.
