RMS KIT YAM YFZ 450 04-09 RMS900-108120

RMS KIT YAM YFZ 450 04-09 RMS900-108120

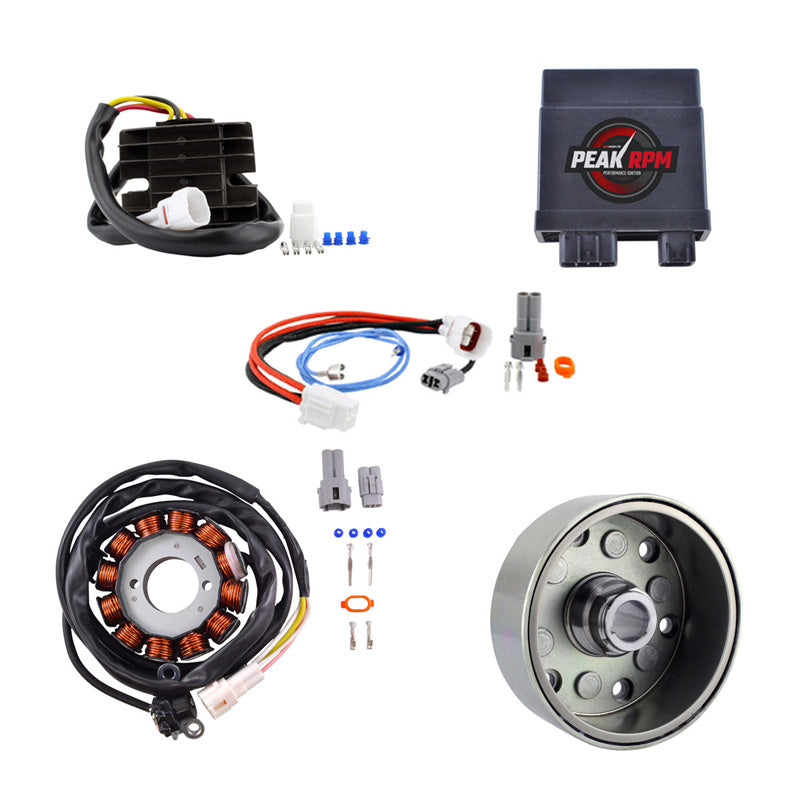

Brand New High Output Stator + Magneto Flywheel Rotor + Regulator + CDI + Harness.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• All shipped products are tested.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Brand new high output stator

• High output stator generating 140W available for added accessories.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick-up pulsar coil included.
• Connector included.
• Rubber grommet included.

Brand new magneto flywheel rotor

• The quality exceeds the OEM equipment.
• All products shipped are tested.

Brand new voltage regulator rectifier

• The quality exceeds the OEM equipment.
• Improved heat sink and charging capabilities.
• Higher grade of electric components.

Brand new PeakRPM CDI Box

• Our part is a plug-and-play unit, direct fit, and easy to install.
• Our PeakRPM CDI Box provides the optimal output for your ride.
• Higher grade of electronic components.
• The quality exceeds the OEM equipment.
• All products shipped are tested.

Specifications:

Specifications of stator:

Dimensions:
Interior diameter: 30 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 180 mm
Length of wires grommet to plug: 980 mm
Length of pick-up coil wire to grommet: 95 mm

Other specifications:
Number of wires: 4
Number of plugs: 2
Number of pins: 4

Wire to wire resistance:
Alternator: White to Yellow = 0.3 ohms +/-20%
Pick-up: White to Red = 264 ohms =+/-20%

Specifications of flywheel:

Dimensions:
Exterior Diameter: 100.4 mm
Interior Diameter: 86.5 mm
Interior Diameter Centre Housing: 16 mm
Exterior Diameter Centre Housing: 28 mm and 33 mm

Specifications of Regulator:

Dimensions:
Width: 66 mm
Length: 78 mm
Height: 27 mm
Wires length: 465 mm
Distance between fixation holes centre to centre: 62 mm

Other specifications:
Number of plugs: 1
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A/500 W
Open Circuit Voltage: <15 V
Operation Temperature: -20 °C to 85°C

Specifications of CDI:

Dimensions:
Height: 36 mm
Length: 86 mm
Width: 81 mm
Other specifications:
Number of plugs: 2
Number of pins: 12


Specifications of harness:

Dimensions:
Length: 250 mm
Number of plugs: 2
Number of pins: 8

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
