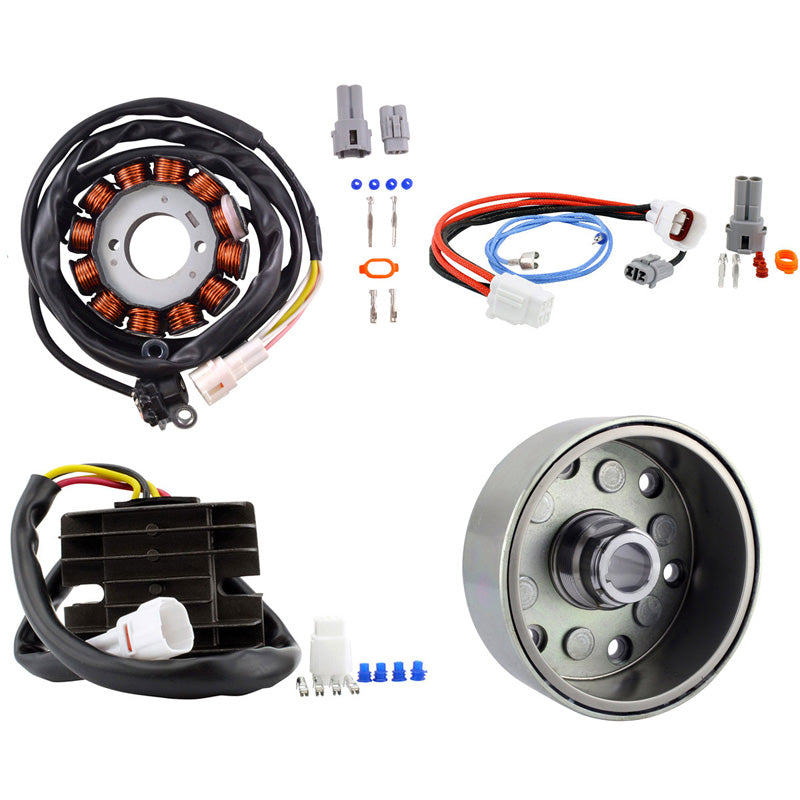

RMS KIT YAM YFZ450R 04-13 RMS900-108122

Brand New High Output Stator + Magneto Flywheel Rotor + Regulator + Harness.

• Direct replacement to your original unit.
• Pick-up pulsar coil included.
• Connector included.
• Opposite connector included.
• Rubber grommet included.
• Highest-grade lamination materials.
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• All products shipped are tested.

High output stator generating 140W available for added accessories.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Specifications of flywheel:

Dimensions:
Exterior Diameter: 100.4 mm
Interior Diameter: 86.5 mm
Interior Diameter Centre Housing: 16 mm
Exterior Diameter Centre Housing: 28 mm and 33 mm

Specifications of stator:

Dimensions:
Interior diameter: 30 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 180 mm
Length of wires grommet to plug: 980 mm
Length of pick-up coil's wire to grommet: 95 mm

Other specifications:
Number of wires: 4
Number of plugs: 2
Number of pins: 4

Wire to wire resistance:
Alternator: White to Yellow = 0.3 ohms +/-20%
Pick-up: White to Red = 264 ohms =+/-20%

Specifications of regulator:

Dimensions:
Width: 66 mm
Length: 78 mm
Height: 27 mm
Wire length: 465 mm
Distance between fixation holes centre to centre: 62 mm

Other specifications:
Number of plugs: 1
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A/500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20 °C to 85°C

Specifications of harness:

Dimensions:
Length: 250 mm
Number of plugs: 2
Number of pins: 8

Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
