RMS KIT YAM YZF R6 99-02 RM22962

RMS KIT YAM YZF R6 99-02 RM22962

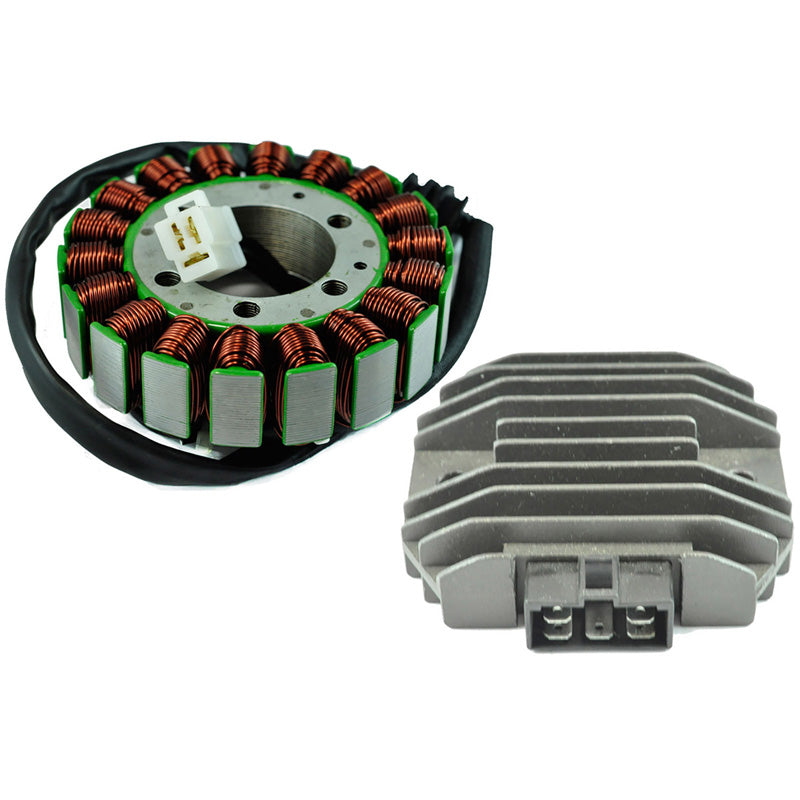

Brand New Kit Stator + Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included

Voltage Regulator Rectifier

• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Dimensions Stator
Interior diameter : 42mm
Exterior diameter : 104mm
Thickness : 30mm
Length of wires stator to grommet : 130mm
Length of wires grommet to plug : 335mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Black between each Black = 0.4ohms +/-20%

Dimensions Voltage Regulator Rectifier
Width : 80mm
Length : 90mm
Height: 28mm
Fixation holes center to center : 70mm

Other specifications :
Number of plugs : 1
Number of pins : 5
