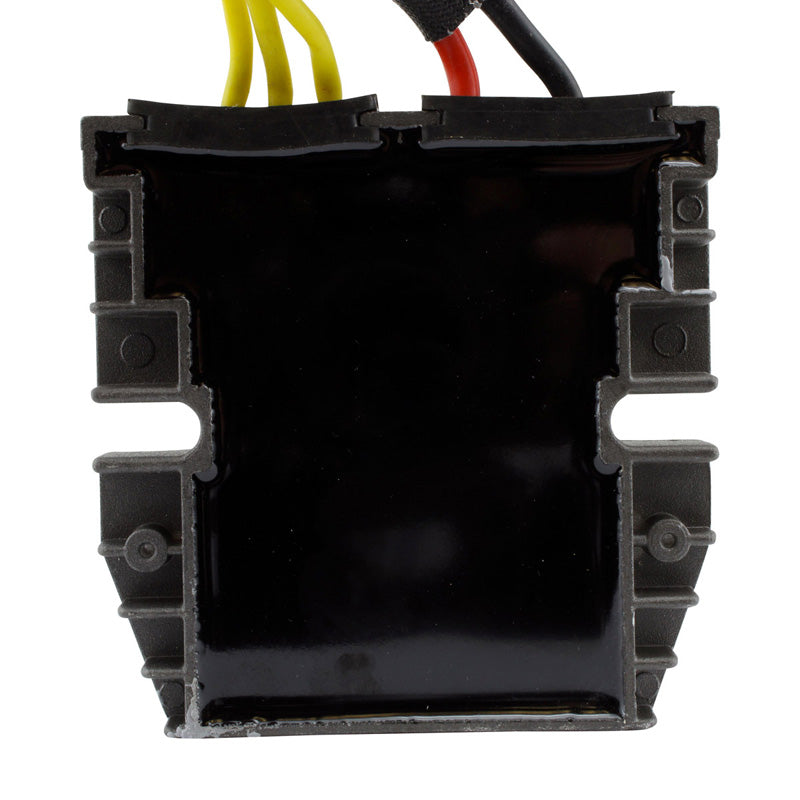

RMS MOSFET REG HON CBR600|900|929RR|VFR 800 00-09 RMS020-103355

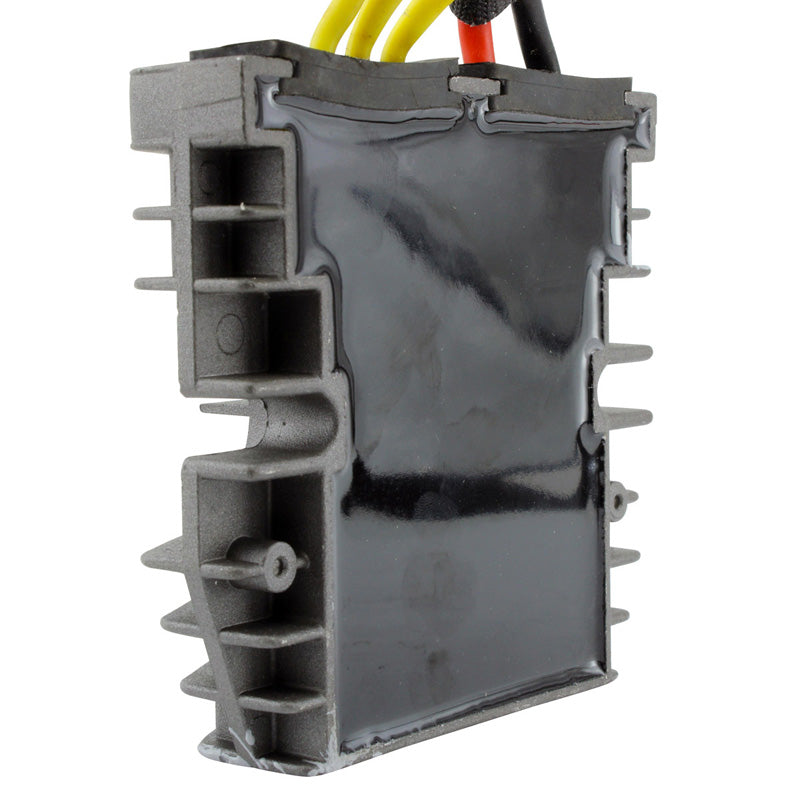

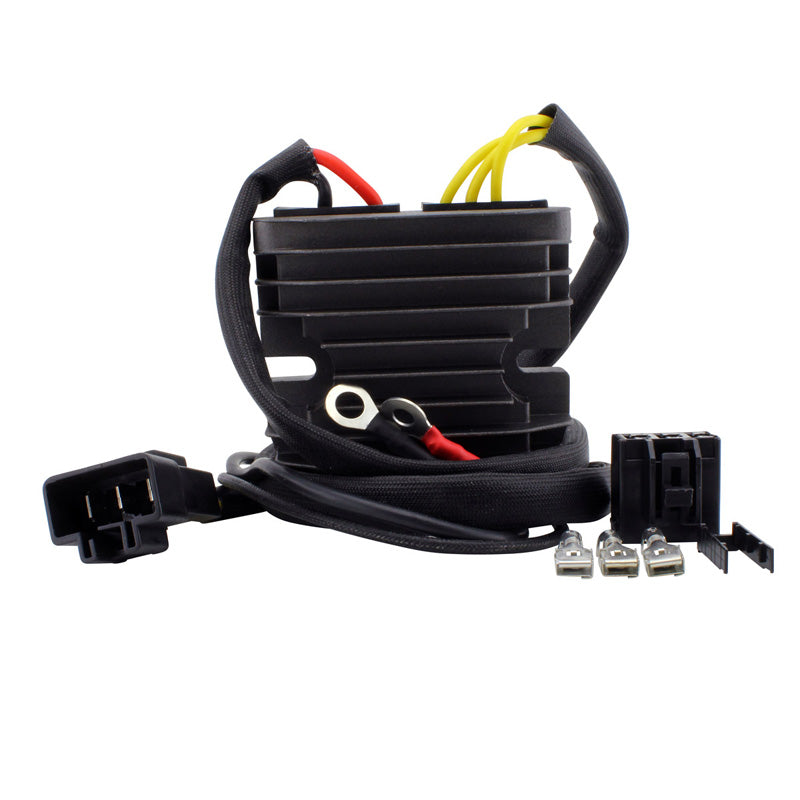

Brand new aftermarket Mosfet voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.

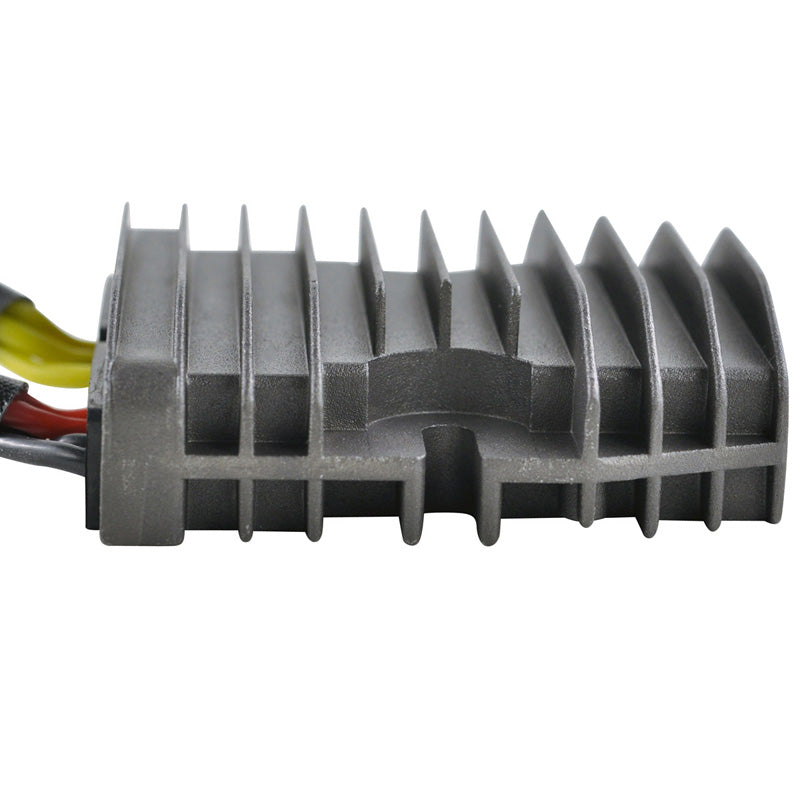

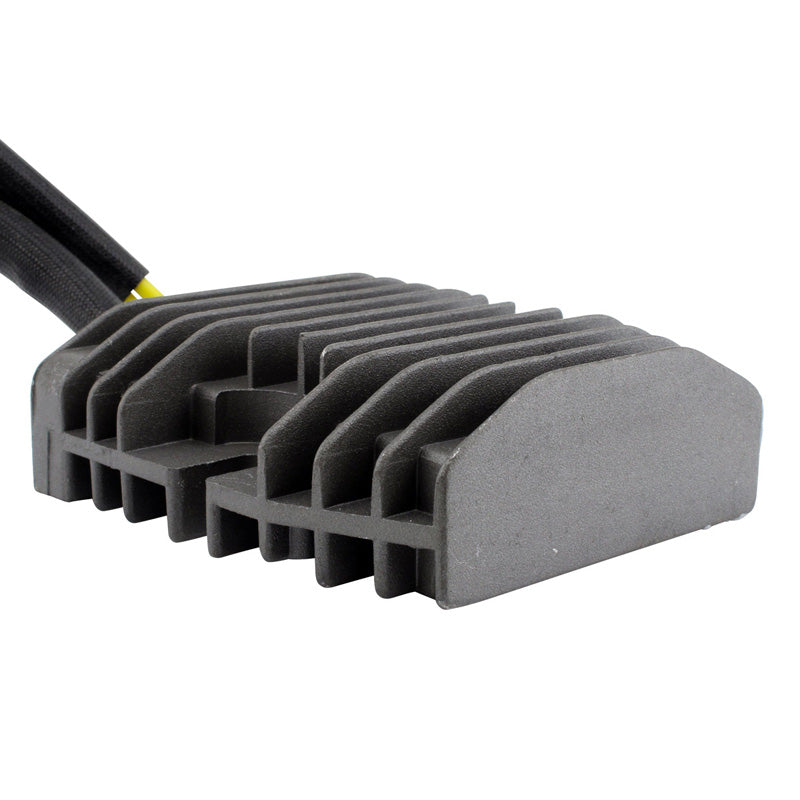

• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

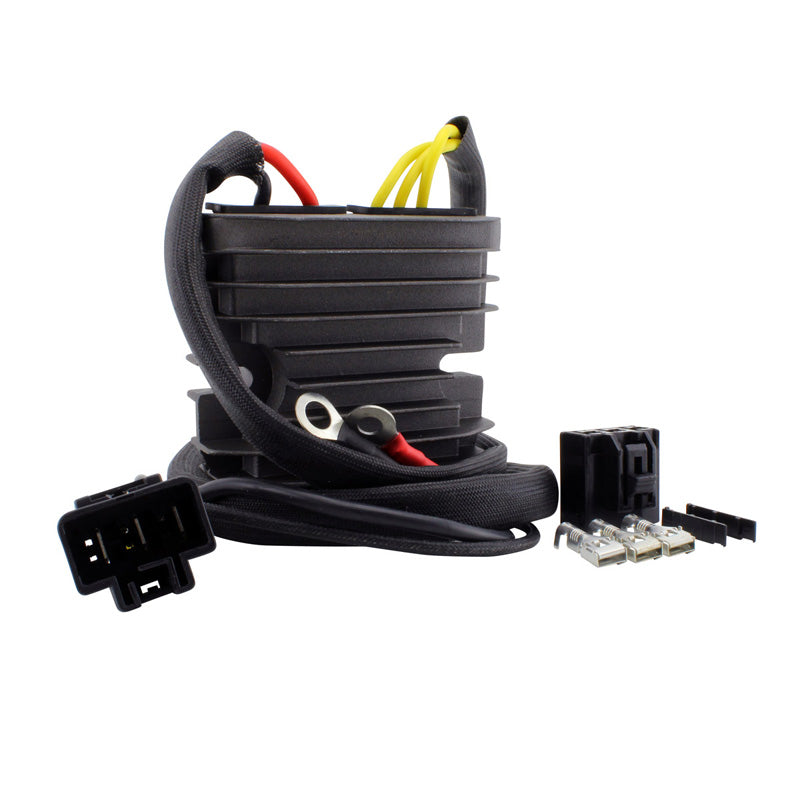

• We have even included the opposite connector
• All products shipped are tested

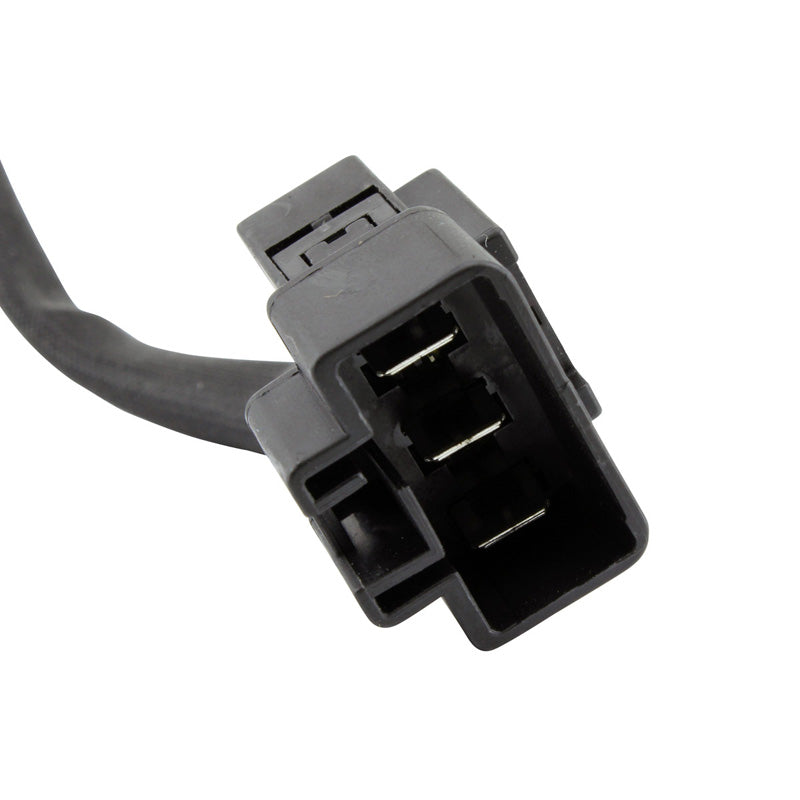

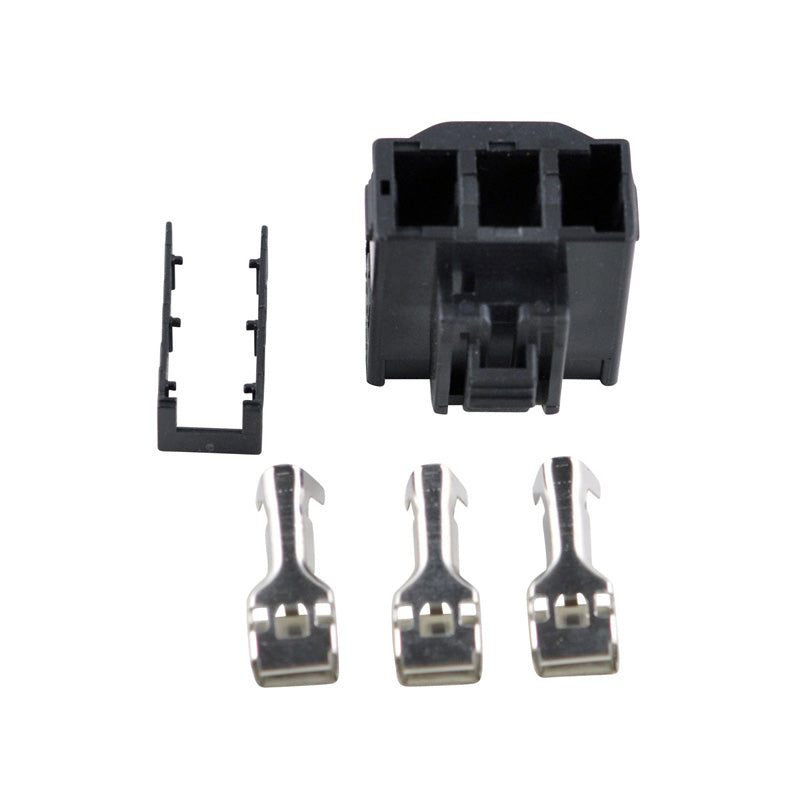

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions :
Width : 95 mm
Length : 90 mm
Height: 30 mm
Fixation holes center to center : 75 mm
Wires length: 811 mm & 350 mm

Other specifications :
Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

This regulator fits mostly European models or vehicles with the regulator mounted away from the battery. The connection system is different from the original and has been redesigned to bypass bad connections and wiring.
