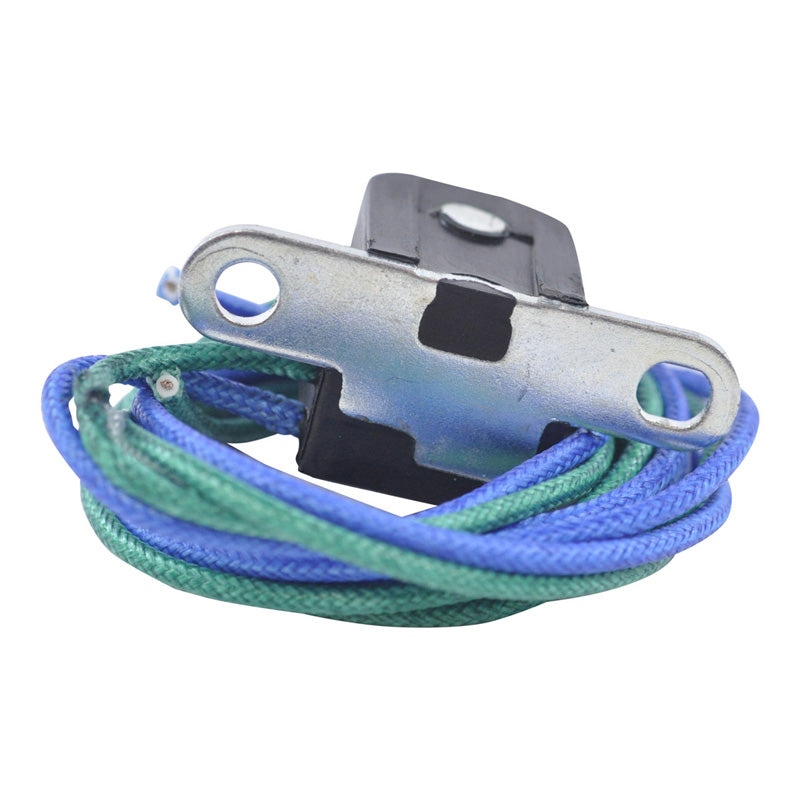

RMS PICK-UP COIL A-C|SUZ|YAM ATV/MOTO 125-500 86-22 RM00101

Brand new pick up coil 200 ohms

• We offer a brand new pickup/pulser coil for you to repair your stator.
• Often unavailable from the OEM manufacturer
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Height: 23 mm
Length: 20 mm
Width: 19 mm
Bracket center to center: 35 mm
Wires length : 700 mm

Other specifications:
Number of wires : 2
Number of terminals: 2

Wire to wire resistance:
Blue to Green = 200 ohms+/-20%

Fitment notice:

Two possible Pick-Up Pulsar Coils can fit on Polaris Sportsman 400 2004 and Sportsman 500 2004. Please compare to your original part before buying.
