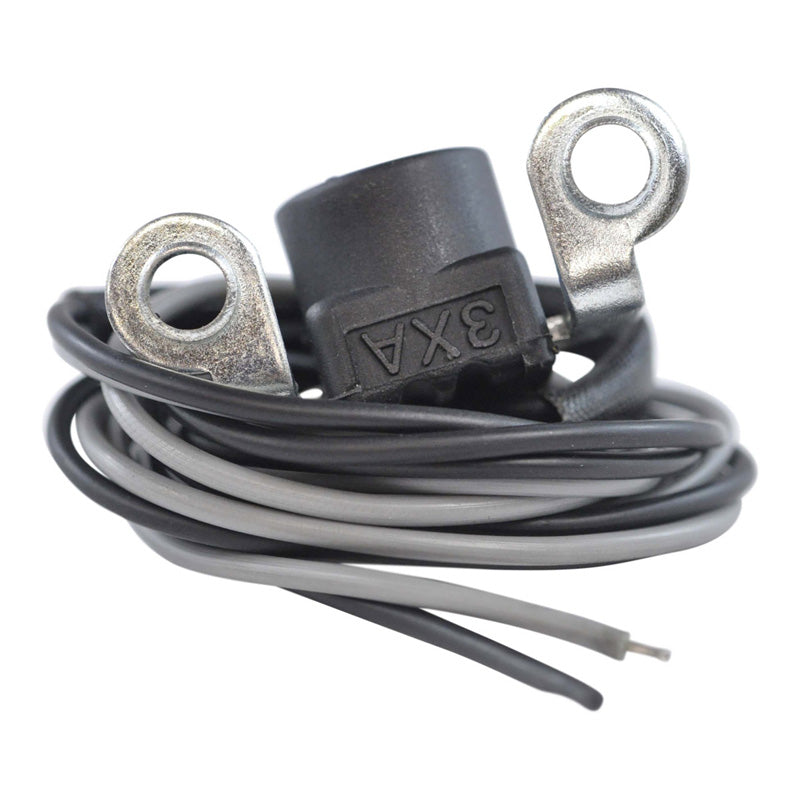

RMS PICK-UP COIL YAM APEX|STRYKER|V-STAR 1300 10-17 RM00134

Brand new pick up coil 270 ohms

Many Yamaha snowmobile owners received the mechanical diagnostic code Code 12 - Faulty Crankshaft Position Sensor from their on-board computer. This error code indicates that the position sensor connected to the stator is broken and that it cannot send the correct signal to the CDI box, which manage electrical distribution through the vehicle.

The solution proposed by Yamaha dealers is to replace the complete stator at prices around 400$;

Our Crankshaft Position Sensor allow you to replace only the part that is broken without changing the complete stator for 88% less expensive than the dealers solution's price.

• We offer a brand new pickup/pulsar coil for you to repair your stator.
• Often unavailable from the OEM manufacturer
• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Height: 20 mm
Length: 23 mm
Width: 19 mm
Bracket center to center: 35 mm
Wires length : 900 mm

Other specifications:
Number of wires : 2
Number of pins: 2

Wire to wire resistance: Black to Grey = 270 ohms +/-20%
