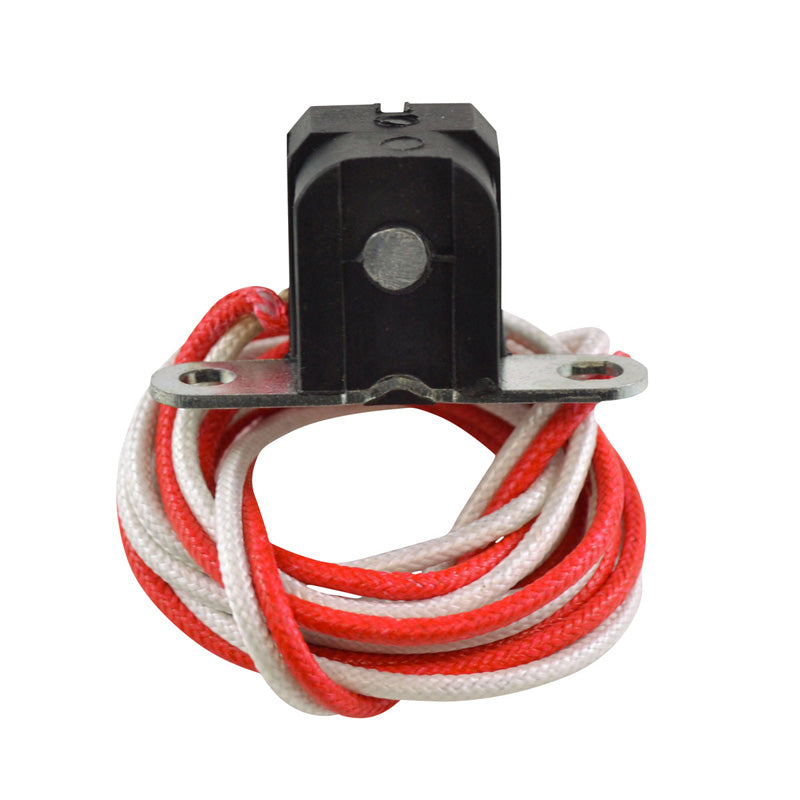

RMS PICK-UP COIL YAM YFM550/700 GRIZZLY 07-20 RM00107
RMS PICK-UP COIL YAM YFM550/700 GRIZZLY 07-20 RM00107
Regular price
$50.99 CAD
Regular price
Sale price
$50.99 CAD
Quantity
Couldn't load pickup availability
RMS PICK-UP COIL YAM YFM550/700 GRIZZLY 07-20 RM00107
Height: 19 mm
Length: 23 mm
Width: 19 mm
Bracket center to center: 35 mm
Wires length : 800 mm
Other specifications:
Number of wires : 2
Number of pins: 2
Wire to wire resistance:
Red to White = 500 ohms +/-20%
Brand new pick up coil for Stator 500 ohms
- We offer a brand new pickup/pulsar coil for you to repair your stator.
- Often unavailable from the OEM manufacturer
- All products shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions:Height: 19 mm
Length: 23 mm
Width: 19 mm
Bracket center to center: 35 mm
Wires length : 800 mm
Other specifications:
Number of wires : 2
Number of pins: 2
Wire to wire resistance:
Red to White = 500 ohms +/-20%
