RMS REGULATOR A-C PANTERA|HON CBR|VF|KTM|SUZ DR83-16 RM30T10

RMS REGULATOR A-C PANTERA|HON CBR|VF|KTM|SUZ DR83-16 RM30T10

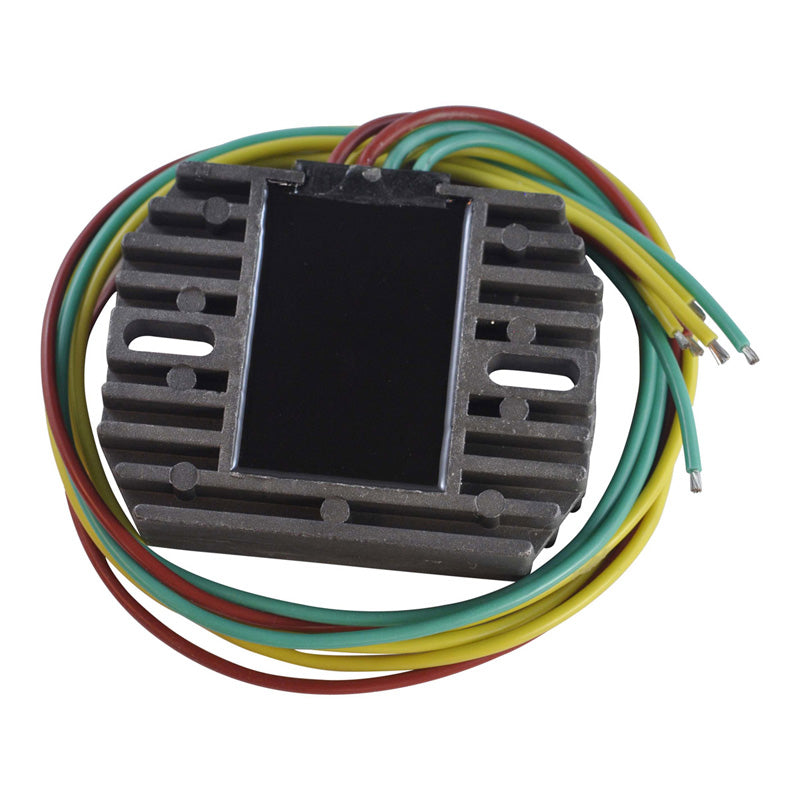

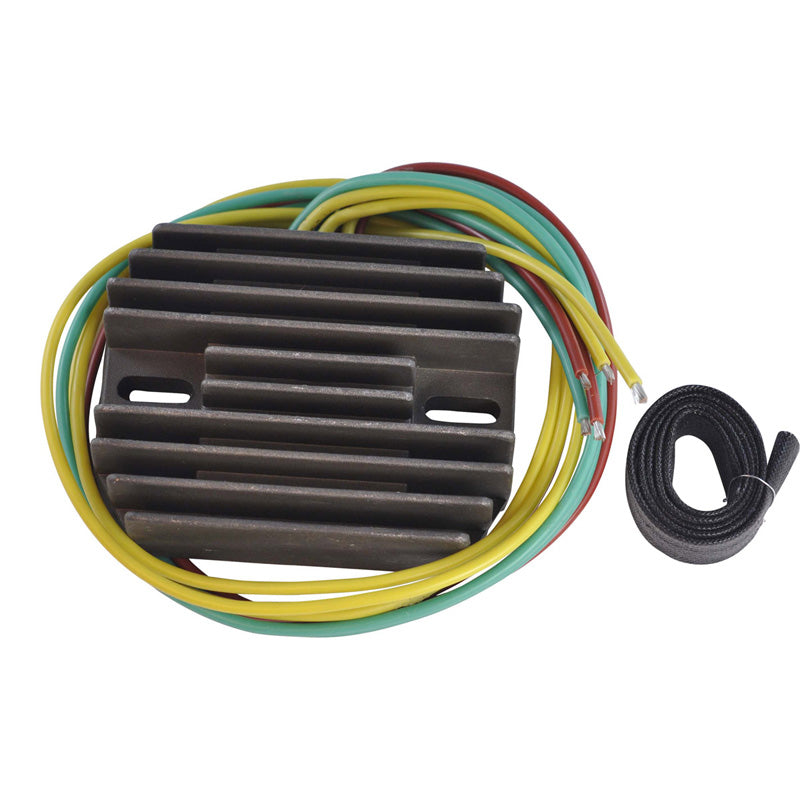

Brand new voltage regulator rectifier

• You must re-install your original connector.
• Once your connector is re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install.
• No assembly required
• The Quality exceeds the OEM equipment

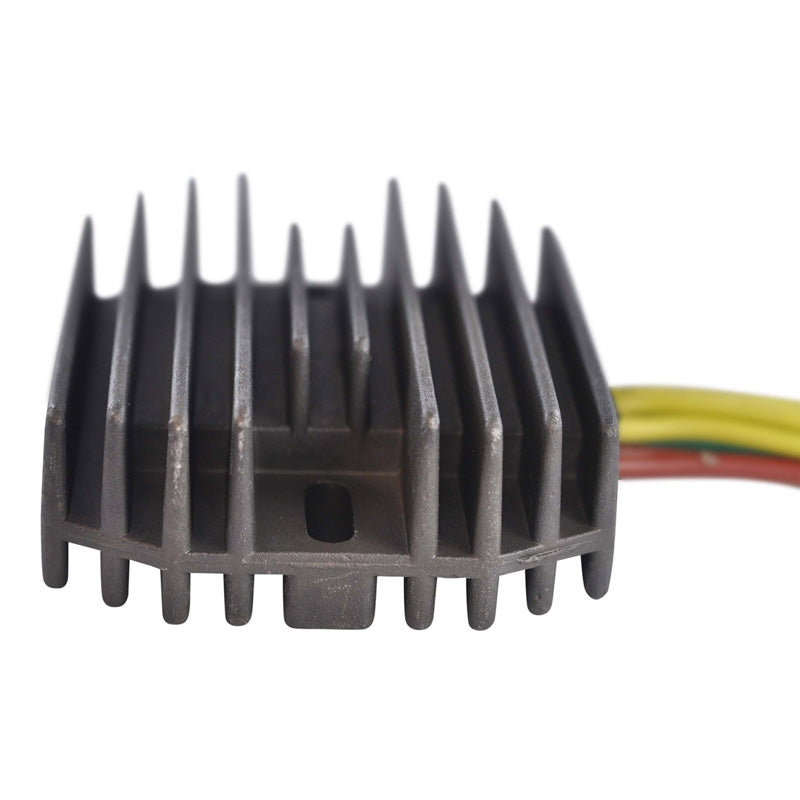

• Improved heat sink and charging capabilities
• Higher grade of electric components.
• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Width : 80mm
Length : 104mm
Height: 31mm
Fixation holes center to center : 76mm

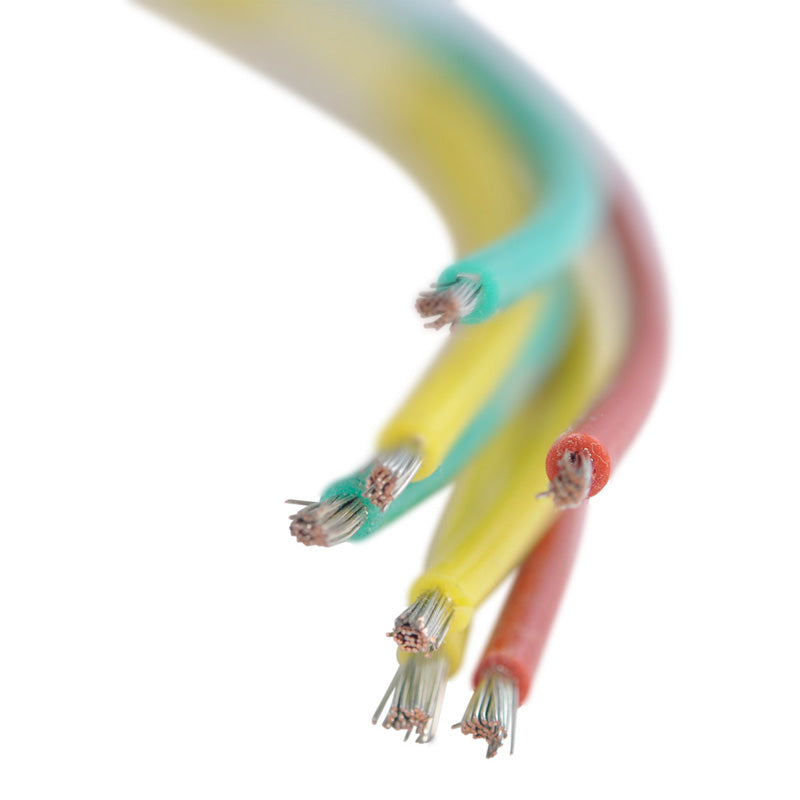

Wires length: 500mm

Other specifications :
Number of plugs : 0
Number of pins : 7
Number of wires: 7
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
