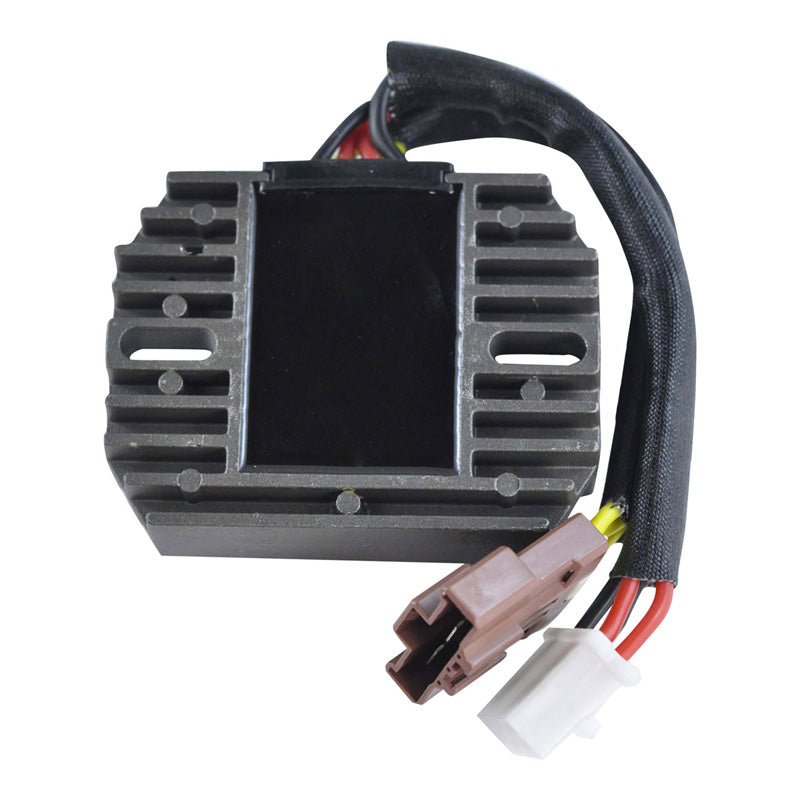

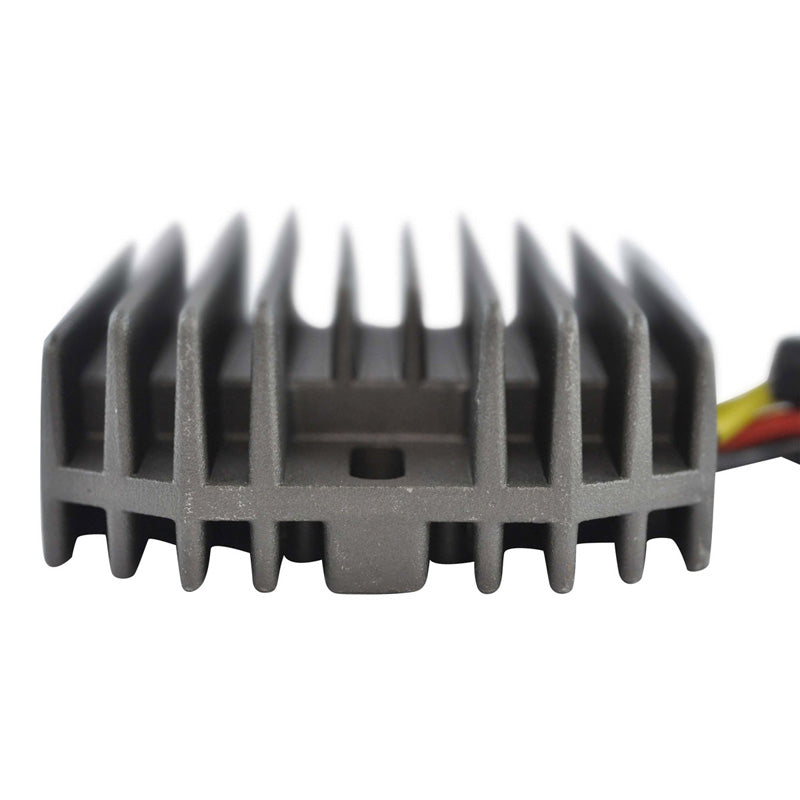

RMS REGULATOR APRILIA CAPONORD|RSV 1000|S|TUONO 98-10 RM30319

RMS REGULATOR APRILIA CAPONORD|RSV 1000|S|TUONO 98-10 RM30319

Brand new voltage regulator rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

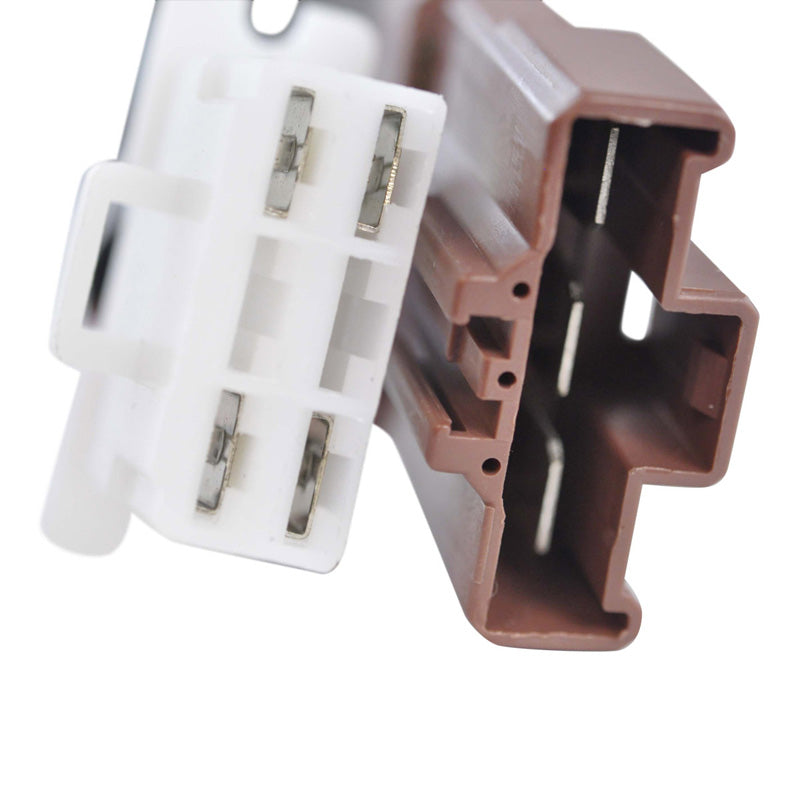

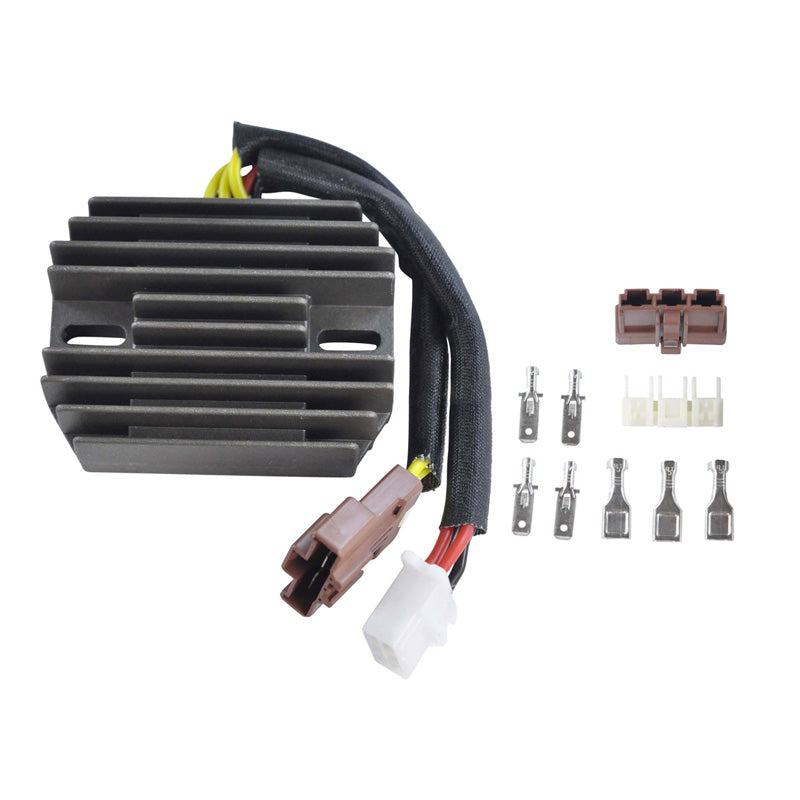

We have even included the opposite connector (main harness side), as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Number of plugs : 2
Number of terminals : 7
Height (mm) : 103
Length (mm) : 80
Width (mm) : 31
Fixation holes center-to-center (mm) : 75
Harness 1 length - Body to connector (mm) : 166
Harness 2 length - Body to connector (mm) : 166

Warning:

Please Note: Our part is an improved design over the original Aprilia voltage regulator. It does not use the 5th Black wire in the 6-position connector.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
