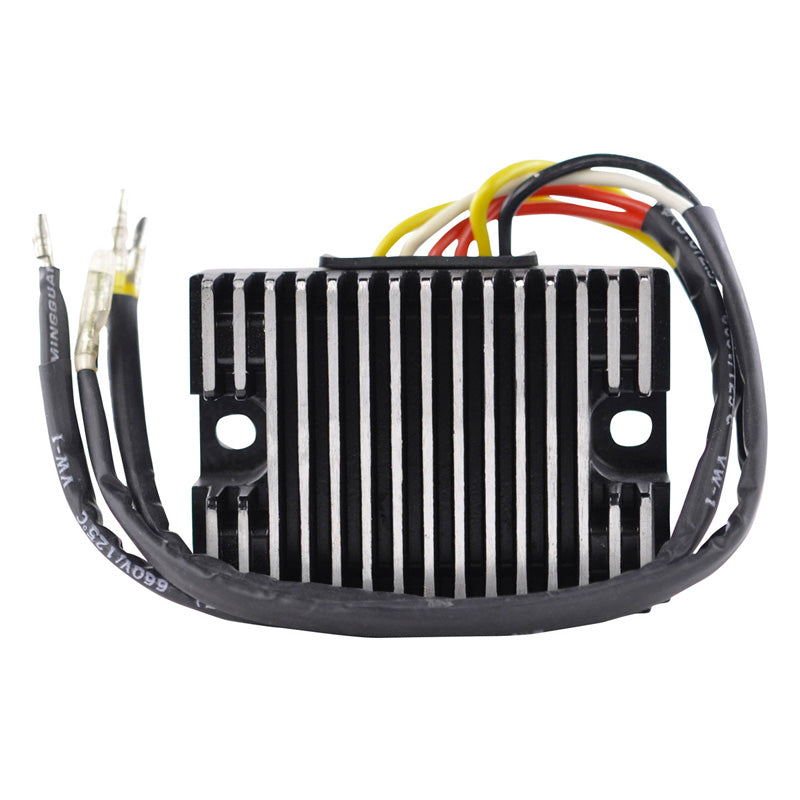

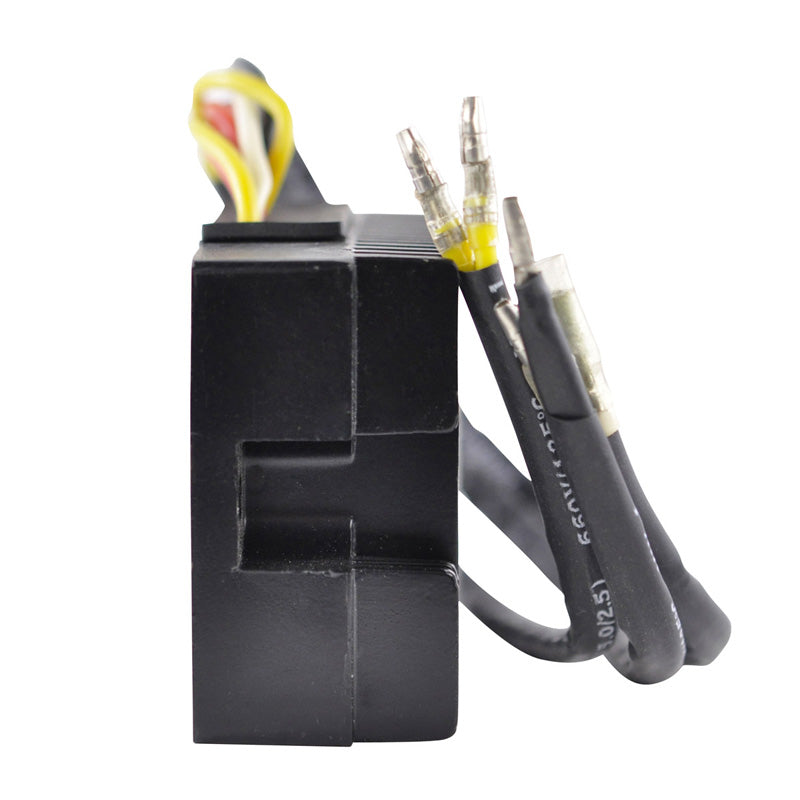

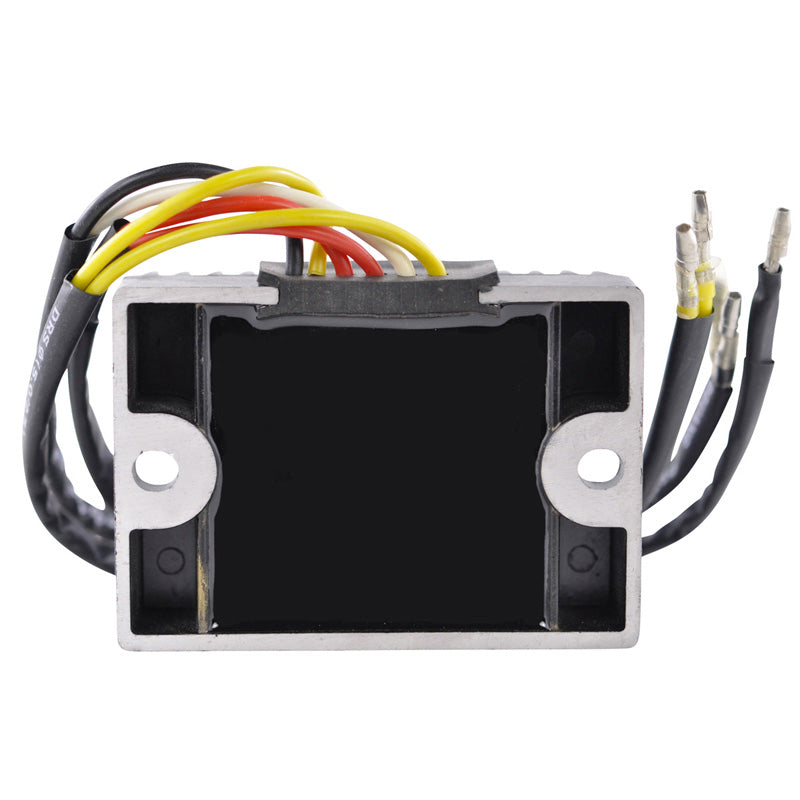

RMS REGULATOR DUCATI MONSTER|900 SS 86-98 RM30017

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
Width: 37mm
Length: 68mm
Height: 103mm
Wires length: 280mm
Fixation holes center to center: 90mm

Other specifications:
Number of plugs: 5
Number of pins: 6
Number of wires: 6

Please Note : This regulator is used on many various Ducati models. The wire function of our regulator is described below :

• Yellow wires : Stator AC in
• Red wire : Battery positive
• Black wire : Keyswitch+12V
• White wire : Charge warning dash indicator light

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
