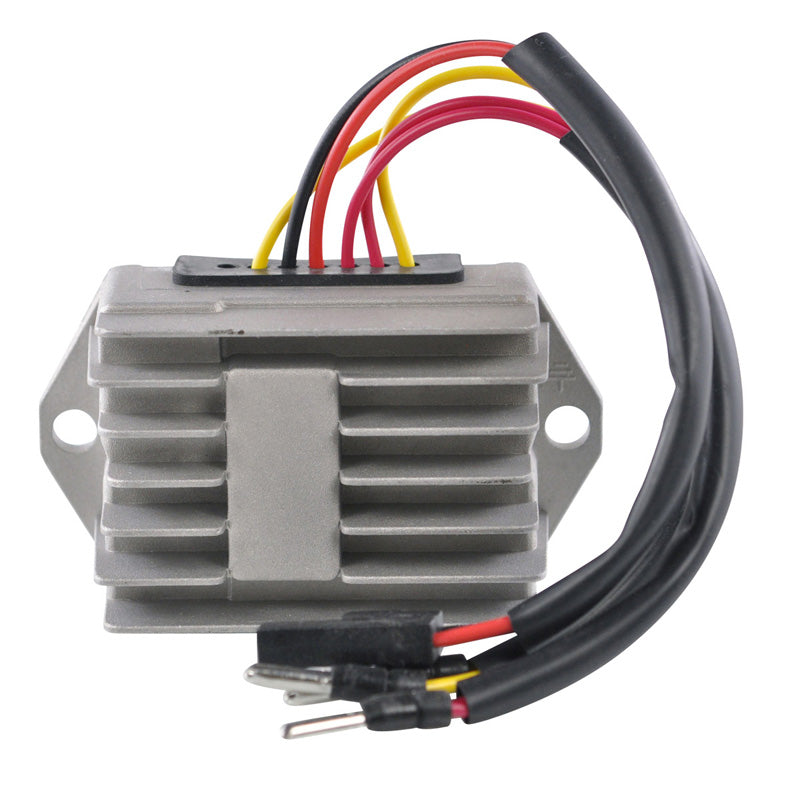

RMS REGULATOR DUCATI SUPER SPORT|GUZZI LEMANS 73-04 RMS020-103082

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
Width: 64 mm
Length: 106 mm
Height: 39 mm
Wires length: 190, 195 & 200 mm
Fixation holes center to center: 92 mm

Other specifications:
Number of plugs: 4
Number of pins: 5
Number of wires: 6
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

There are two possible regulators for many Ducati models. This regulator is more similar to the OEM style, with a plug. Always check in the 'Fits models' section and please compare to your original part before buying.
