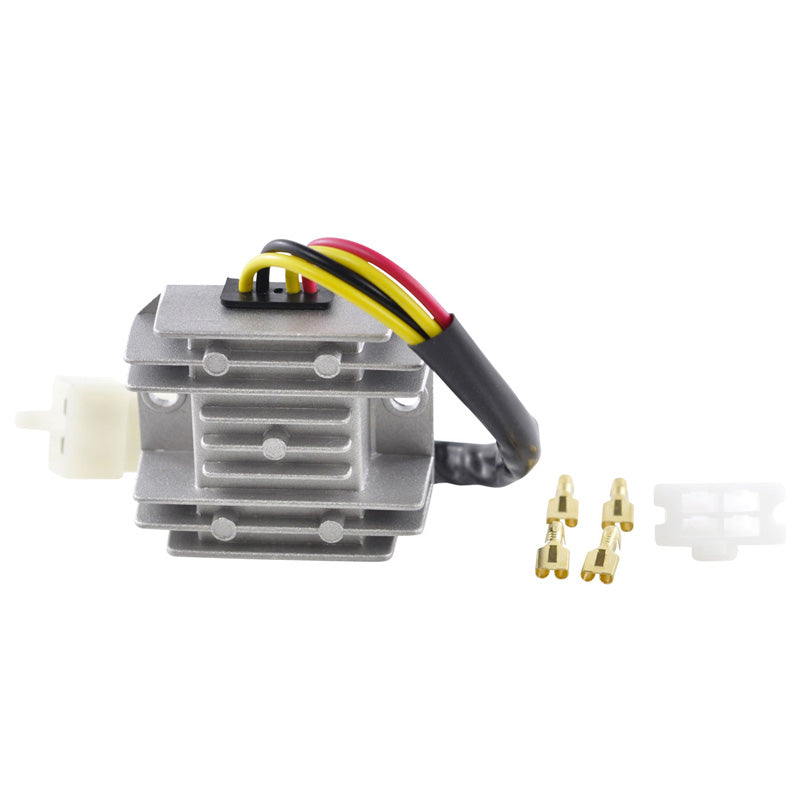

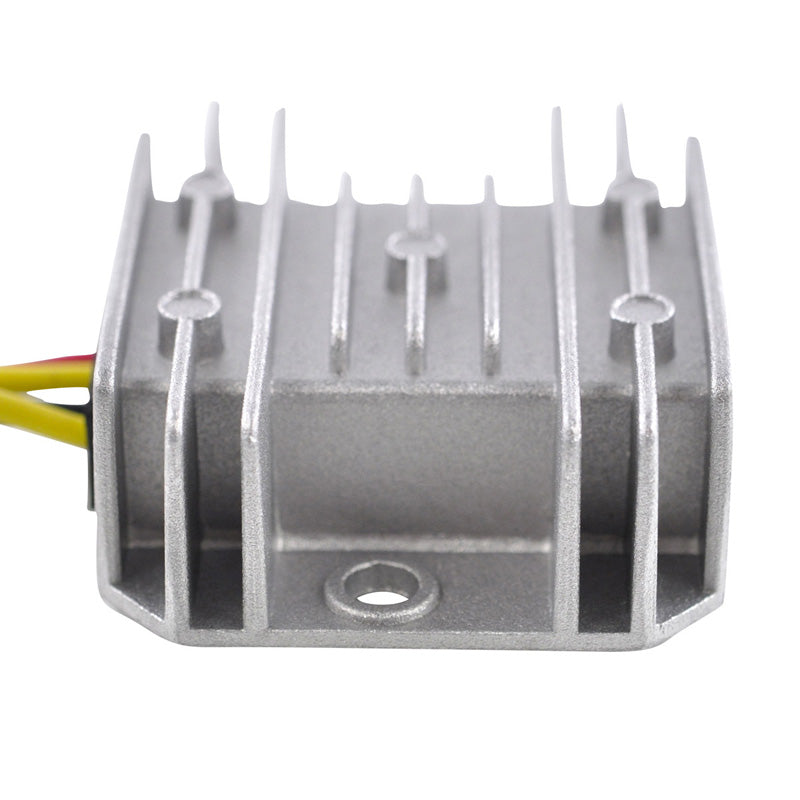

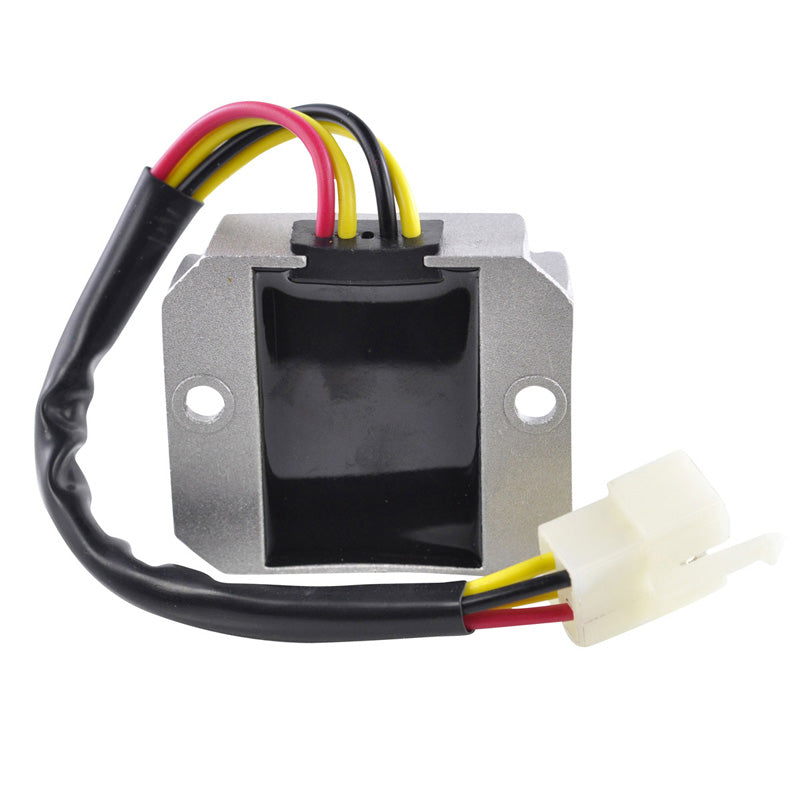

RMS REGULATOR HON ATC200|TRX200 82-84 RM03900

RMS REGULATOR HON ATC200|TRX200 82-84 RM03900

Brand new 35 AMP voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Improved heat sink and charging capabilities
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

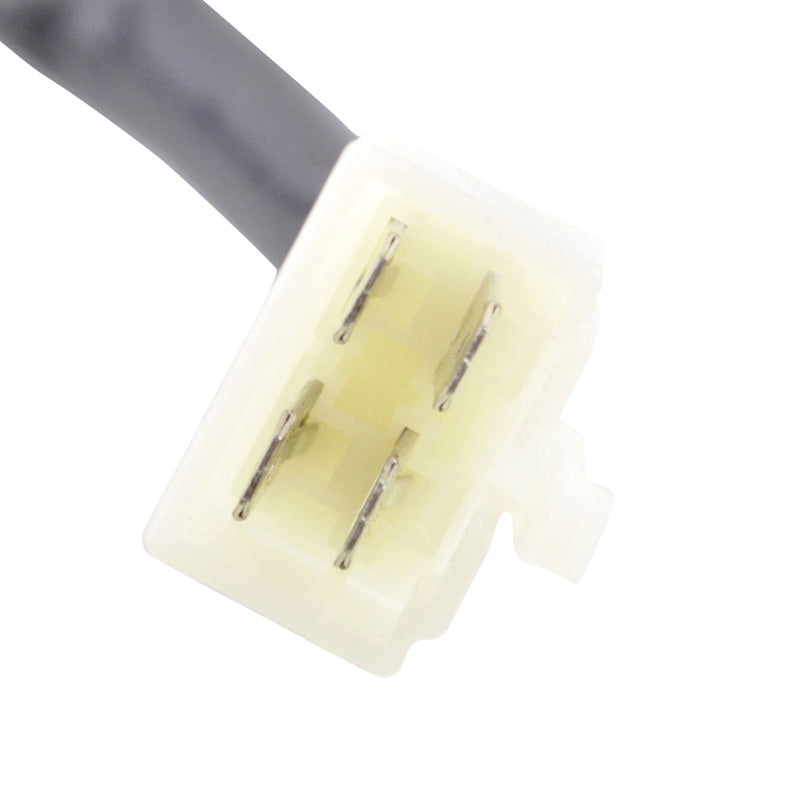

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions :
Width : 55 mm
Length : 67 mm
Height: 22 mm
Fixation holes center to center : 55 mm
Wires length: 140 mm

Other specifications :
Number of wires : 4
Number of plugs : 1
Number of pins : 4
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 25 A - 35 A / 300 W - 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
