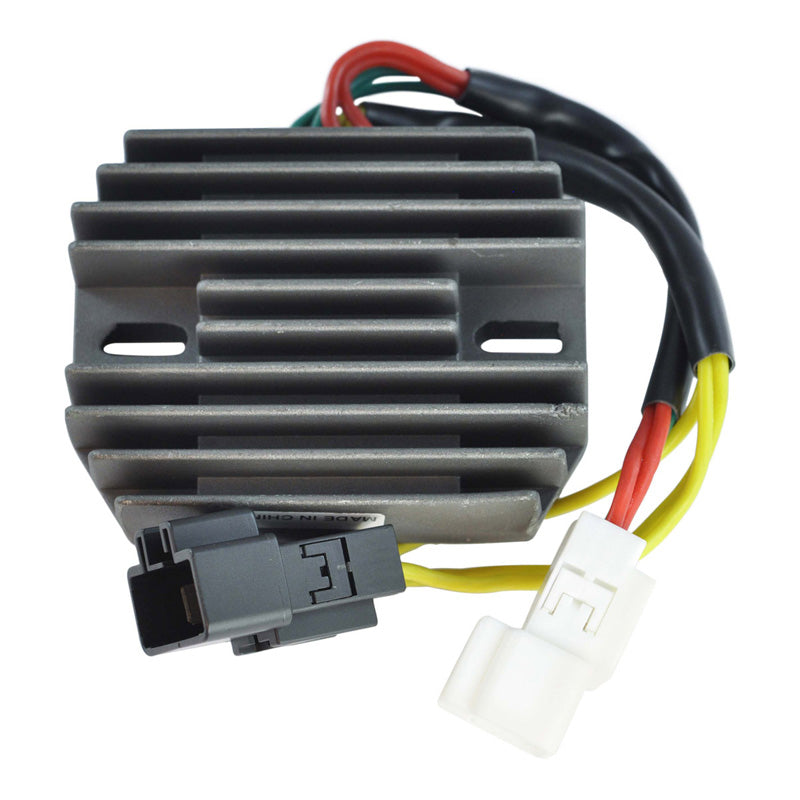

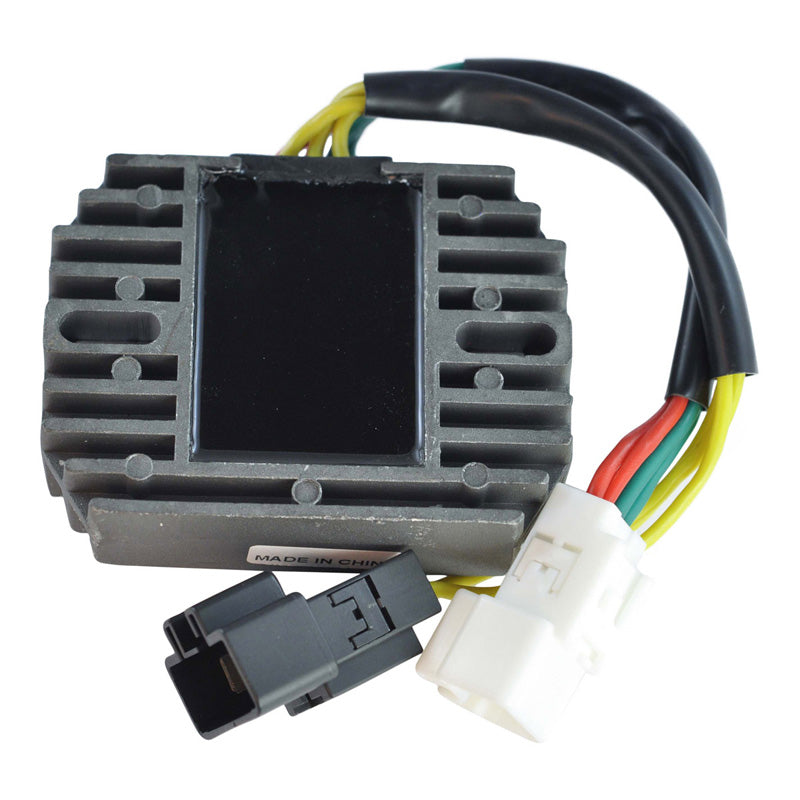

RMS REGULATOR HON CBR600/1000RR 04-12 RM30409

Brand new Voltage Regulator Rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The Quality exceeds the OEM equipment

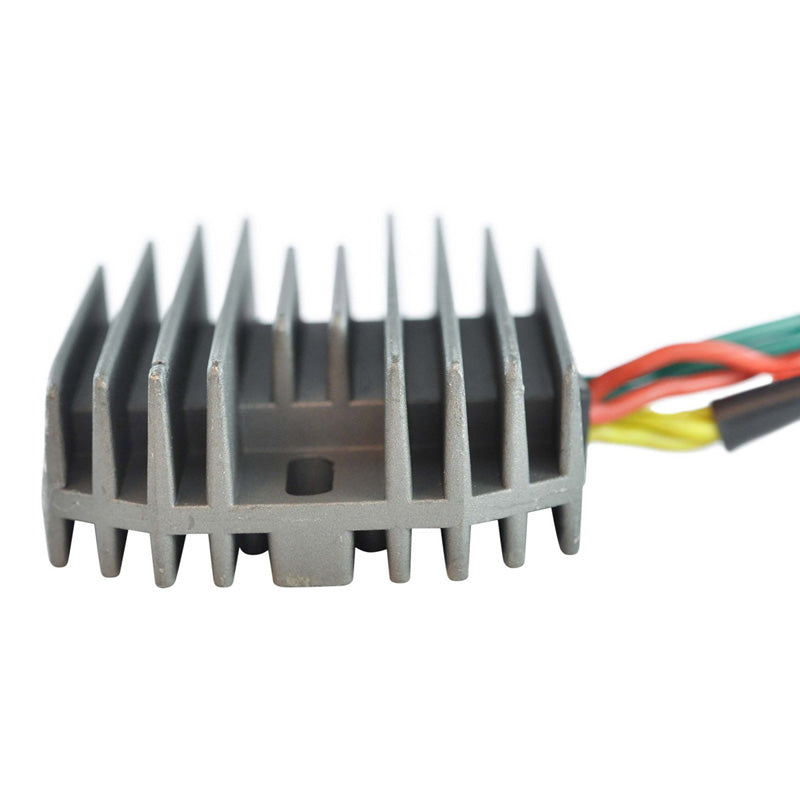

• Improved heat sink and charging capabilities
• Higher grade of electric components.
• All products shipped are tested

Please Note: There are TWO possible regulators for the Honda VTX 1800

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions :
Width : 80 mm
Length : 90 mm
Height: 27 mm
Fixation holes center to center : 65 mm
Wires length: 260 mm and 200 mm

Other specifications :

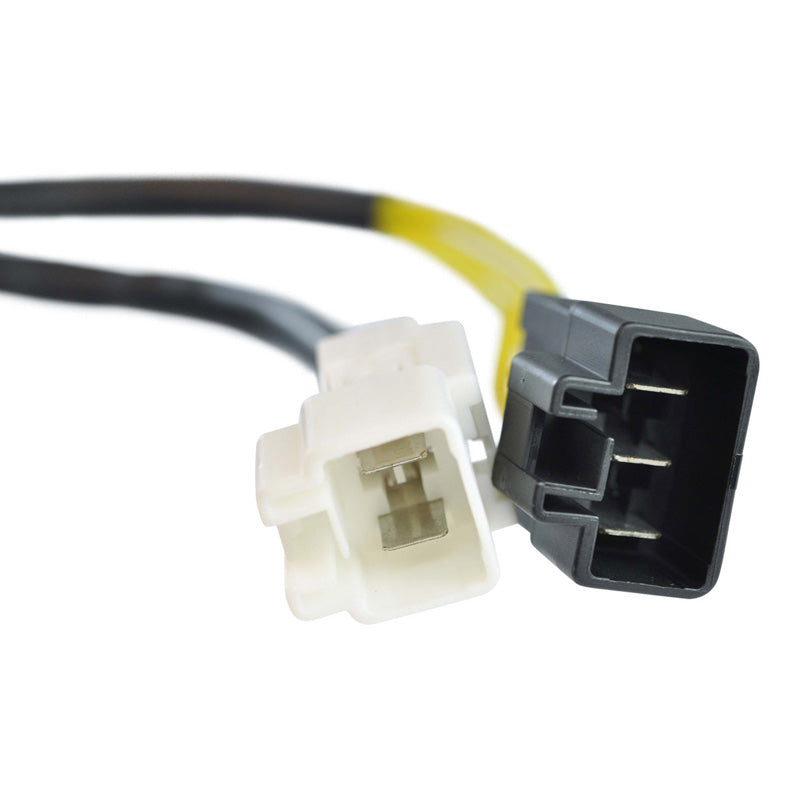

Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 25 A - 35 A / 300 W - 500 W
Open Circuit Voltage: <15 V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
