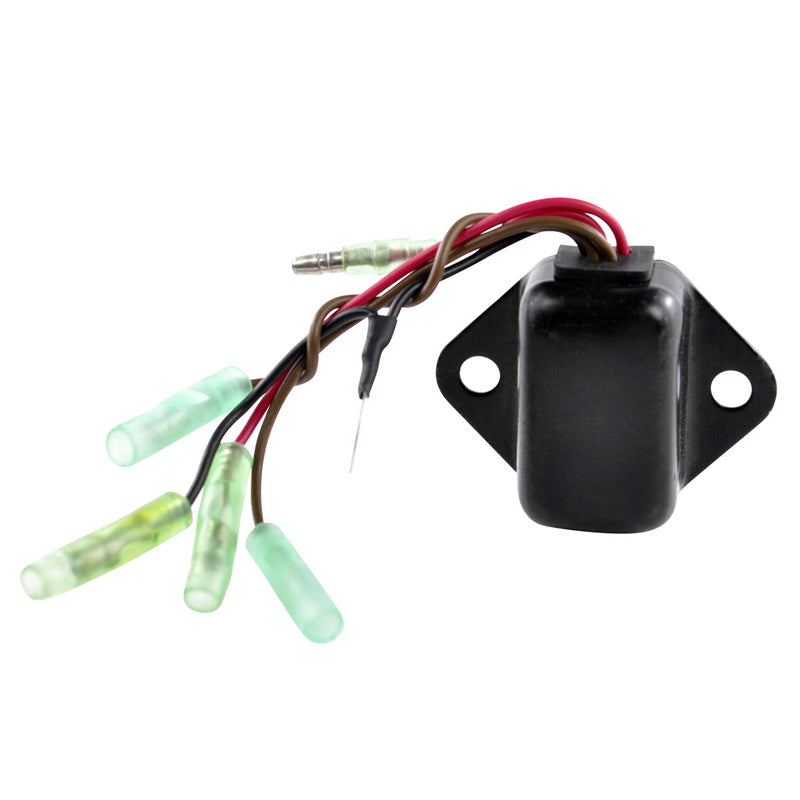

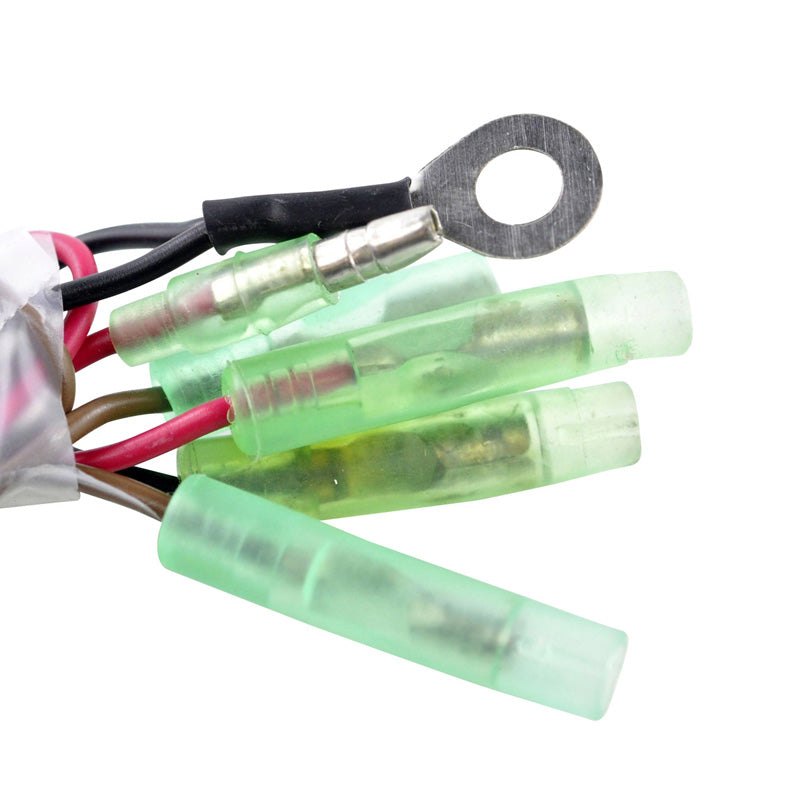

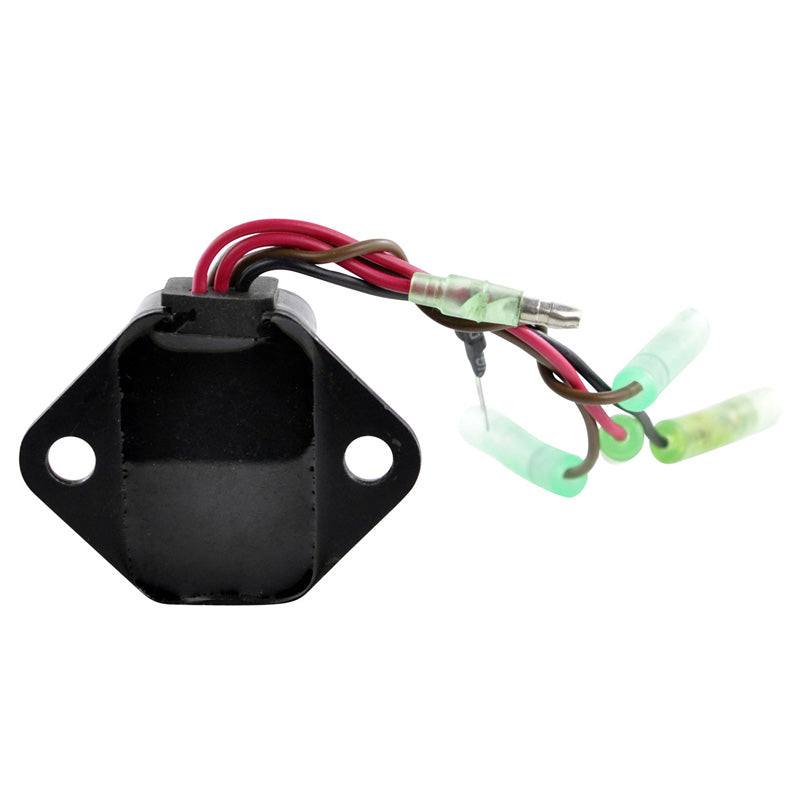

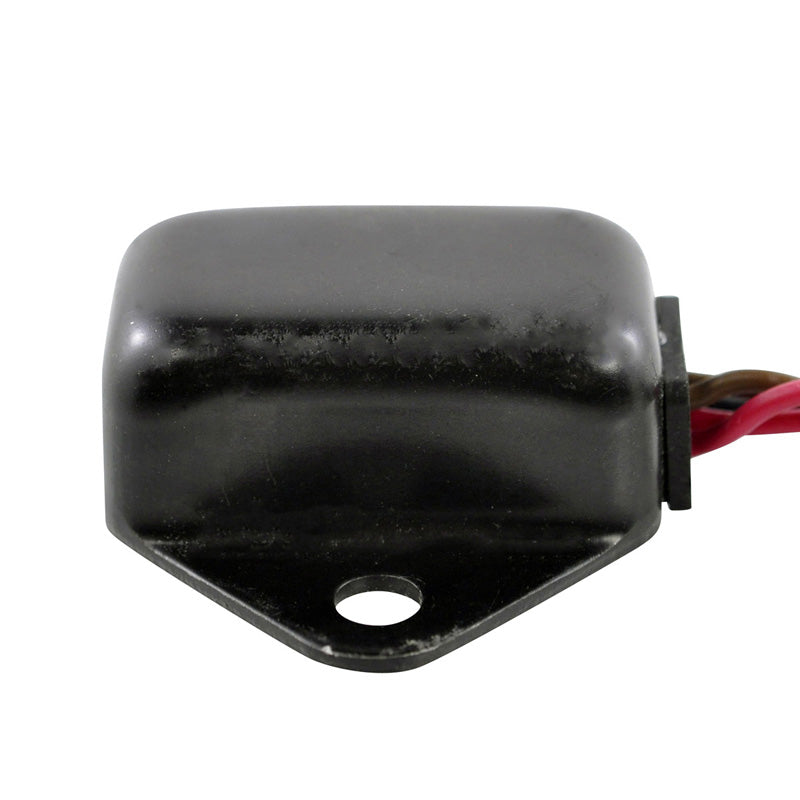

RMS REGULATOR KAW PWC 650 SX JS650|650 X2 JF650 88-91 RMS020-102627

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
Width: 47 mm
Length: 60 mm
Height: 20 mm
Wires length: 96, 77, 88, 88, 71, 80 mm
Fixation holes center to center: 45 mm

Other specifications:
Number of pins: 6
Number of wires: 6
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: 15V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
