RMS REGULATOR KUBOTA RTV500 08-17|JOHN DEERE TRACTOR RMS020-102842

RMS REGULATOR KUBOTA RTV500 08-17|JOHN DEERE TRACTOR RMS020-102842

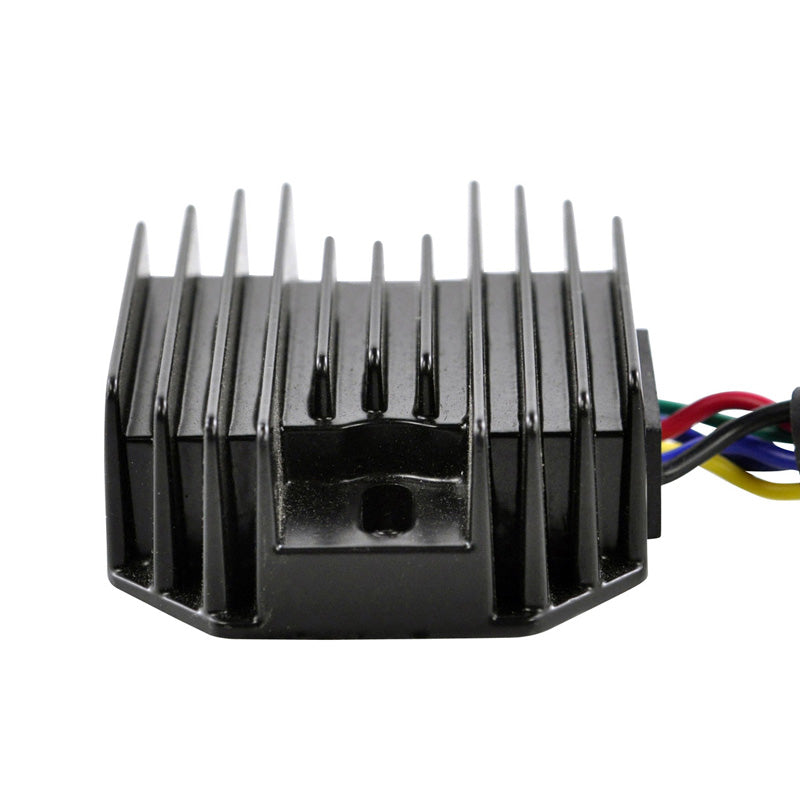

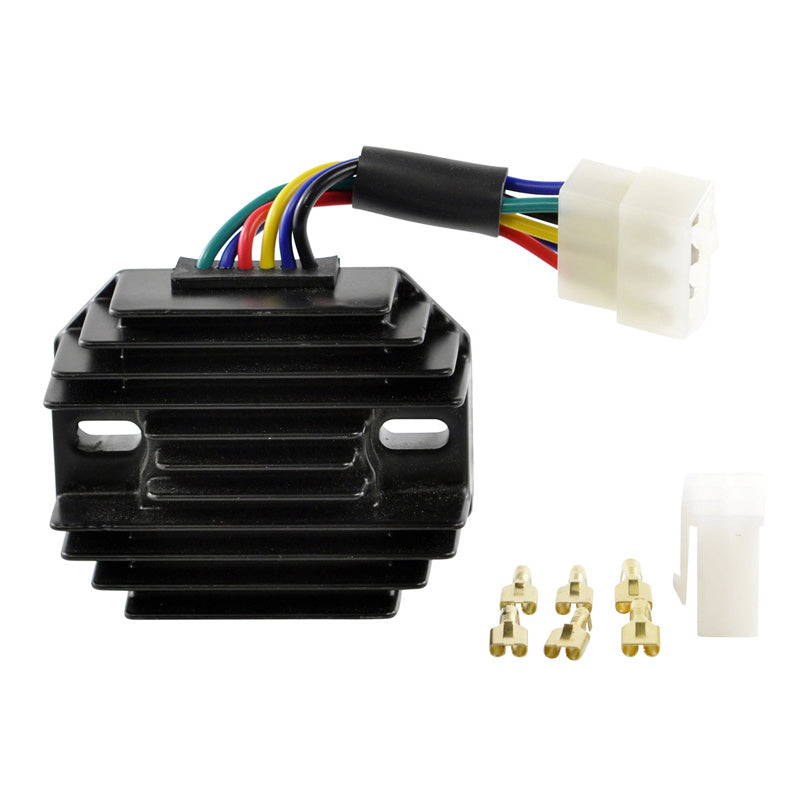

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

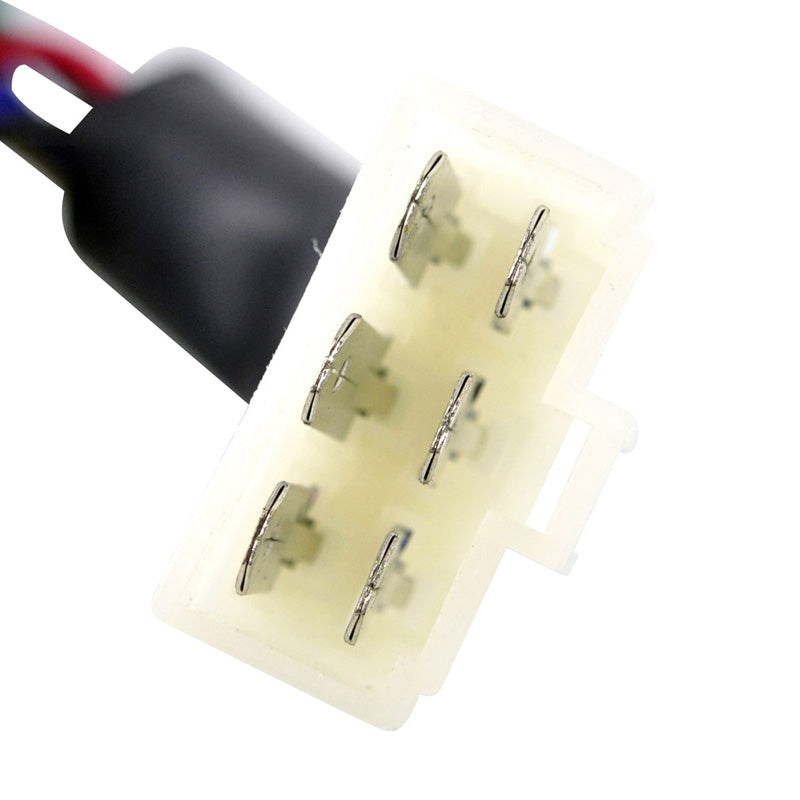

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
Width: 68 mm
Length: 83 mm
Height: 28 mm
Wires length: 70 mm

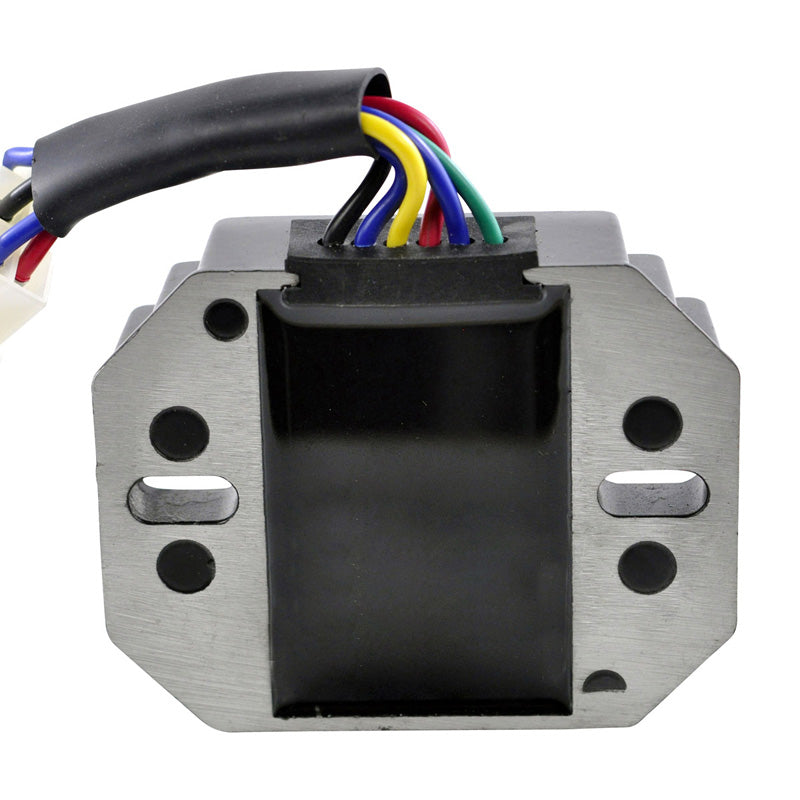

Fixation holes center to center: 60 mm

Other specifications:
Number of plugs: 1
Number of pins: 6
Number of wires: 6

Wire color and function:
(2) Blue Wires: Stator AC in
Red Wire: Battery +
Black Wire: Battery –
Yellow: Ignition switch +
Green: Low charge indicator light

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
