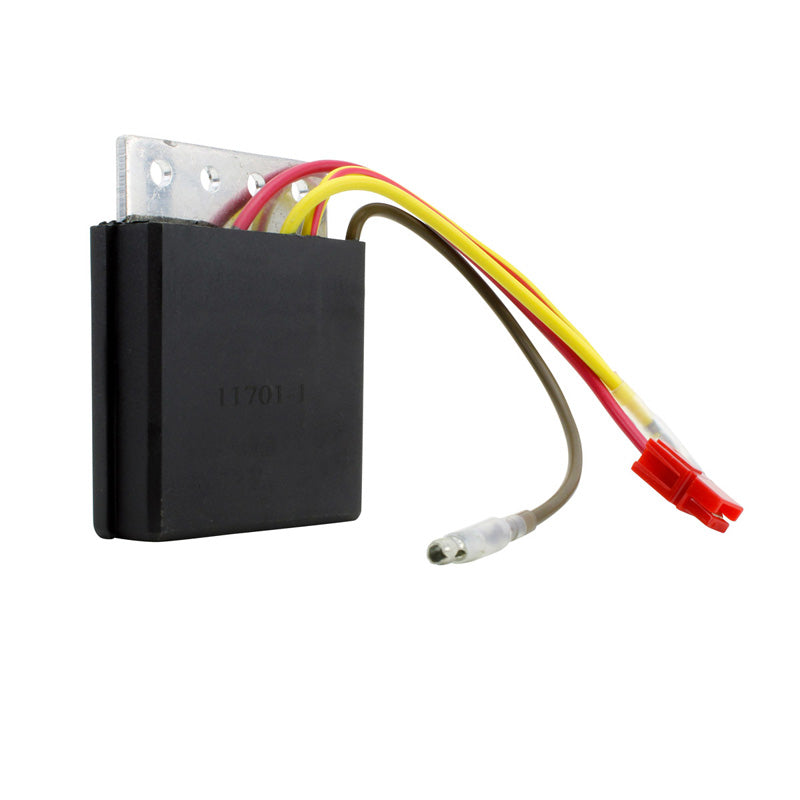

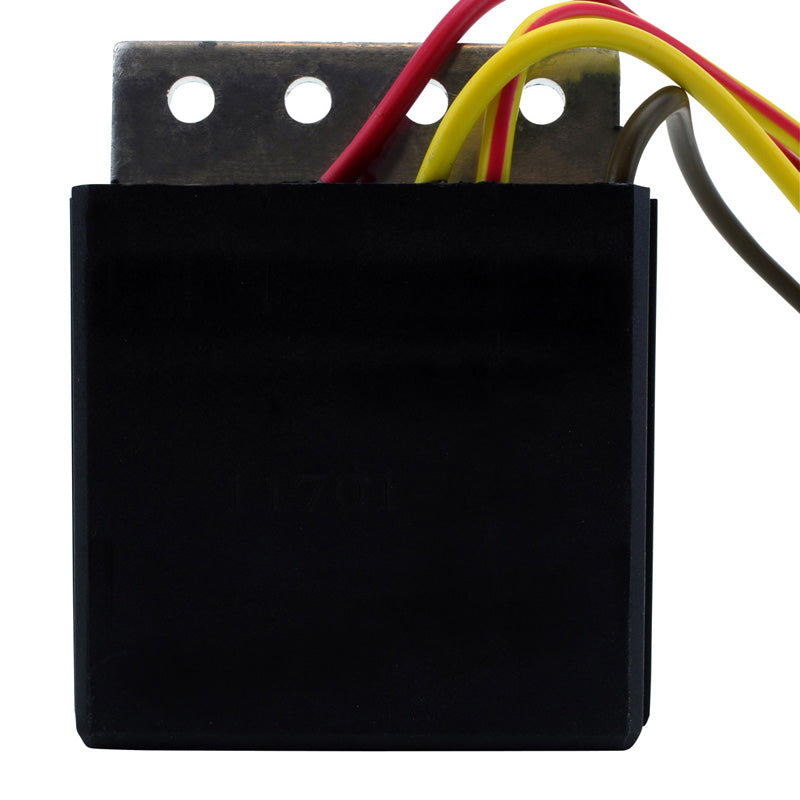

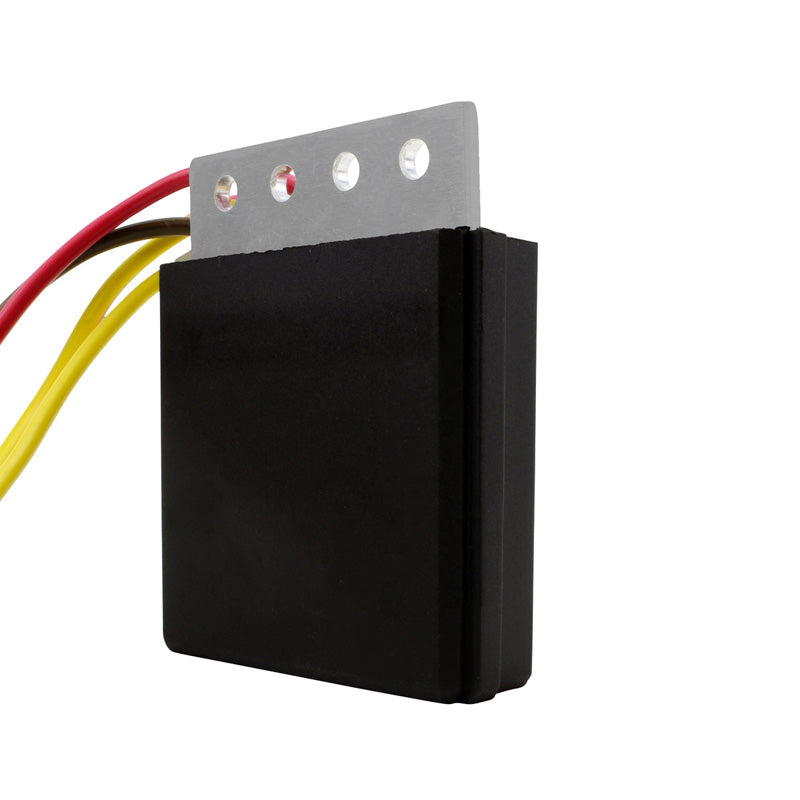

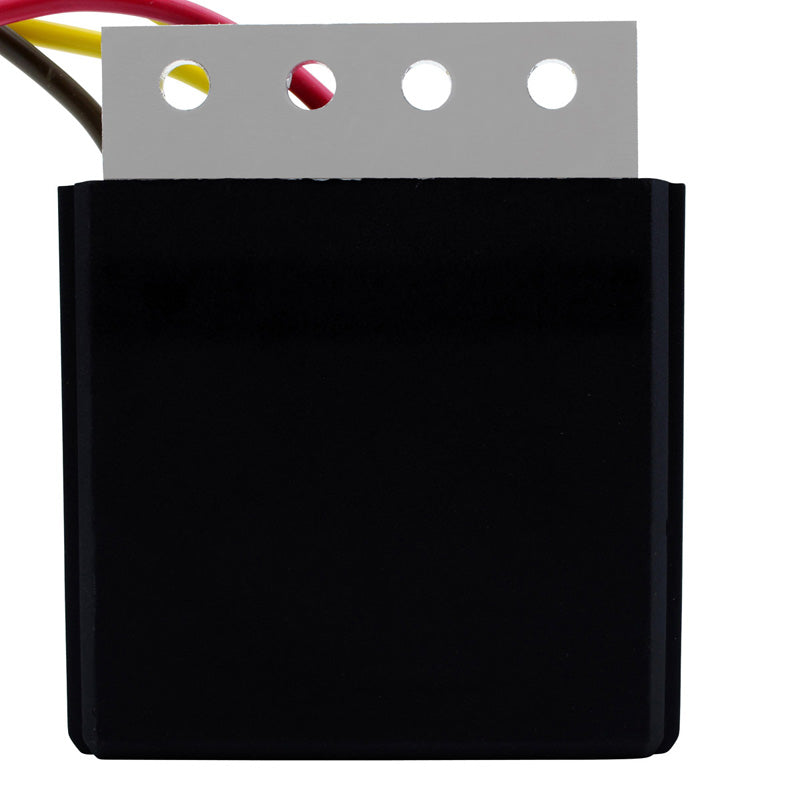

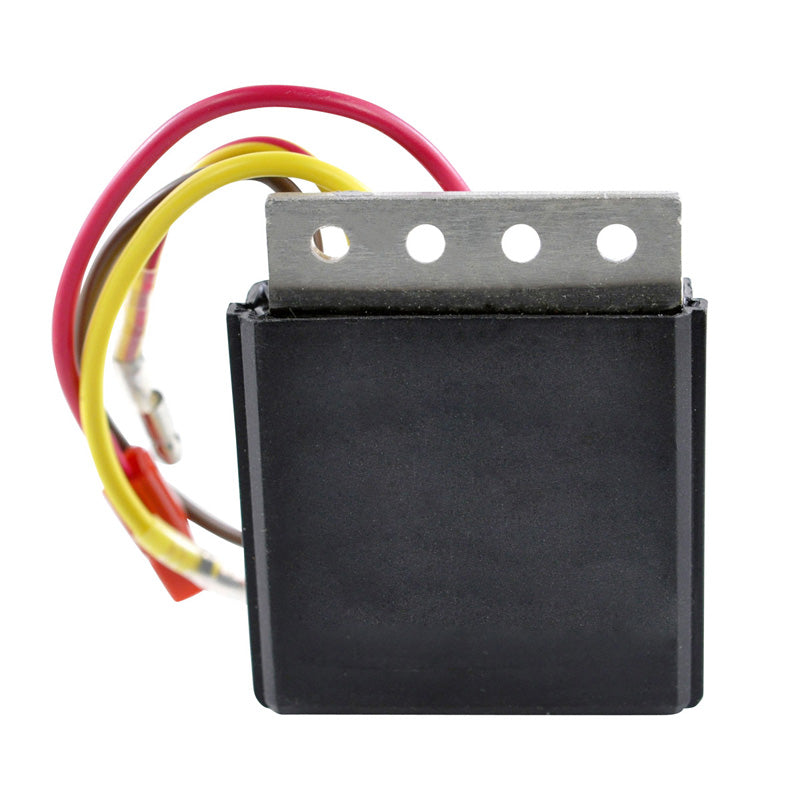

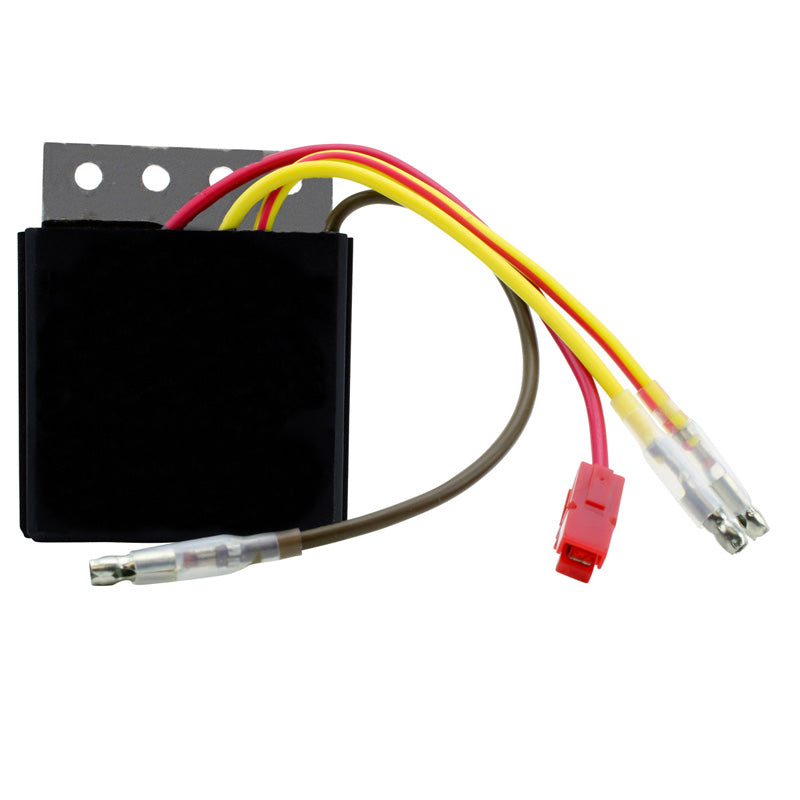

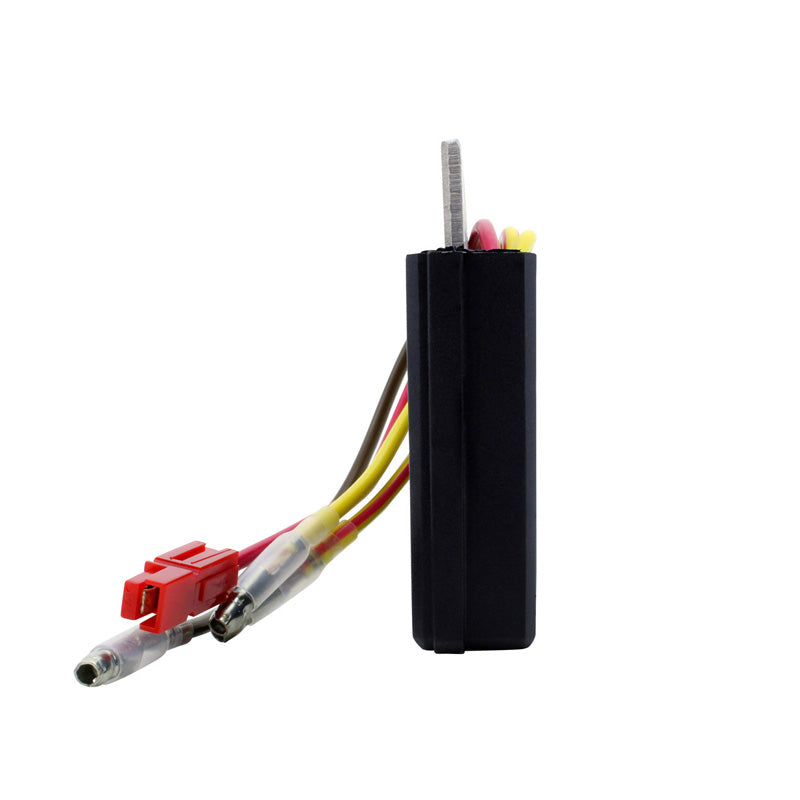

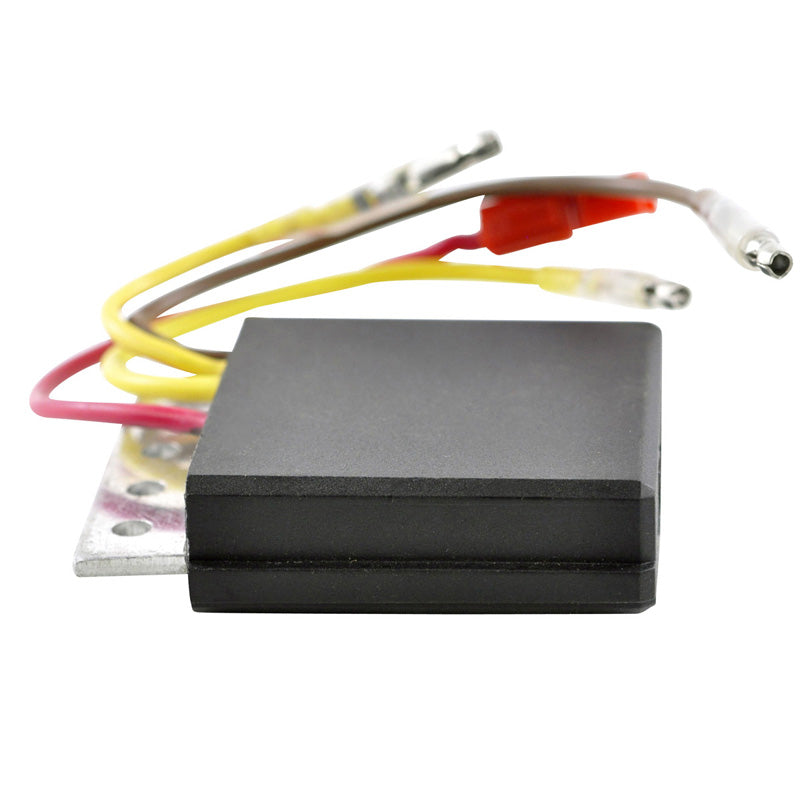

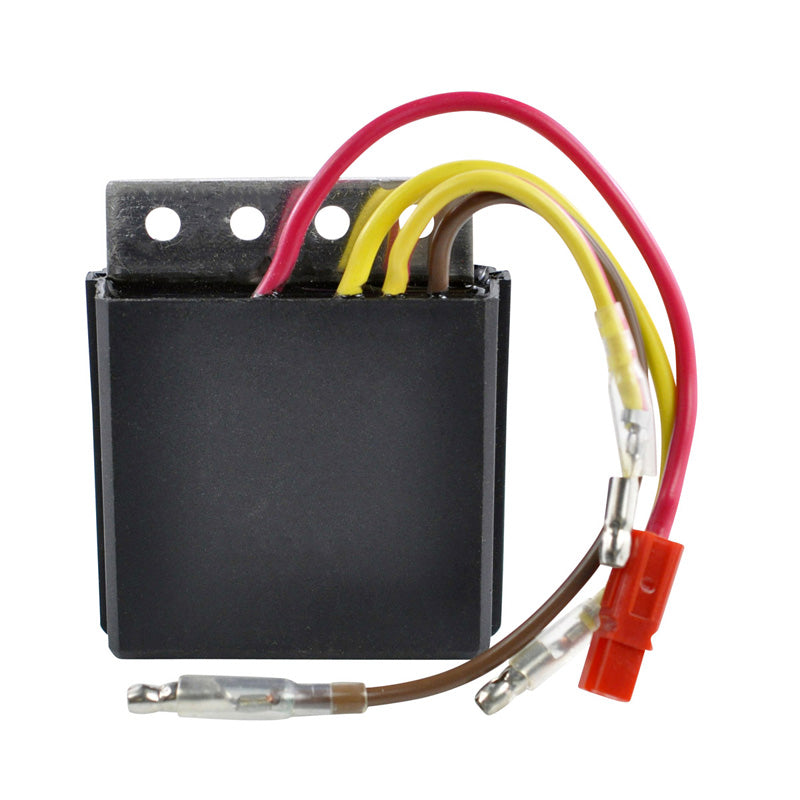

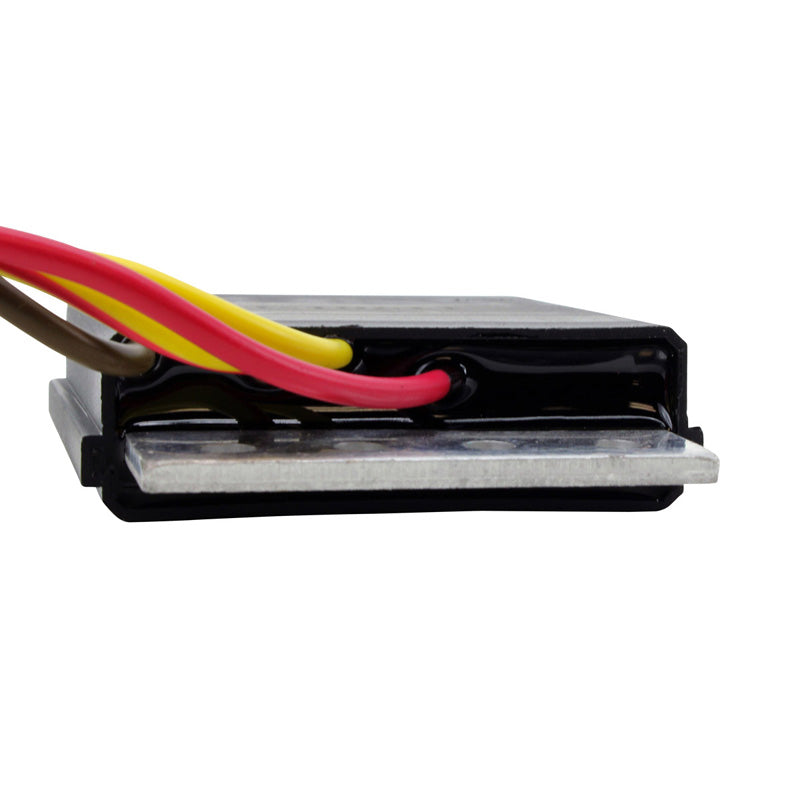

RMS REGULATOR POL SPORTSMAN|RANGER 400-700 03-04 RMS020-102594

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
Width: 63 mm
Length: 74 mm
Height: 17 mm

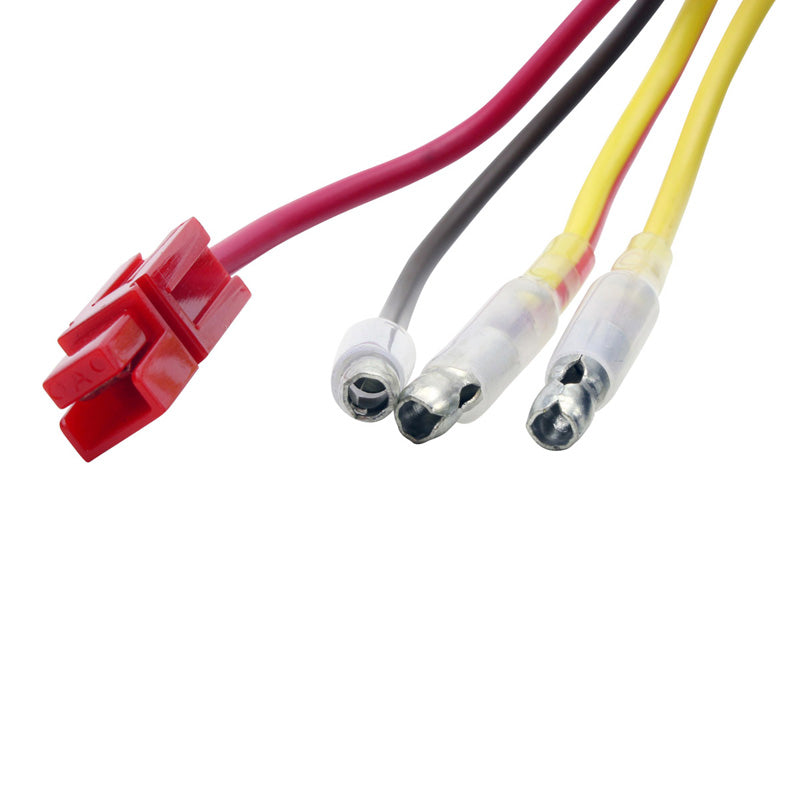

Wires length: 60, 95, 105 & 125 mm

Other specifications:

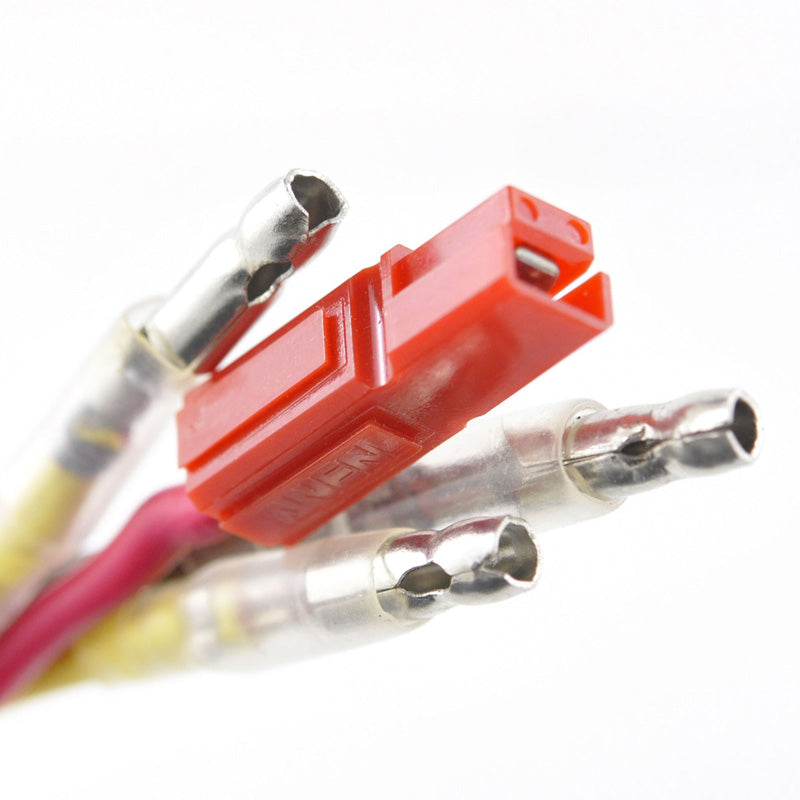

Number of plugs: 4
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: 15V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

There are two possible regulators for the Polaris Ranger 500 Series 11 2004. This regulator fits models built after 8/09/02 (LR-390).

There are two possible regulators for the Polaris Sportsman 600 and Sportsman 700 2004 models. This regulato
