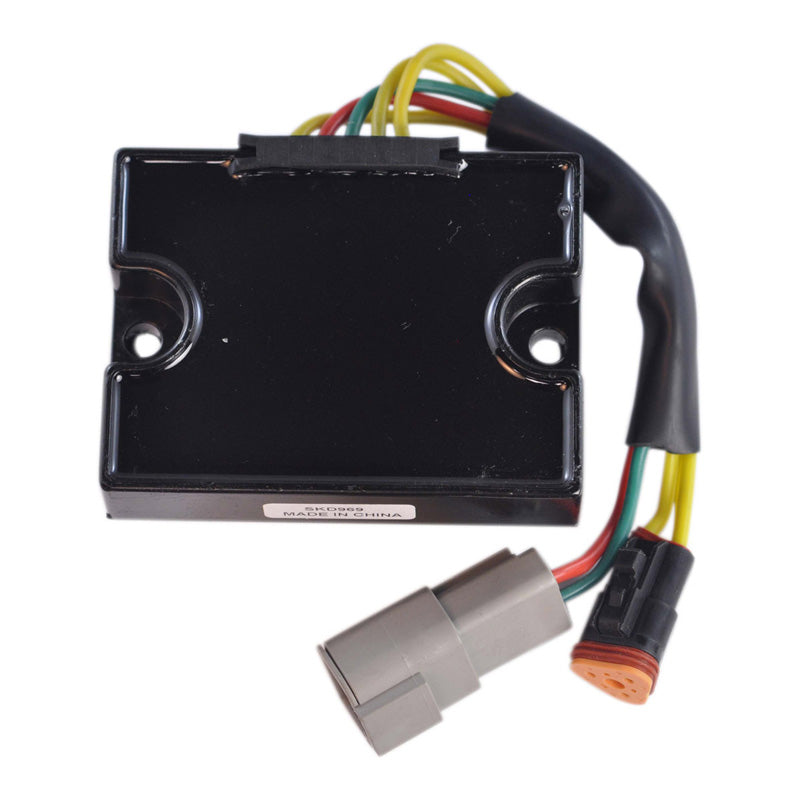

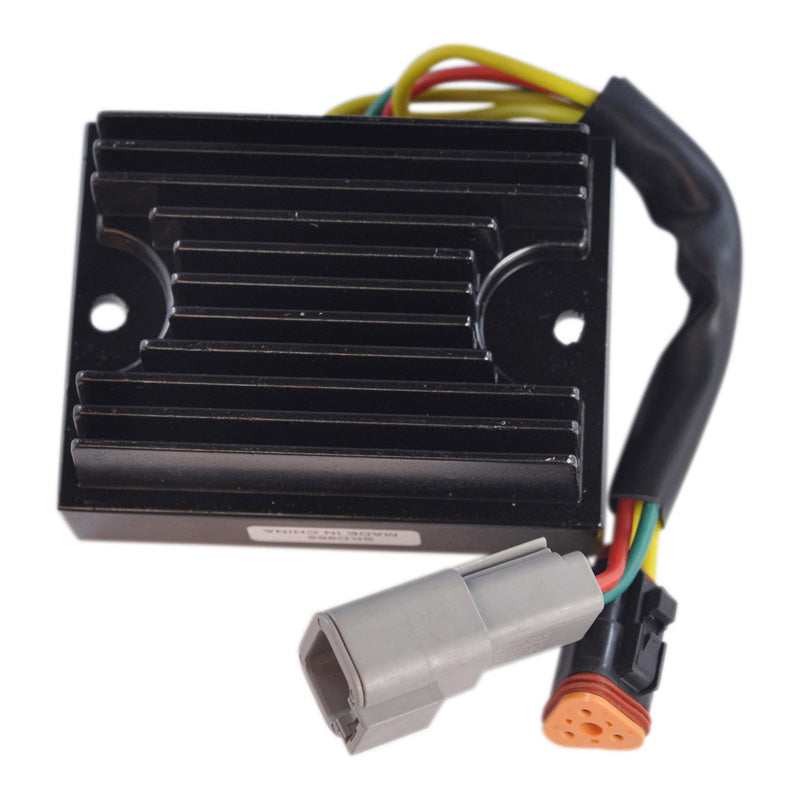

RMS REGULATOR SEA-DOO 180 230|150 200|3D|GTI 05-06 RM30Y06

Brand new aftermarket improved voltage regulator rectifier

• AC regulator rectifier
• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• The Quality exceeds the OEM equipment

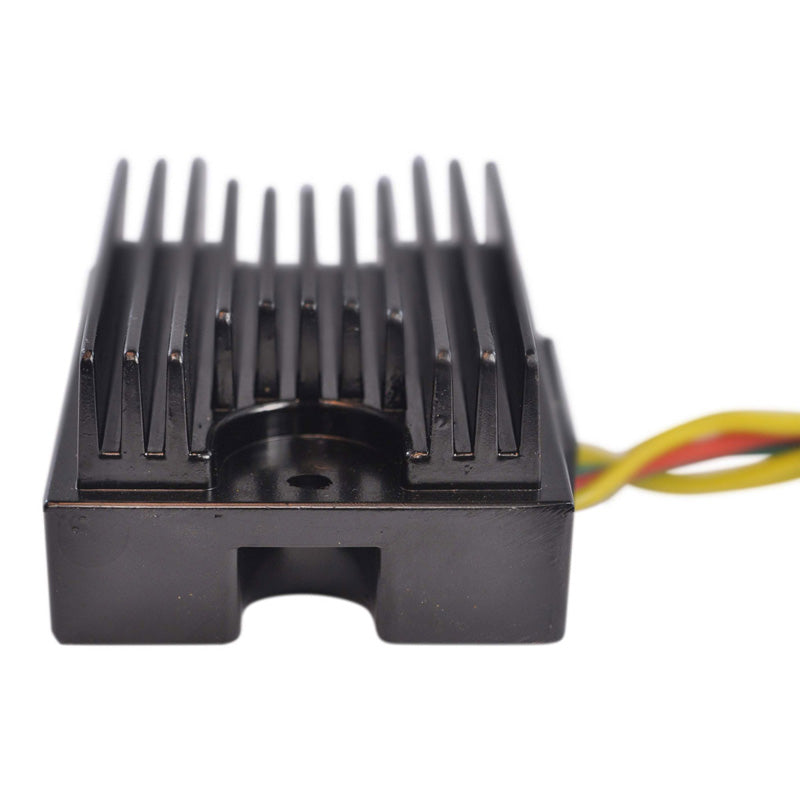

• Improved heat sink and charging capabilities
• Higher grade of electric components
• All products shipped are tested

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions :
Width : 95 mm
Length : 75 mm
Height: 42 mm
Fixation holes center to center : 83 mm
Wires length: 280 mm

Other specifications :

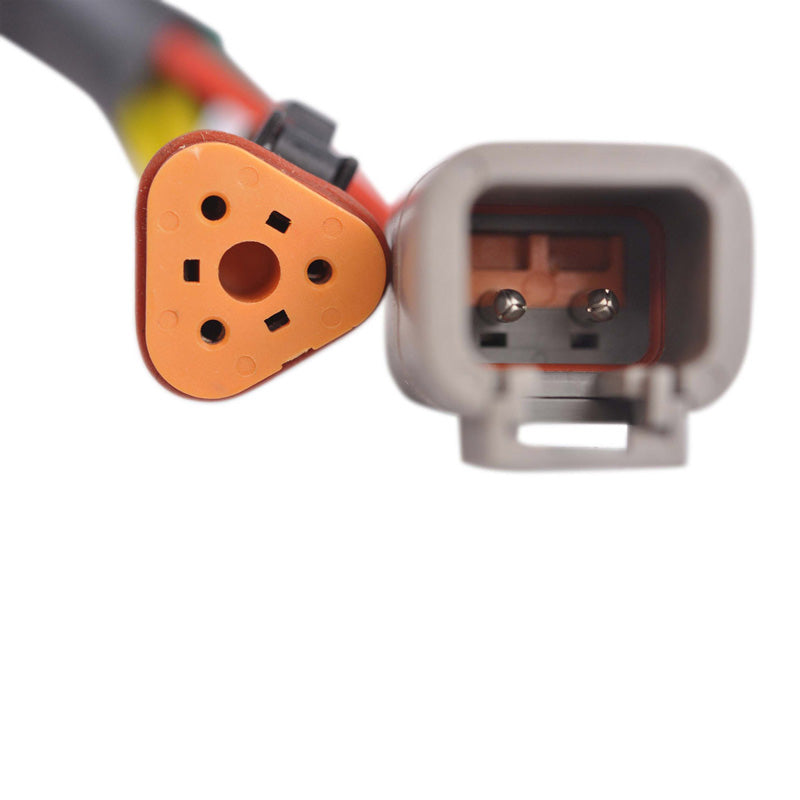

Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 25 A - 35 A / 300 W - 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
