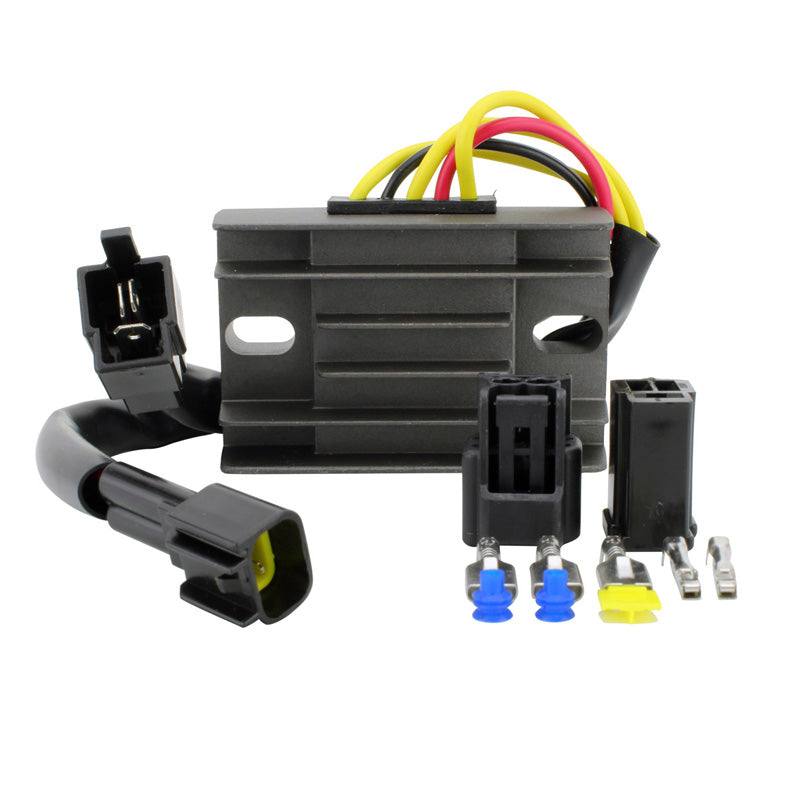

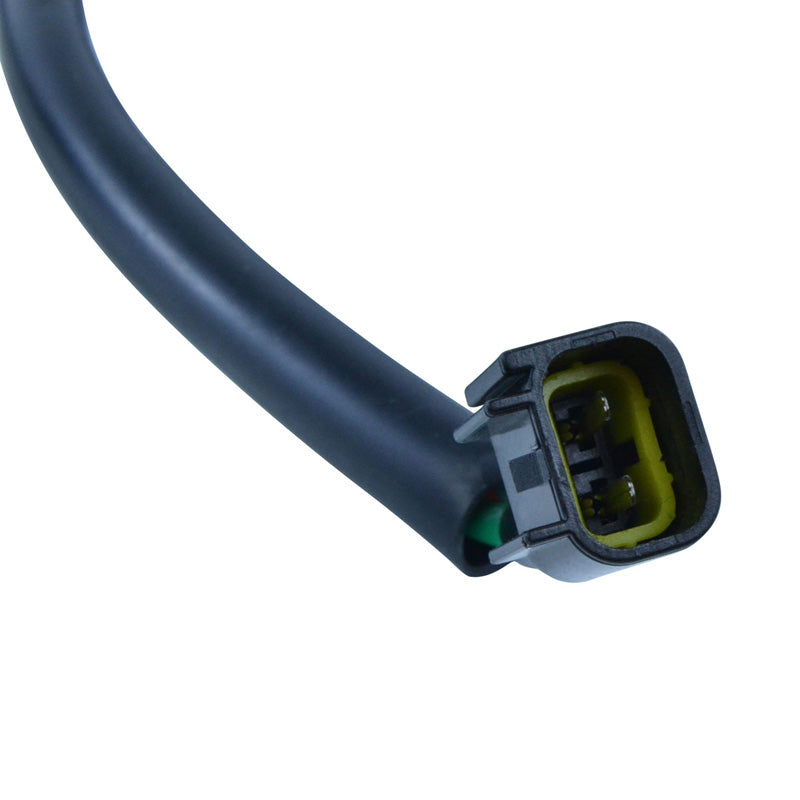

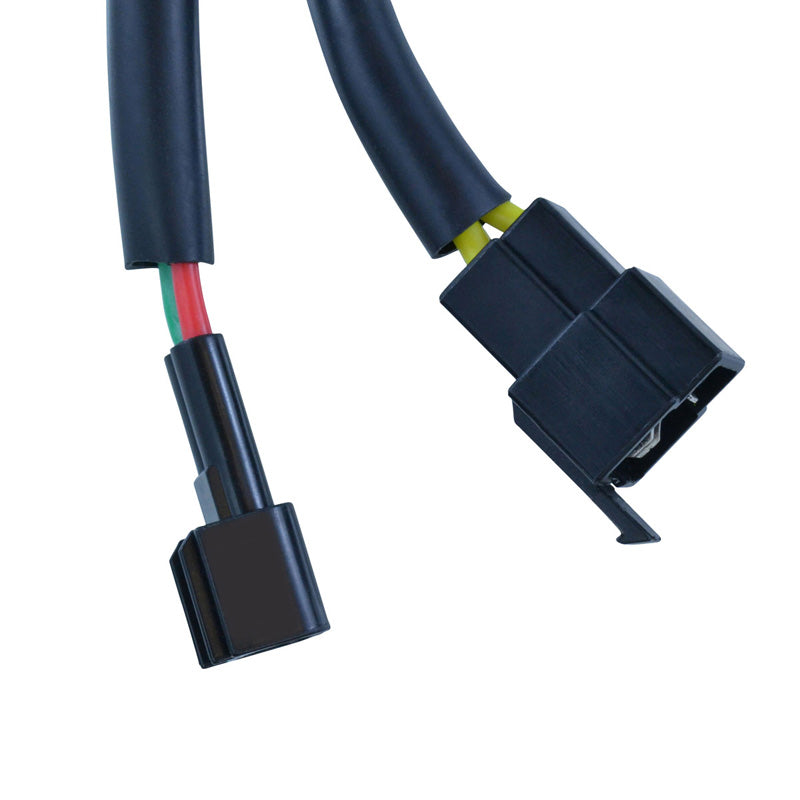

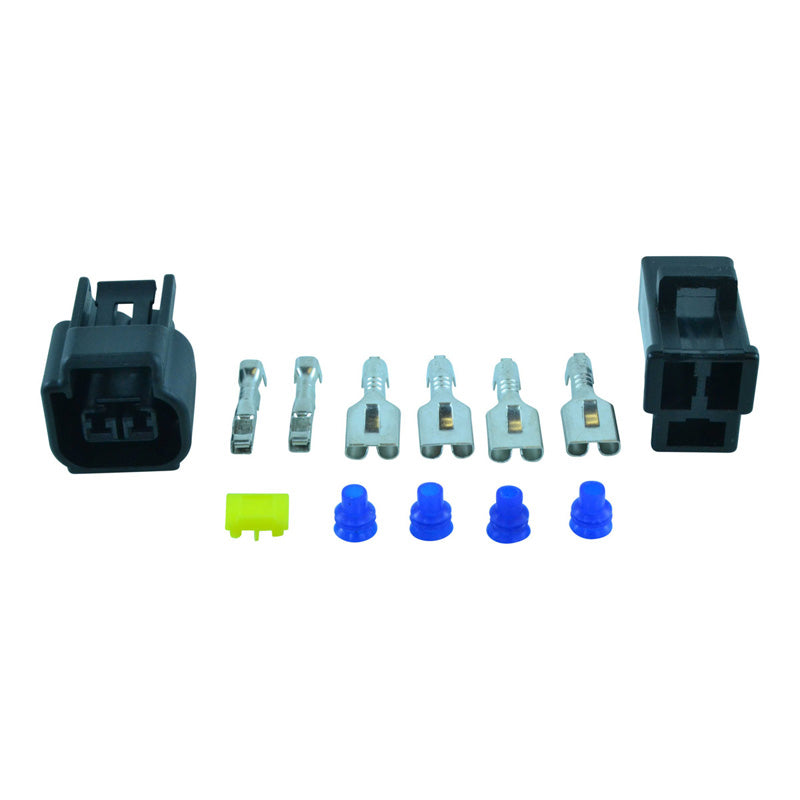

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

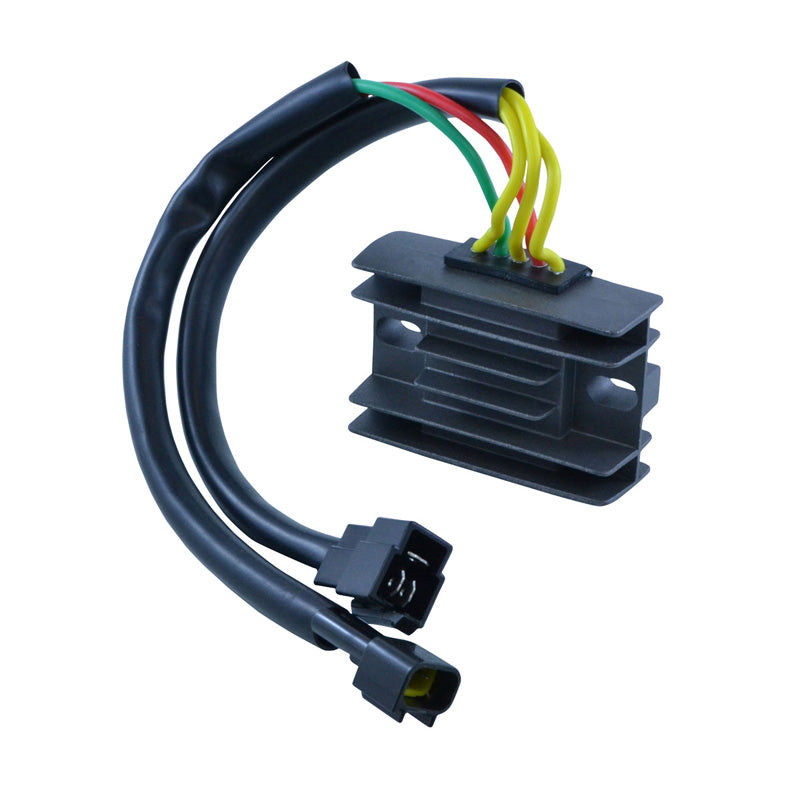

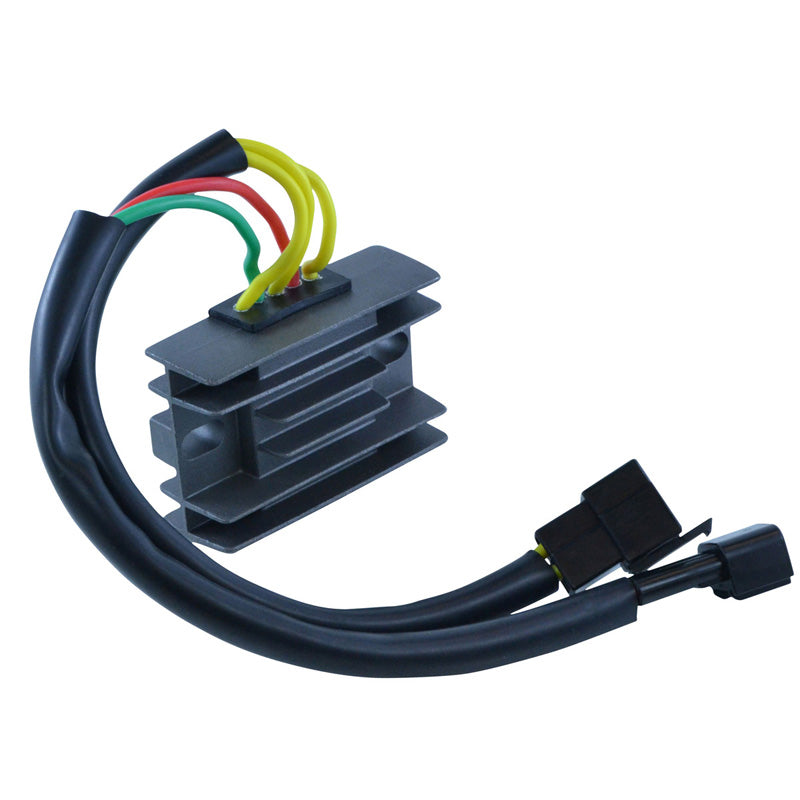

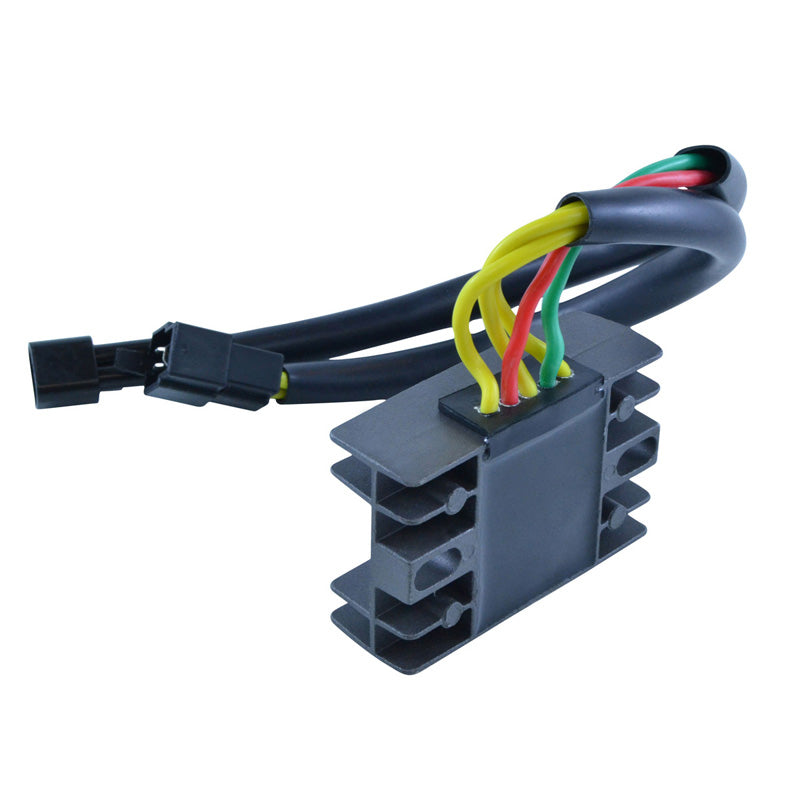

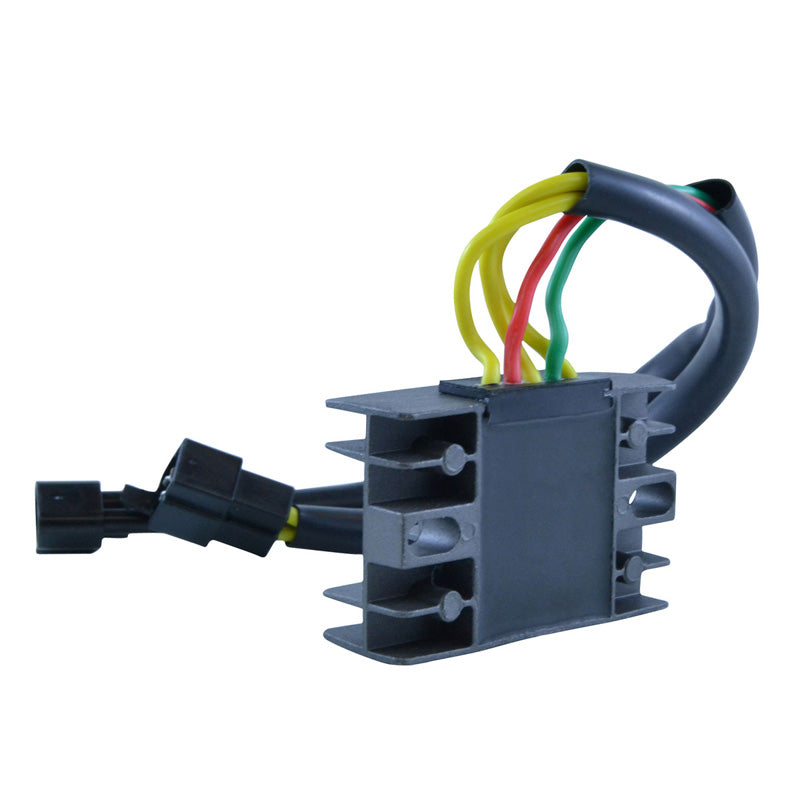

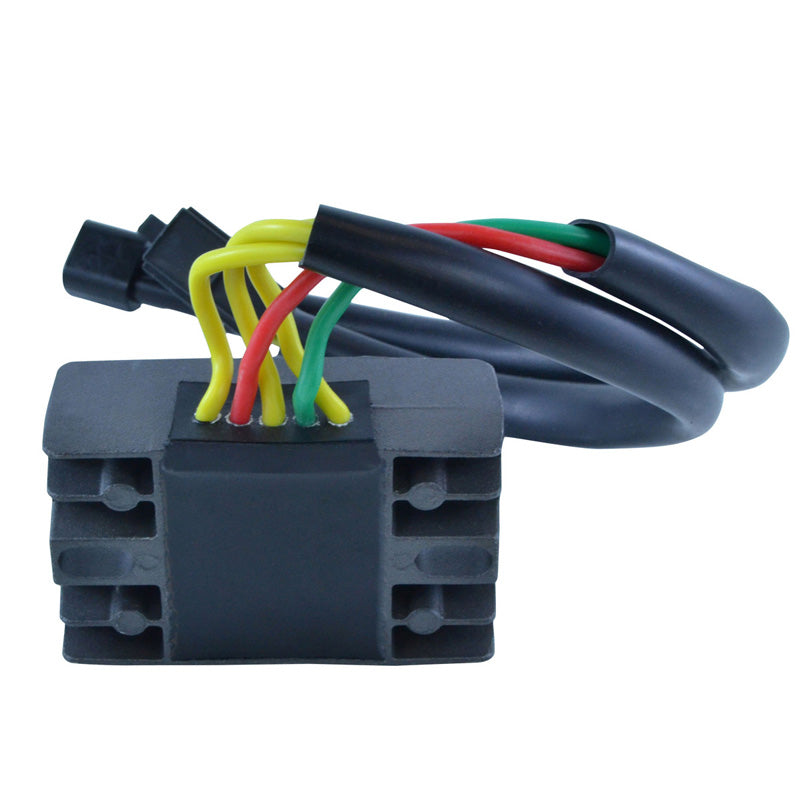

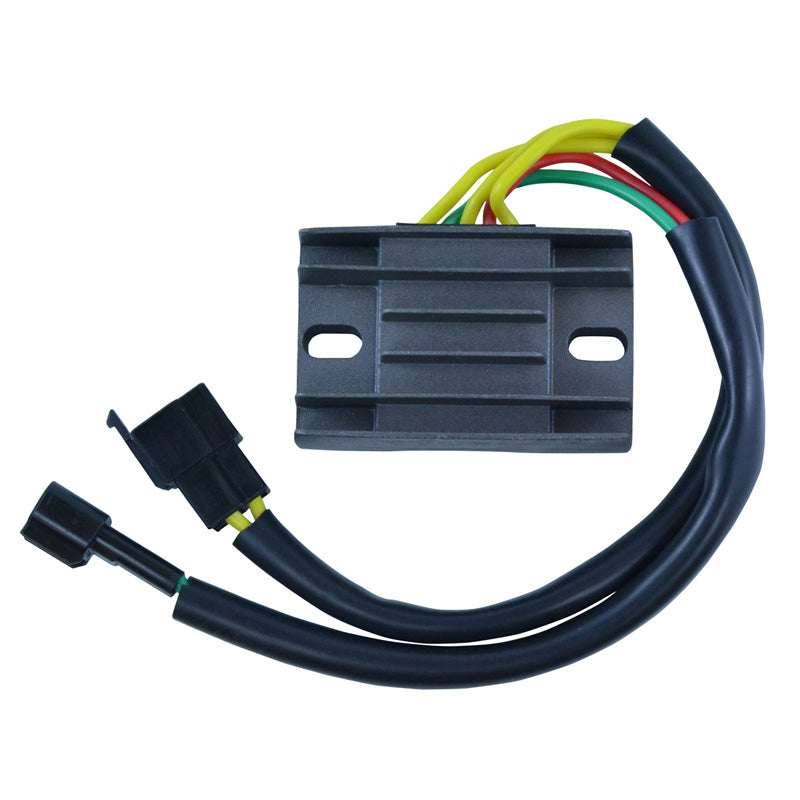

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Specifications:

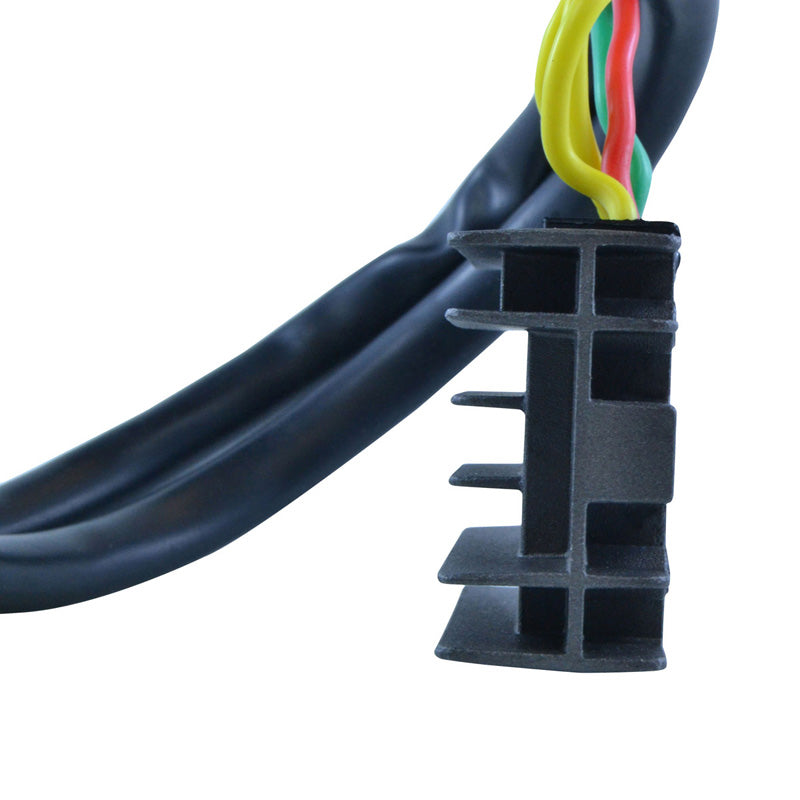

Dimensions:
Width: 75 mm
Length: 50 mm
Height: 28 mm
Wires length: 215 mm & 285 mm
Fixation holes center to center: 63 mm
Other specifications:

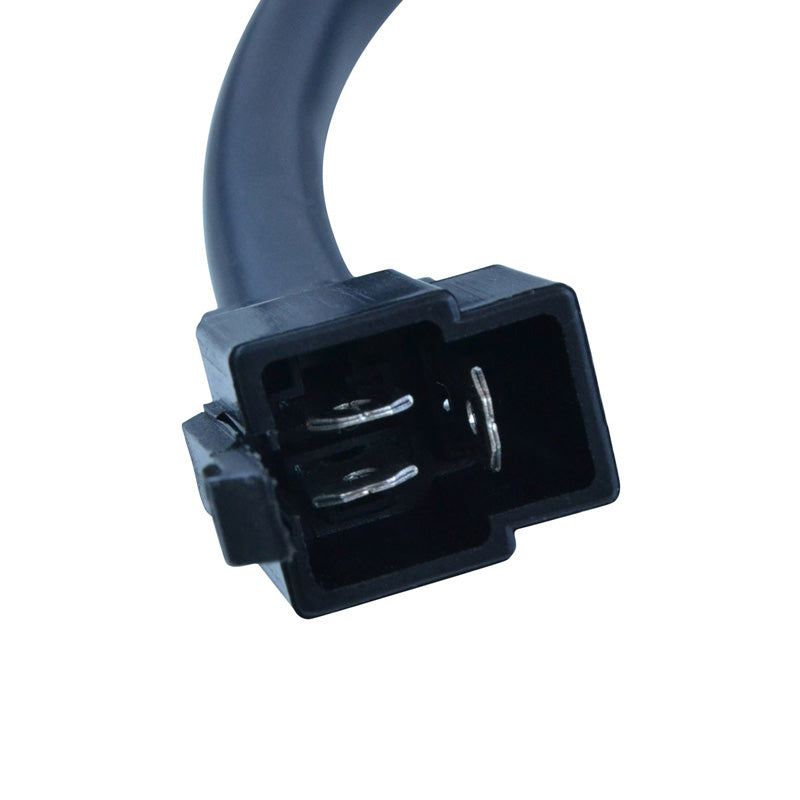

Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?
Warning:
Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
Fitment notice:
This regulator is for the Suzuki DR-Z400 E (electric start) 2000-2004 models. If you have a DR-Z400 (kick start) model for this year range, please use RMS020-107313
