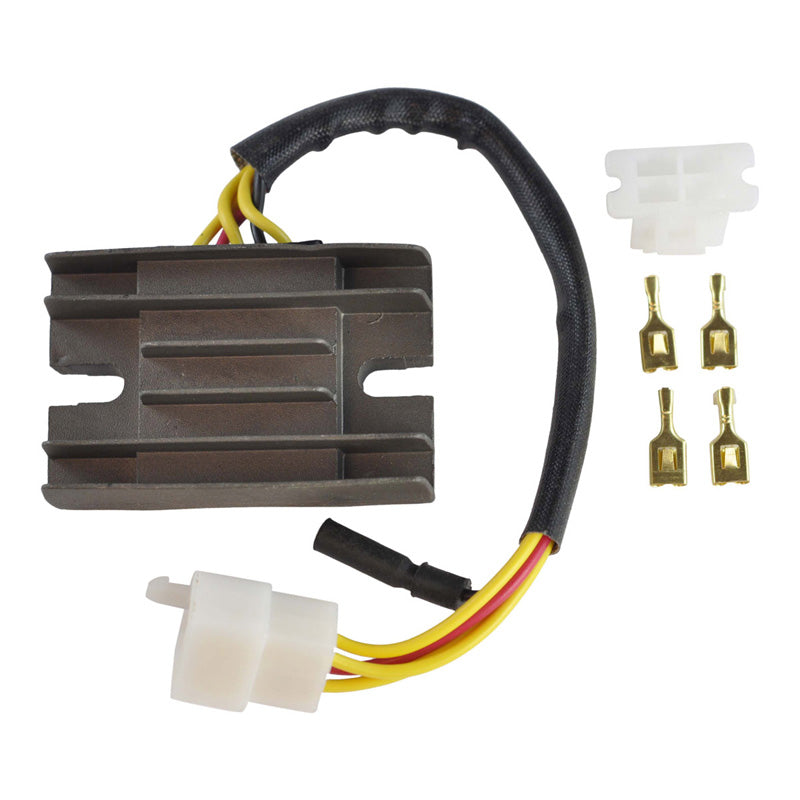

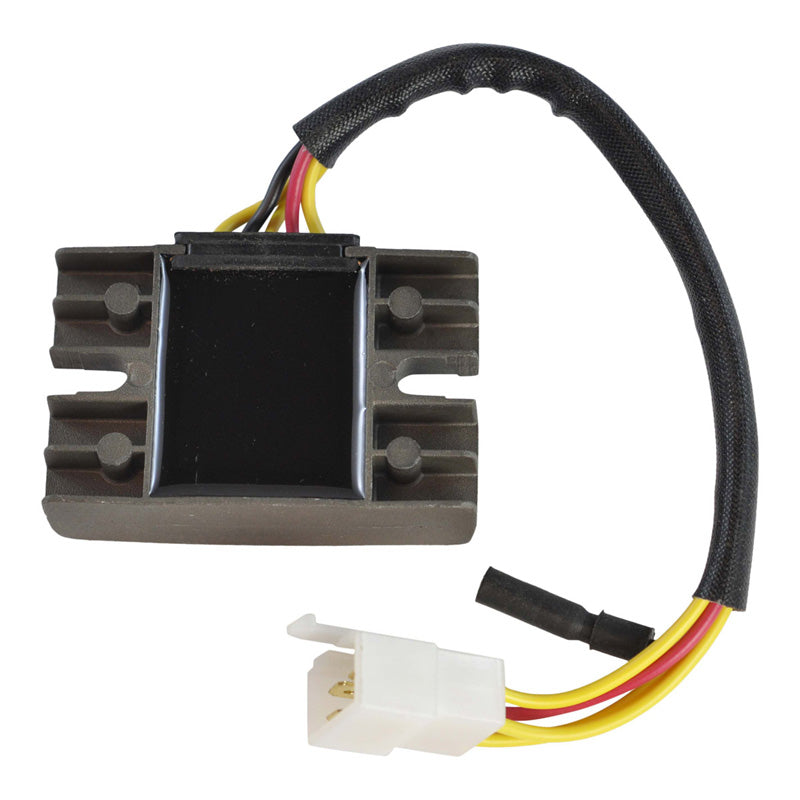

RMS REGULATOR SUZ LT230F|GR650|GS450-1100 81-93 RM30306

Brand new voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The Quality exceeds the OEM equipment

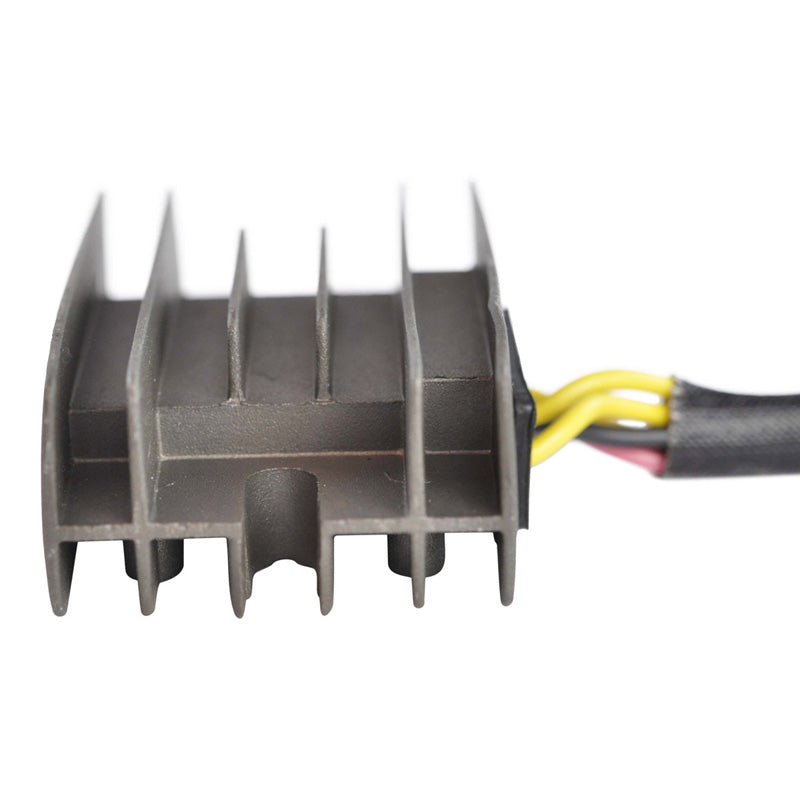

• Improved heat sink and charging capabilities
• Higher grade of electric components.
• All products shipped are tested

*All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions :
Width : 50mm
Length : 75mm
Height: 27mm
Fixation holes center to center : 60mm
Wires length: 200mm

Other specifications :

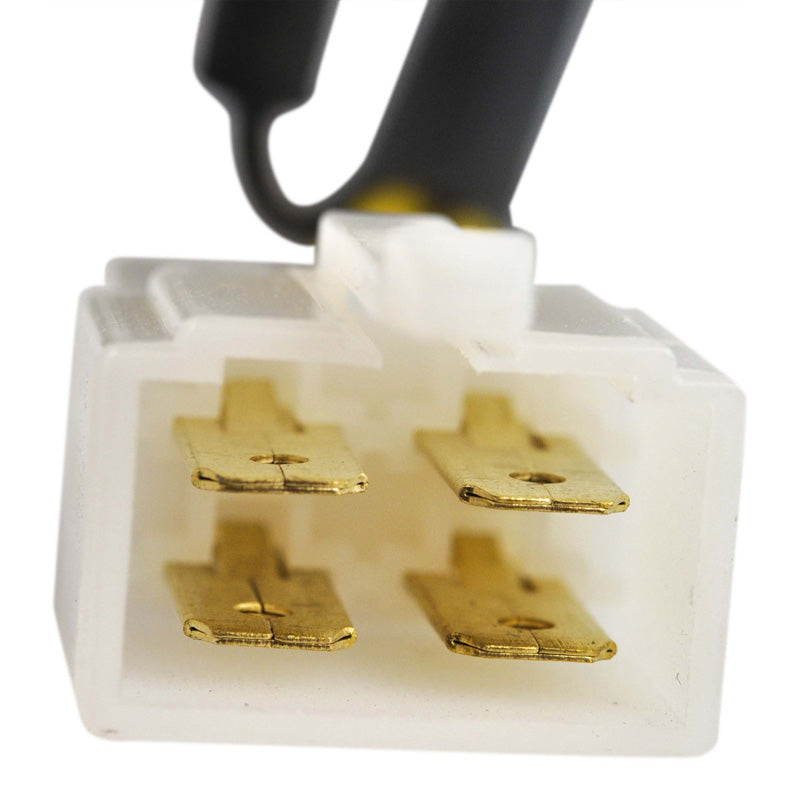

Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
